The processing of clay minerals presents one of the most challenging scenarios in mineral grinding operations. Materials such as bentonite, kaolin, ball clay, and other high-plasticity clays possess inherent properties that make them prone to causing severe clogging and buildup within grinding mills. This not only reduces operational efficiency but also leads to increased maintenance costs, production downtime, and inconsistent product quality. Understanding the root causes of these challenges and implementing effective solutions is crucial for maintaining optimal grinding performance.
Sticky clays present unique challenges due to their physical and chemical properties. These materials typically contain high percentages of montmorillonite, illite, or kaolinite minerals that exhibit plate-like structures with large surface areas. When subjected to mechanical forces during grinding, these platelets create cohesive bonds through van der Waals forces and hydrogen bonding. The presence of moisture further exacerbates the situation by forming water bridges between particles, creating a viscous, adhesive mass that readily adheres to mill surfaces.
The problematic behavior of sticky clays manifests in several ways:
Historically, operations dealing with sticky clays have employed various strategies to mitigate clogging issues, each with significant limitations:
Pre-drying: Reducing moisture content before grinding can help, but this adds an extra processing step, increases energy costs, and may alter the clay’s properties in undesirable ways for certain applications.
Additives and grinding aids: Chemical additives can reduce adhesion, but they introduce potential contamination, increase operational costs, and may not be suitable for products requiring high purity.
Frequent shutdowns for cleaning: While necessary, this approach results in significant production losses and increased labor costs.
Reduced throughput: Operating below design capacity reduces clogging frequency but severely impacts economic viability.
These traditional methods often represent compromises that sacrifice efficiency, economics, or product quality. A more fundamental solution lies in selecting grinding equipment specifically designed to handle challenging materials.
Modern grinding technology offers specialized approaches to overcome the challenges posed by sticky clays. The key lies in equipment design that minimizes surfaces where material can accumulate, incorporates effective self-cleaning mechanisms, and provides optimal airflow for moisture management.

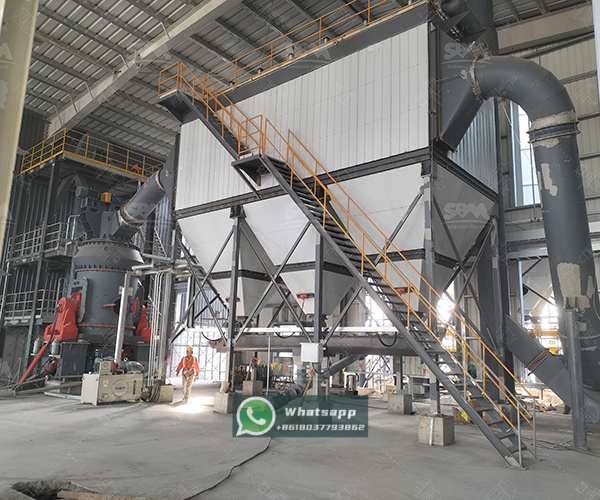

Shanghai Zenith Machinery Co., Ltd., an excellent manufacturer of ore grinding equipment with great achievements in ultra-fine powder grinding, offers the LM Vertical Grinding Mill as an ideal solution for processing sticky clay materials. This mill integrates five functions—crushing, grinding, powder selection, drying, and material conveying—into a single compact unit.
The vertical design inherently addresses many clogging issues associated with sticky clays:
| Model | Plate diameter (mm) | Capacity (t/h) | Output fineness (μm) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
The LM Vertical Grinding Mill’s design specifically addresses the challenges of cohesive materials through several innovative features. The grinding roller and grinding plate never make direct metallic contact, thanks to the bed of material between them, which significantly reduces wear. The hydro-pneumatic spring system maintains optimal grinding pressure even as material characteristics change, ensuring consistent performance with variable clay compositions.
For operations requiring ultrafine clay products, Zenith’s LUM Ultrafine Vertical Mill represents the cutting edge in grinding technology. This mill integrates grinding, drying, classifying, and transportation in a single compact unit, making it particularly suitable for high-value clay applications where product consistency and purity are paramount.
The LUM series incorporates several advanced features that make it exceptionally resistant to clogging:
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
Regardless of equipment selection, implementing proper operational practices significantly enhances performance when processing sticky clays:
Moisture Control: Maintain consistent feed moisture levels through proper raw material management. Even with mills capable of handling wet materials, consistency is key to stable operation.

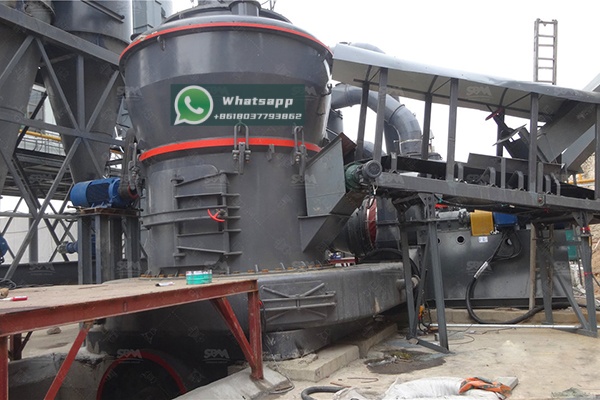

Feed Rate Optimization: Avoid overfeeding, which can overwhelm the mill’s capacity to efficiently transport material through the grinding zone. Modern control systems can automatically adjust feed rates based on motor load and other parameters.
Temperature Management: For mills with integrated drying, maintaining optimal gas temperatures helps manage stickiness without damaging clay structure or properties.
Preventive Maintenance: Regular inspection and cleaning of critical areas, even with anti-clogging designs, prevents minor issues from developing into major problems.
Material Characterization: Thorough testing of clay properties before processing allows for equipment optimization and parameter adjustment specific to the material being processed.
Investing in appropriate grinding technology for sticky clays delivers significant economic advantages beyond simply avoiding operational headaches:
Reduced Downtime: Equipment designed to handle sticky materials experiences fewer clogging-related shutdowns, increasing overall equipment availability and production capacity.
Lower Maintenance Costs: Reduced buildup means less wear on components and decreased frequency of cleaning and replacement activities.
Energy Efficiency: Mills that efficiently process sticky materials without excessive buildup operate with lower specific energy consumption per ton of product.
Product Quality Consistency: Stable operation without frequent interruptions leads to more uniform product characteristics and fewer quality rejects.
Operational Flexibility: Equipment capable of handling challenging materials provides operations with the ability to process a wider range of clay types and qualities.
The challenge of mill clogging with sticky clays requires a comprehensive approach that combines appropriate equipment selection with optimized operational practices. Traditional grinding mills often struggle with these materials, leading to chronic operational issues and economic losses. Shanghai Zenith Machinery’s specialized grinding solutions, particularly the LM Vertical Grinding Mill and LUM Ultrafine Vertical Mill, offer engineered approaches that directly address the root causes of clay-related clogging problems.
By incorporating designs that minimize adhesion surfaces, facilitate material transport through gravity assistance, integrate drying capabilities, and provide immediate product removal, these mills transform what is typically a problematic process into a stable, efficient operation. The result is increased productivity, reduced maintenance requirements, consistent product quality, and ultimately, improved profitability for operations processing challenging clay materials.
As clay processing requirements continue to evolve toward finer products and tighter specifications, the importance of selecting grinding equipment capable of handling these demanding applications will only increase. The advanced solutions from Zenith provide a pathway to meeting these challenges while maintaining operational efficiency and economic viability.
