In mineral processing and industrial grinding operations, inconsistent feed size represents one of the most significant challenges to operational efficiency, product quality, and equipment longevity. Variations in raw material dimensions can lead to uneven grinding, reduced throughput, increased energy consumption, and accelerated wear on critical components. This comprehensive analysis explores the root causes of inconsistent feed size and presents advanced technological solutions to mitigate these challenges.
Feed size inconsistency affects multiple aspects of grinding operations. When oversized materials enter the grinding chamber alongside properly sized particles, they require disproportionate energy to break down, creating bottlenecks in material flow. Conversely, excessive fines can lead to overgrinding, wasting energy and potentially altering the desired product characteristics. The consequences extend beyond immediate processing issues to include:
Modern grinding equipment incorporates sophisticated design features specifically engineered to handle feed size variations while maintaining consistent output quality. Shanghai Zenith Machinery Co., Ltd., as an excellent manufacturer of ore grinding equipment, has developed innovative solutions that address these challenges through intelligent engineering and advanced control systems.
The MTW Trapezium Grinding Mill represents a significant advancement in handling inconsistent feed sizes. With multiple patents and an eco-friendly design, this mill features a unique grinding curve and optimized internal airflow that automatically compensates for feed variations. The intelligent grinding system adjusts to different particle sizes, ensuring consistent output quality regardless of input fluctuations.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) |
|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 |
The MTW series incorporates curved surface shovels that feed materials more smoothly into the grinding zone, reducing the impact of size variations. The forced lubricating system ensures consistent performance even under challenging feed conditions, while the internal efficient separator provides precise classification regardless of input fluctuations.

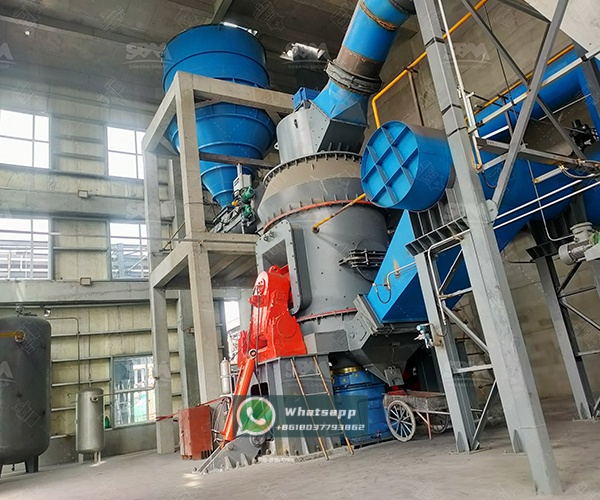

For operations requiring comprehensive feed size management, the LM Vertical Grinding Mill offers an integrated approach by combining five functions—crushing, grinding, powder selection, drying, and material conveying—into a single compact unit. This vertical configuration naturally accommodates size variations through its gravity-assisted material flow and adjustable grinding pressure.
| Model | Plate Diameter (mm) | Capacity (t/h) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|
| LM130K | 1300 | 10-28 | <38 | 200 |
| LM190K | 1900 | 23-68 | <45 | 500 |
| LM280K | 2800 | 50-170 | <50 | 1250 |
The LM Vertical Mill’s hydraulic system allows real-time adjustment of grinding pressure, automatically compensating for changes in feed size distribution. This ensures consistent grinding force is applied regardless of particle dimensions, maintaining stable operation and uniform product quality. The integrated drying capability further enhances its ability to handle moist materials that might otherwise cause feeding issues.
While advanced grinding equipment can handle significant feed variations, implementing proper pre-processing strategies further enhances operational stability. Effective approaches include:
When paired with Zenith’s advanced grinding equipment, these strategies create a comprehensive solution that virtually eliminates feed size-related operational issues.

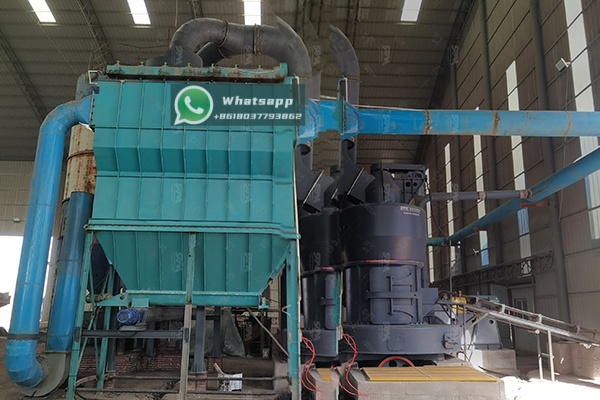

Modern grinding solutions incorporate sophisticated control systems that automatically adjust operational parameters in response to feed characteristics. These systems monitor power consumption, material flow rates, and pressure differentials to detect changes in feed size distribution, then make real-time adjustments to maintain optimal grinding conditions.
Zenith’s grinding mills feature these intelligent control capabilities, allowing them to maintain consistent product quality even with significant variations in feed size. The systems can be integrated with upstream equipment to provide comprehensive process optimization across the entire production line.
Implementing proper feed size management through advanced grinding technology delivers substantial economic benefits:
Solving the problem of inconsistent feed size requires both proper equipment selection and integrated process design. Shanghai Zenith Machinery’s advanced grinding solutions, particularly the MTW Trapezium Grinding Mill and LM Vertical Grinding Mill, provide the technological foundation for managing feed variations effectively. When combined with proper pre-processing strategies and intelligent control systems, these solutions enable operations to achieve consistent, efficient, and economical grinding performance regardless of feed characteristics.
The investment in appropriate grinding technology pays dividends through improved operational efficiency, reduced energy consumption, and superior product quality. By addressing feed size challenges at their source and implementing robust grinding solutions, operations can transform a potential problem into a competitive advantage.
