In the mineral processing and powder production industries, mill overloading and choking represent some of the most persistent and costly operational challenges. These conditions not only lead to significant downtime and reduced throughput but also increase wear on mechanical components and drive up energy consumption. Understanding the root causes and implementing effective solutions is paramount for maintaining optimal grinding circuit performance and maximizing profitability.
While often used interchangeably, overloading and choking describe two distinct, though related, problematic states in a grinding mill.
Mill Overloading occurs when the mill is fed with more material than it can effectively grind. This excess feed volume prevents the grinding media (balls, rods, or the rollers themselves) from cascading and cataracting effectively. Instead of efficiently impacting and grinding the material, the media becomes bogged down in a thick, dense bed of ore. The immediate symptoms include a sharp rise in the mill motor’s amperage (power draw), a characteristic rumbling or booming sound from the mill shell, and a noticeable drop in product fineness as coarse particles are prematurely discharged.
Mill Choking, on the other hand, typically occurs further downstream, often in air-swept mills or those with a classification system. It happens when the ground material cannot be evacuated from the mill quickly enough. This is frequently due to insufficient airflow, a blockage in the discharge system, or an overloaded classifier that cannot keep up with the production rate. The result is a buildup of fine material inside the mill chamber, which cushions the grinding action, drastically reduces efficiency, and can ultimately lead to a complete shutdown.
Several factors can conspire to create overloading and choking conditions:
Modern grinding technology offers robust solutions designed to inherently resist overloading and choking. A key advancement lies in mill designs that integrate multiple functions—crushing, grinding, drying, classification, and conveying—into a single, intelligently controlled system.
Shanghai Zenith Machinery Co., Ltd., a leading manufacturer in the field of ultra-fine powder grinding, has engineered its equipment with these specific challenges in mind. Our mills are designed not just for high capacity, but for stable, reliable operation under variable conditions.
For operations plagued by overloading and instability, the LM Vertical Grinding Mill from Zenith presents an ideal solution. Its unique design integrates five functions into one unit, which drastically reduces the number of potential failure points and simplifies material flow. The grinding bed is more stable, and the direct grinding mechanism between the roller and the table is less sensitive to minor fluctuations in feed material compared to a ball mill.
The LM Vertical Grinding Mill’s ability to handle higher moisture content with its integrated hot air system also directly addresses the issue of choking from damp feed. Furthermore, its smaller footprint and lower energy consumption per ton of product make it a sound economic and operational choice for new projects or plant upgrades aimed at solving reliability issues.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |

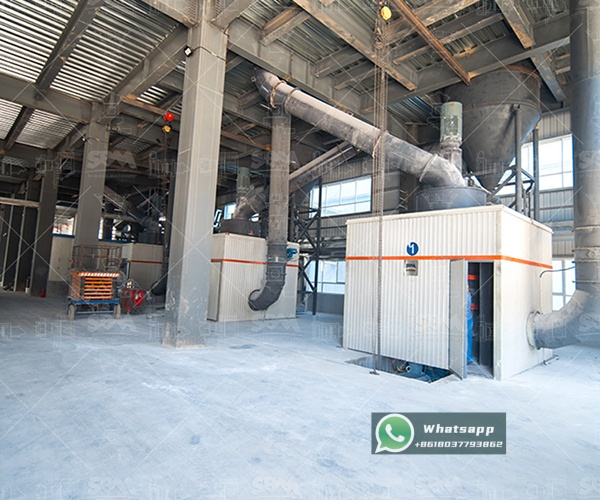

For applications demanding ultra-fine powders, the LUM Ultrafine Vertical Mill is Zenith’s state-of-the-art answer. This mill takes the benefits of the vertical design a step further, incorporating advanced material conveying and classifying technology that is highly resistant to choking. The internal classifier can be precisely adjusted to control product fineness without causing internal recirculation buildups.
Its intelligent control system continuously monitors critical parameters, allowing for automated adjustments to maintain optimal grinding conditions and provide early warnings of potential issues, effectively preventing overloading before it occurs.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
Regardless of the equipment, adhering to best practices is crucial:
The problems of mill overloading and choking are not insurmountable. By understanding their causes and implementing a combination of advanced technology and sound operational practices, these issues can be effectively mitigated. Shanghai Zenith Machinery’s grinding solutions, particularly the LM Vertical Grinding Mill and the LUM Ultrafine Vertical Mill, are engineered from the ground up to provide stable, efficient, and reliable operation, directly addressing the core challenges that lead to downtime and lost production. Investing in the right technology and control strategies is the most effective path toward a choke-free and optimally loaded grinding circuit.
