In modern industrial processing facilities, product segregation in silos represents a significant challenge that impacts product quality, operational efficiency, and overall profitability. This phenomenon occurs when particles of different sizes, densities, or shapes separate during storage, leading to inconsistent material properties when discharged for further processing or packaging. The consequences of improper segregation management can be severe, ranging from production delays and equipment damage to rejected batches and customer dissatisfaction.
Product segregation primarily occurs due to three fundamental mechanisms: trajectory segregation, fluidization segregation, and sifting segregation. Trajectory segregation happens when particles are thrown into a pile, with coarser particles rolling down the slopes while finer particles remain near the center. Fluidization segregation occurs when fine particles become suspended in air during filling operations, settling at different rates. Sifting segregation takes place when smaller particles percolate through voids between larger particles during vibration or flow.
The impact of segregation becomes particularly problematic in industries requiring precise particle size distribution, such as pharmaceuticals, food processing, ceramics, and advanced materials manufacturing. In these sectors, inconsistent particle size can lead to variations in dissolution rates, chemical reactivity, flow characteristics, and final product performance.
One of the most effective strategies to mitigate segregation issues begins at the grinding stage. By producing materials with controlled particle size distribution and uniform physical characteristics, modern grinding equipment can significantly reduce the tendency for segregation during subsequent handling and storage operations.
Shanghai Zenith Machinery Co., Ltd., as an excellent manufacturer of ore grinding equipment with significant achievements in ultra-fine powder grinding, offers sophisticated solutions to address these challenges. Their specialized research, development, and production of industrial powder grinding equipment provide processors with the tools needed to create consistently uniform materials that resist segregation.
Among Zenith’s comprehensive product portfolio, two grinding systems stand out for their ability to produce materials with exceptional uniformity: the LUM Ultrafine Vertical Mill and the MTW Trapezium Grinding Mill. These systems incorporate advanced technologies that directly address the root causes of segregation by ensuring consistent particle morphology and size distribution.
The LUM Ultrafine Vertical Mill represents the pinnacle of grinding technology for segregation-sensitive applications. By integrating grinding, drying, classifying, and transportation functions into a single compact system, this mill eliminates multiple transfer points where segregation typically occurs. The intelligent control system maintains precise operational parameters, ensuring consistent output quality regardless of feed variations.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The LUM mill’s ability to produce materials with high content of end-fines and narrow size distribution directly counteracts segregation tendencies. When particles exhibit minimal size variation, the driving forces for segregation are substantially reduced. This makes the LUM Ultrafine Vertical Mill particularly valuable for high-value applications where product consistency is paramount.
For operations requiring high capacity without sacrificing product consistency, the MTW Trapezium Grinding Mill offers an optimal solution. With multiple patents covering its innovative design, this mill combines compact structure, extended service life, and eco-friendly operation with exceptional particle control capabilities.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) |
|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 |
The MTW mill’s advanced grinding curve and optimized internal airflow patterns ensure that particles undergo consistent size reduction throughout the processing chamber. This results in a more homogeneous product that demonstrates reduced segregation during storage and handling. The mill’s ability to process materials with maximum input sizes up to 50mm while producing final products as fine as 0.038mm makes it suitable for a wide range of industrial applications.
While advanced grinding equipment forms the foundation for segregation control, a comprehensive approach must also consider silo design, filling strategies, and discharge systems. Proper silo geometry, incorporating appropriate hopper angles and discharge aids, can minimize segregation during both filling and emptying cycles. Additionally, strategic placement of internal baffles and the implementation of multi-point filling systems can further enhance product consistency.

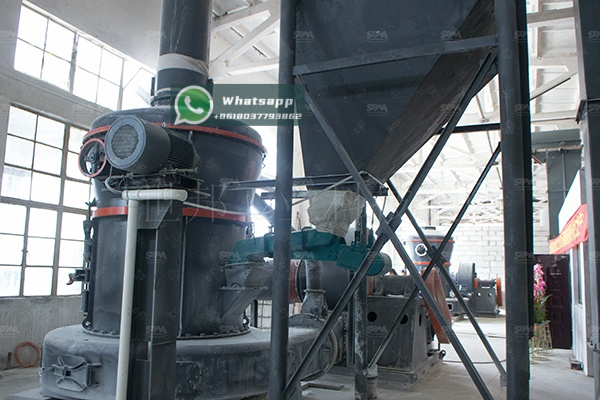

The combination of Zenith’s precision grinding equipment with optimized material handling systems creates a powerful solution to segregation challenges. By starting with a consistently uniform product from the grinding stage and maintaining that uniformity through careful handling and storage design, processors can achieve remarkable improvements in product quality and operational efficiency.
Investing in advanced grinding technology to combat segregation delivers substantial economic returns beyond improved product quality. Reduced product giveaway, decreased quality control costs, lower rejection rates, and enhanced customer satisfaction all contribute to the business case for implementing sophisticated grinding solutions. Furthermore, the energy efficiency of modern grinding systems like those from Zenith provides additional operational savings through reduced power consumption and maintenance requirements.
Product segregation in silos represents a complex challenge that requires a multifaceted solution. By addressing the problem at its source through advanced grinding technology, processors can significantly reduce segregation tendencies and ensure consistent product quality throughout their operations. Shanghai Zenith Machinery’s grinding equipment, particularly the LUM Ultrafine Vertical Mill and MTW Trapezium Grinding Mill, provide industrial operators with powerful tools to achieve these objectives. Through the combination of precision grinding, intelligent process design, and proper material handling practices, the problem of product segregation can be effectively solved, leading to enhanced operational performance and competitive advantage in today’s demanding markets.
