Talc (Mg3Si4O10(OH)2) is a naturally occurring mineral widely used as a fluxing agent and source of magnesium oxide in the glass industry. In glass production, talc helps lower the melting temperature, improve the thermal shock resistance, and enhance the mechanical strength of the final product. The glass sector in Laos, though still emerging, is growing steadily due to increasing demand for packaging, construction, and specialty glass. To meet international quality standards, raw talc must be ground to a precise particle size—typically 600 mesh (approx. 23 μm). Achieving this fineness consistently and efficiently requires a reliable, high-performance grinding mill.
The fineness of talc powder directly influences glass quality. At 600 mesh, talc particles are small enough to ensure homogeneous mixing with other raw materials (silica sand, soda ash, limestone) in the batch. This uniformity prevents local defects, such as stones or cords, in the molten glass. Moreover, finer talc reacts more completely during melting, reducing energy consumption and improving furnace life. In Laos, where energy costs can be a significant factor, minimizing waste heat and maximizing raw material utilization are critical economic drivers.
Talc is a soft mineral (Mohs hardness 1) with a platy structure. While it is relatively easy to grind, its lamellar nature can lead to agglomeration and re-agglomeration in conventional mills. Traditional Raymond mills or ball mills often struggle to reach 600 mesh without excessive energy input or frequent maintenance. Additionally, the moisture content of raw talc (often 2–6% in Laos) must be controlled to avoid clogging. Therefore, a grinding system that integrates drying, classification, and ultra-fine grinding in one compact unit is ideal for Laotian operations.
Shanghai Zenith Machinery Co., Ltd. is a leading Chinese manufacturer of ore grinding equipment, with decades of experience in producing high-efficiency mills for industries worldwide. Our portfolio includes several machines capable of delivering consistent 600 mesh talc powder for glass making. Below we highlight two superior solutions: the XZM Ultrafine Grinding Mill and the LUM Ultrafine Vertical Mill.
The XZM series is specifically designed for superfine powder production, covering a fineness range of 325–2500 mesh (5–44 μm). It is perfect for grinding soft to medium-hard materials like talc, with moisture content below 6%. The machine features a multi‑stage classification system that ensures precise particle size control, avoiding over‑grinding and saving energy. Its compact footprint and low noise level make it suitable for both large‑scale plants and modular setups in Laos.
| Model | Working Diameter (mm) | Max Feed Size (mm) | Final Size (mesh) | Output (kg/h) | Main Motor Power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325–2500 | 500–4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325–2500 | 5000–25000 | 315 |
For a typical Laotian talc grinding line requiring 2–4 t/h of 600 mesh product, the XZM221 is an excellent choice. Its small footprint and low power consumption (75 kW main motor) allow easy integration with existing drying and conveying systems.

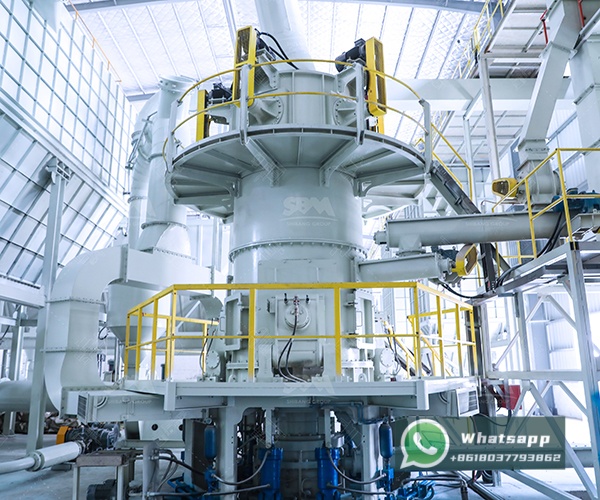

The LUM series vertical roller mill is another premium solution for ultra‑fine grinding. It integrates grinding, drying, classifying, and material transport in a single unit, reducing capital investment and operating costs. The mill uses a dynamic classifier that can produce powders with D97 between 5–30 μm, covering the 600 mesh requirement precisely. Its intelligent control system automatically adjusts parameters to maintain consistent product quality even when raw material properties vary.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220–250 | 1.6–11.5 | 5–30 |
| LUM1632 | 280–315 | 2.0–13.5 | 5–30 |
| LUM1836 | 355–400 | 2.3–15 | 5–30 |
The LUM1525 is particularly well‑suited for Laotian glass manufacturers with moderate capacity demands (1.6–11.5 t/h). Its vertical arrangement saves floor space—an important factor when building or retrofitting mills in hilly terrain common in northern Laos.
A hypothetical talc processing plant in Vientiane province chose the XZM221 mill to produce glass‑grade talc. With a feed size of 10–15 mm crushed talc, the mill consistently delivered 600 mesh powder at 2.5 t/h, using 72 kW per ton. The built‑in air classifier removed any oversize particles, guaranteeing >95% passing through a 600 mesh sieve. The plant reported a 30% reduction in energy costs compared to a previous ball mill setup, and maintenance intervals extended to over 6 months thanks to the wear‑resistant grinding rings and rollers.
Producing 600 mesh talc powder for glass making in Laos is both technically feasible and economically attractive with the right grinding equipment. The XZM Ultrafine Grinding Mill and LUM Ultrafine Vertical Mill from Shanghai Zenith Machinery offer unmatched efficiency, reliability, and precision. Whether you are building a new plant or upgrading an existing one, our team is ready to help you select the optimal mill and ensure a smooth operation. Contact us today to discuss your talc grinding requirements and receive a customized quotation.
