Tanzania’s paper manufacturing sector has been expanding steadily, driven by rising domestic consumption and regional export opportunities. One critical raw material for high-quality paper production is talcum powder, which serves as a filler and coating pigment. Talc improves paper’s brightness, opacity, smoothness, and printability while reducing production costs. In Tanzania, local talc reserves (e.g., in the Morogoro and Arusha regions) provide a cost-effective source, but the ore must be finely ground to specifications typically between 200 and 800 mesh (75–20 µm) for paper filler applications. Achieving a consistent output of 1–3 tons per hour (tph) with the required fineness demands a reliable and energy-efficient grinding mill. This article explores the optimal selection of talc grinding equipment for Tanzanian paper mills, focusing on Shanghai Zenith Machinery’s proven solutions.
When choosing a grinding mill for talc in paper making, several factors must be evaluated: raw material characteristics (moisture, hardness, feed size), required product fineness, capacity (1–3 tph), energy consumption, maintenance requirements, and total cost of ownership. Talc is a soft mineral (Mohs hardness 1) with a natural lamellar structure, which makes it easy to grind but prone to generating excessive ultrafine dust if not properly controlled. Therefore, the mill should offer adjustable classification to avoid over-grinding and ensure a narrow particle size distribution. For paper applications, a fineness of 325 mesh (44 µm) is typical, though some premium grades require 600 mesh or finer. Additionally, moisture content below 6% is preferred to prevent clogging.
Based on decades of experience in ore grinding, Shanghai Zenith Machinery Co., Ltd. offers two outstanding models ideally suited for Tanzanian paper mills targeting 1–3 tph talc powder production: the XZM221 Ultrafine Grinding Mill and the YGM8314 Raymond Mill. Both machines are engineered for high efficiency, low operating costs, and easy maintenance, making them perfect for the local conditions.

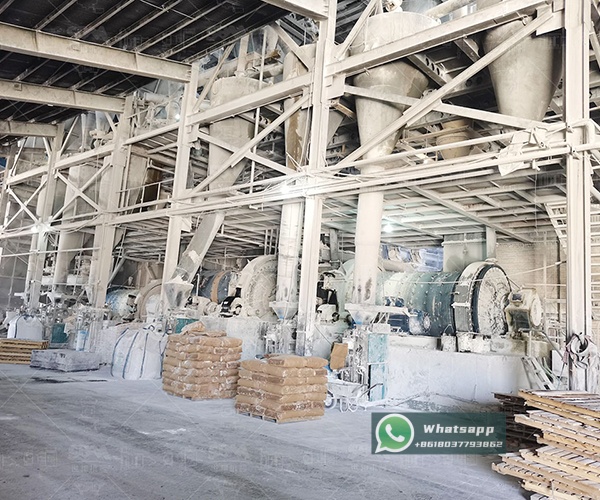

The XZM series is designed for superfine powder production, capable of achieving fineness from 325 to 2500 mesh (44–5 µm). The XZM221 model has a working diameter of Φ800 mm and delivers a capacity of 500–4500 kg/h (0.5–4.5 tph), which perfectly spans the 1–3 tph range. Its advanced classifying system ensures a consistent product with high specific surface area, ideal for paper coating and filler applications. The mill is also equipped with a dust collector that meets environmental standards, an important feature for Tanzanian manufacturers aiming for sustainable operations.
| Parameter | Value |
|---|---|
| Working Diameter (mm) | Φ800 |
| Max Feed Size (mm) | ≤20 |
| Final Size (mesh) | 325–2500 |
| Capacity (kg/h) | 500–4500 |
| Main Motor Power (kW) | 75 |
| Classifier Power (kW) | 15 |
| Total Weight (approx. t) | 8.5 |
The Raymond Mill is a classic choice for medium-fine grinding (1.6–0.045 mm, equivalent to 10–325 mesh). Model YGM8314 features 3 grinding rollers and produces 1.2–4.6 t/h, making it a cost-effective option for paper mills that require a simpler operation and lower initial investment. Its robust construction and proven reliability are well-suited for the often remote locations of Tanzanian mining sites. The mill can handle feed sizes up to 20 mm and dries slightly moist materials during grinding, an advantage when processing freshly mined talc with up to 5% moisture.
| Parameter | Value |
|---|---|
| Roller Quantity (pcs) | 3 |
| Max Feed Size (mm) | 20 |
| Discharging Size (mm) | 1.6–0.045 |
| Capacity (t/h) | 1.2–4.6 |
| Main Motor Power (kW) | 18.5 |
| Fan Motor Power (kW) | 15 |
| Total Weight (approx. t) | 4.5 |
Both the XZM221 and YGM8314 can comfortably achieve the 1–3 tph target. The choice depends on the end-use fineness requirement:
Additionally, both mills are designed for easy operation in Tanzania’s tropical climate. Zenith provides comprehensive after-sales support, including on-site installation guidance, operator training, and spare parts supply through local agents in Dar es Salaam and Mwanza.
To ensure long-term stable operation of the talc grinding mill, attention should be paid to the following: (1) Select a dry and ventilated site for the mill foundation; (2) Use a feeder with frequency control to maintain a stable feed rate, avoiding overloading; (3) Regularly inspect grinding rollers and rings for wear – typical service life exceeds 6 months under normal conditions; (4) Keep the lubrication system clean and replace oil every 3 months; (5) For the XZM221, regularly clean the classifier blades to maintain classification accuracy. Zenith’s technical team recommends scheduling a quarterly preventive maintenance visit to maximize uptime.
Shanghai Zenith Machinery Co., Ltd. has been a leading manufacturer of ore grinding equipment in China for over 30 years, with a strong global presence including numerous installations in Africa. Our mills are known for their robust construction, low energy consumption (up to 30% savings compared to traditional ball mills), and advanced intelligent control systems. For Tanzanian paper makers, we offer tailored solutions, including complete grinding lines from primary crusher to finished product silo. Our after-sales network in East Africa ensures prompt technical support and spare parts delivery. We invite you to contact our team for a free process design consultation.
Selecting the right talc grinding mill is crucial for the profitability and product quality of paper manufacturing in Tanzania. Both the XZM221 Ultrafine Grinding Mill and the YGM8314 Raymond Mill from Zenith provide excellent performance in the 1–3 tph range, with distinct advantages for different fineness requirements. By investing in a high-quality mill, Tanzanian paper mills can reduce production costs, improve paper quality, and compete effectively in the regional market. For detailed quotations and technical drawings, please reach out to Shanghai Zenith Machinery today.
