Talc has become one of the most essential mineral materials in modern industrial applications, particularly in the ceramics and tile production industries. The United Arab Emirates (UAE), as a major hub of architectural innovation and infrastructure development, has continuously driven the demand for high-quality ceramic products. To meet these increasing requirements, the role of efficient and high-performance grinding equipment becomes critical. A properly selected talc grinding mill ensures high fineness, better surface finish, and enhanced mechanical properties of ceramic tiles.
Shanghai Zenith Machinery Co., Ltd., as a leading manufacturer of industrial grinding equipment in China, has rich experience in developing advanced solutions for powder processing. Their comprehensive portfolio, which includes models such as the MTW Trapezium Grinding Mill and LM Vertical Grinding Mill, makes them an ideal partner for UAE manufacturers looking for 20-30 TPH production capabilities in talc grinding applications for tile production.
Talc, or hydrated magnesium silicate, is widely used in ceramic and tile manufacturing due to its excellent physical and chemical properties. It offers superior whiteness, lubricity, and resistance to heat and chemicals. When incorporated into ceramic tile production, talc plays a crucial role in improving the pressing characteristics, enhancing sintering behavior, and reducing shrinkage during firing. These effects directly influence the mechanical strength, surface finish, and overall aesthetic appeal of the finished tiles.
For the UAE market, where both functional and decorative tiles are in high demand, consistent talc particle size distribution is essential. Therefore, choosing an optimized talc grinding solution with a stable capacity of 20–30 TPH becomes essential to meet both production and quality requirements.
In high-efficiency tile production lines, the talc used must meet specific particle size and purity standards. A well-balanced grinding system should be capable of achieving fine particle sizes—typically up to 45 microns or finer—while maintaining energy efficiency. In addition, the equipment must provide stable and continuous operation to satisfy large-scale production targets.
Given UAE’s industrial climate—with high ambient temperatures and strict environmental regulations—grinding systems must also feature good dust control, low noise, and energy-efficient operation. Shanghai Zenith Machinery’s grinding solutions align perfectly with these local requirements, making them a top choice for the region.
Considering the target output of 20–30 TPH and the fine powder specifications required for talc used in ceramic tiles, two of Shanghai Zenith’s flagship models are particularly well-suited: the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill. Both options combine high efficiency, precise particle size control, and environmental friendliness.

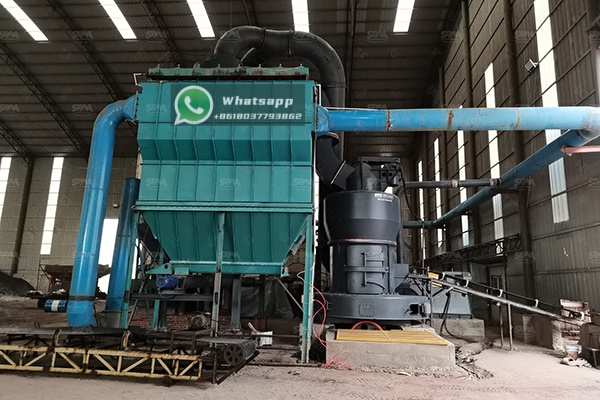

The MTW Trapezium Grinding Mill from Shanghai Zenith Machinery is designed with advanced European technology, offering excellent stability, high throughput, and low operational costs. This mill is ideal for mid-range grinding capacities of around 20–25 TPH, producing a uniform product ideal for ceramic applications.
| Model | Max. Feed Size (mm) | Final size (mm) | Capacity (t/h) | Main motor (kW) | Fan motor (kW) |
|---|---|---|---|---|---|
| MTW138Z | <35 | 1.6–0.045 | 6–17 | 90 | 110 |
| MTW175G | <40 | 1.6–0.045 | 9.5–25 | 160 | 200 |
| MTW215G | <50 | 1.6–0.045 | 15–45 | 280 | 315 |
The MTW175G model, with a rated capacity of up to 25 TPH, perfectly matches the mid-range talc production requirements for UAE tile manufacturers. It combines fine particle output (around 45 microns) with high energy efficiency, ensuring excellent performance in continuous industrial operations.
For operations requiring higher capacity and integrated processing, the LM Vertical Grinding Mill offers an attractive alternative. This advanced equipment integrates crushing, grinding, classifying, drying, and conveying in one compact system. It ensures consistent product fineness while allowing precise control over moisture levels, a key factor in ceramic applications.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10–28 | 170–40 | <38 | 200 |
| LM190K | 1900 | 23–68 | 170–40 | <45 | 500 |
Among these models, the LM130K stands out as an optimal solution for 20–30 TPH talc grinding lines. The integrated design minimizes installation area and reduces dust emissions—essential advantages for industrial facilities in the UAE that prioritize sustainability and low environmental impact.

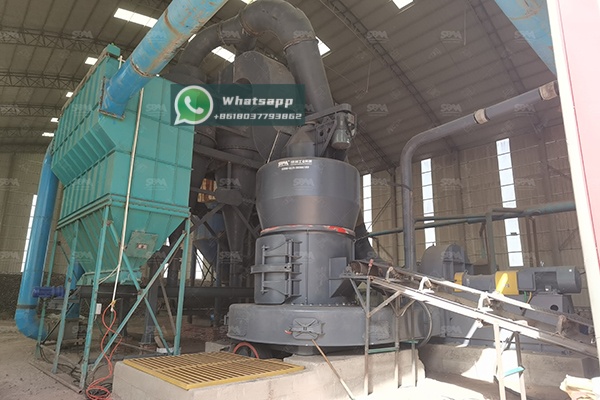

For a 20–30 TPH talc grinding production line dedicated to tile manufacturing, the plant layout should ensure smooth material flow from raw talc feeding to final packaging. Standard configurations include crushers for pre-processing, a feed conveyor system, grinding mill, classifier, dust collection, and storage silos. Automation and digital monitoring can further enhance operational control and reliability.
Shanghai Zenith offers complete turnkey solutions, providing not only individual machines but also professional configuration support and technical advisory services for plant design and commissioning.
Energy costs remain a major factor affecting industrial production in the UAE. With the region’s growing emphasis on sustainable manufacturing, energy-efficient grinding solutions are indispensable. Shanghai Zenith’s equipment uses advanced classifiers and frequency control systems to minimize energy consumption. In addition, integrated dust collection systems effectively control particulate emissions, ensuring cleaner and safer working environments.
The demand for premium ceramic tiles in the UAE continues to grow, driven by both domestic construction and export markets. To meet these evolving requirements, producers must adopt advanced grinding technologies capable of ensuring consistent talc powder quality and high throughput.
Shanghai Zenith Machinery Co., Ltd. has proven expertise in delivering efficient, reliable, and environmentally friendly grinding solutions. The MTW Trapezium Grinding Mill and LM Vertical Grinding Mill represent two of the best options available for 20–30 TPH talc grinding lines aimed at high-quality tile production. Their flexibility, robust construction, and intelligent control systems provide a strong foundation for UAE manufacturers looking to enhance performance and competitiveness in the global ceramic industry.
For further consultation, design customization, and equipment selection, Shanghai Zenith’s professional engineering team can provide on-site solutions tailored to local production requirements and conditions.
