Laos, a Southeast Asian country rich in natural resources, is experiencing rapid industrialization and urban development. With this growth comes an increased demand for clean water and effective water treatment solutions. Among various treatment agents, talc (hydrous magnesium silicate) has emerged as a valuable mineral for water purification, thanks to its high chemical inertness, high specific surface area, and excellent adsorption properties. Talc powder is used in water treatment processes to remove suspended solids, heavy metals, oils, and organic contaminants, as well as to adjust pH levels and improve filtration efficiency. In many Laotian municipalities and industrial plants, small- to medium-scale grinding systems producing 1 to 3 tons per hour (tph) of talc powder are ideally suited for local water treatment facilities, mining operations, and ceramic industries.
Shanghai Zenith Machinery Co., Ltd., a leading Chinese manufacturer of ore grinding equipment with extensive achievements in ultra-fine powder grinding, offers a comprehensive range of mills that can efficiently produce talc powder with the required fineness (typically 200–600 mesh, or even finer for advanced applications). This article provides a professional overview of talc grinding mill selection for water treatment in Laos, highlighting the key technical considerations and recommending two high-performance solutions from Zenith’s product portfolio.
Talc is widely used in water treatment for several reasons:
For these applications, talc powder must be ground to specific particle sizes. Typical water treatment specifications require a fineness of D90 < 75 μm (200 mesh) or finer, such as 325 mesh (45 μm) or 600 mesh (23 μm). The grinding mill must therefore be capable of producing consistent, fine powder at the required capacity.
When choosing a grinding mill for a 1-3 tph talc powder production line in Laos, the following factors must be carefully evaluated:
Based on these criteria, Shanghai Zenith offers two outstanding solutions that perfectly fit the 1-3 tph range: the XZM221 Ultrafine Grinding Mill and the LUM1525 Ultrafine Vertical Mill. Both are designed for superfine powder production and can produce talc powder with exceptional fineness and high throughput.

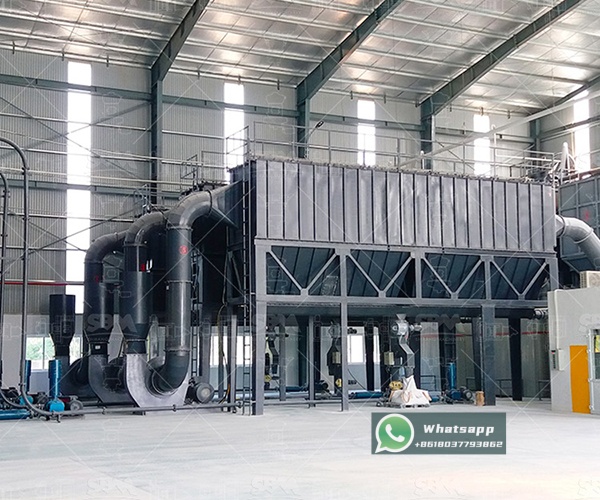

The XZM series Ultrafine Grinding Mill is a high-efficiency mill designed for superfine powder processing. It is widely used for grinding soft to medium-hard materials with a Mohs hardness of less than 6, and a moisture content below 6%. The XZM221 model, with a working diameter of Φ800 mm, is particularly suitable for small- to medium-capacity plants requiring 0.5 to 4.5 tons per hour. Its final product fineness ranges from 325 mesh (44 μm) up to 2500 mesh (5 μm), easily covering water treatment needs. The mill employs a multi-stage grinding and classifying system, which ensures a narrow particle size distribution and low energy consumption.
Key features of the XZM221 include:
| Parameter | Value |
|---|---|
| Model | XZM221 |
| Working diameter (mm) | Φ800 |
| Max. feed size (mm) | ≤20 |
| Final size (mesh) | 325–2500 |
| Capacity (kg/h) | 500–4500 (0.5–4.5 t/h) |
| Main motor power (kW) | 75 |
| Fan motor power (kW) | 55 |
| Classifier motor power (kW) | 11 |
| Overall dimensions (L×W×H, m) | 9.5×4.5×6.2 |
For a Laotian water treatment plant requiring 1-3 tph of talc powder with fineness around 325–600 mesh, the XZM221 can easily operate at the lower end of its capacity range, providing stable and consistent production. Its compact design makes it ideal for locations with limited space, and its modular construction simplifies installation and maintenance.
The LUM series Ultrafine Vertical Mill is Zenith’s advanced vertical roller mill technology, integrating grinding, classifying, drying, and conveying in one unit. The LUM1525 model has a plate diameter of 1500 mm and is capable of producing ultra-fine powders with a size distribution of D97 5–30 μm (which corresponds to approximately 600–2500 mesh). Its capacity ranges from 1.6 to 11.5 t/h, perfectly covering the 1-3 tph target. This mill is especially suited for high-value talc products used in advanced water treatment, where extremely fine particles are needed for maximum adsorption efficiency.
Advantages of the LUM1525 include:
| Parameter | Value |
|---|---|
| Model | LUM1525 |
| Plate diameter (mm) | 1500 |
| Main machine power (kW) | 220–250 |
| Capacity (t/h) | 1.6–11.5 |
| Size distribution D97 (μm) | 5–30 |
| Max. feed size (mm) | <10 |
| Overall dimensions (L×W×H, m) | 12.5×6.5×10.5 |
For Laotian customers who prioritize ultra-fine talc powder for high-end water treatment applications (e.g., membrane filtration pre-treatment, heavy metal removal), the LUM1525 is an excellent choice. Although its power consumption is higher than the XZM221, the superior product quality and lower operating costs per ton often justify the investment. The mill can be operated at partial load to achieve exactly 1-3 tph with excellent stability.
Both the XZM221 and LUM1525 are well suited for 1-3 tph talc grinding for water treatment. The table below summarizes the key differences to help Laotian project managers and engineers make an informed decision:
| Feature | XZM221 | LUM1525 |
|---|---|---|
| Capacity (t/h) | 0.5–4.5 | 1.6–11.5 |
| Fineness (mesh / μm) | 325–2500 (5–44 μm) | D97 5–30 μm (~600–2500 mesh) |
| Main motor power (kW) | 75 | 220–250 |
| Technology | Multi-stage grinding + classifier | Vertical roller mill with built-in classifier |
| Footprint | Compact | Very compact |
| Moisture tolerance | <6% | <10% (with hot air drying) |
| Ideal for | Standard water treatment talc (325–600 mesh) | Ultra-fine talc for advanced applications |
| Investment cost | Lower | Higher |
For most Laotian water treatment plants, the XZM221 offers the best balance of cost, capacity, and fineness. It can easily produce 1-3 tph of 325–600 mesh talc powder, which meets the vast majority of municipal and industrial needs. If the project demands extremely fine powder (e.g., <10 μm) to achieve higher adsorption efficiency or to meet export-grade specifications, the LUM1525 is the preferred solution.
Shanghai Zenith Machinery Co., Ltd. has a proven track record in supplying ore grinding equipment to markets worldwide, including Southeast Asia. With over 30 years of experience in the grinding industry and a comprehensive product portfolio ranging from Raymond mills to ultra-fine vertical mills, Zenith can provide tailored solutions for talc powder production in Laos. Both the XZM221 Ultrafine Grinding Mill and the LUM1525 Ultrafine Vertical Mill are capable of delivering 1-3 tph output with the required fineness for water treatment applications. Moreover, Zenith offers complete system packages including feeders, conveyors, dust collectors, and control panels, ensuring turnkey project execution.
For further technical consultation or to request a custom quotation for your specific project in Laos, please contact Shanghai Zenith’s local representatives or visit our official website. We look forward to supporting the development of Laos’ water infrastructure with high-quality, efficient grinding equipment.
Note: The images used in this article are for illustration purposes only. Actual equipment appearance may vary. Contact Zenith for up-to-date technical drawings and specifications.
