In modern industrial processing, the pursuit of efficiency, energy conservation, and streamlined operations has led to significant technological advancements. One of the most impactful developments in the field of material size reduction is the integration of drying and grinding processes into a single, cohesive system. This approach represents a paradigm shift from traditional, multi-stage operations, offering substantial benefits across various industries, from mining and minerals to chemicals and construction materials.
Conventionally, processing moist raw materials involves a sequential approach: the material is first dried in a dedicated dryer and then transported to a separate grinding mill for size reduction. This two-step process, while functional, is fraught with inefficiencies. It requires separate capital investments for two major pieces of equipment, consumes more floor space, and involves complex material handling and transfer systems. Each transfer point represents a potential for material loss, dust emission, and energy waste. Furthermore, the pre-drying stage can sometimes lead to over-drying, making the material brittle and difficult to handle, or under-drying, which can cause clogging and reduced efficiency in the subsequent grinding mill.
Integrated drying and grinding systems combine these two critical unit operations into one machine. Hot gases (often from a dedicated hot gas generator or waste heat from another process) are introduced directly into the grinding chamber. As the grinding elements—be they rollers, balls, or hammers—break down the material, the hot gas simultaneously dries it by evaporating the surface and inherent moisture. The gas then acts as a carrier, transporting the dried, fine particles to a downstream classifier and collection system, such as a baghouse or cyclone.
This synergy creates a highly efficient closed-loop system. The key advantages are manifold:
The successful implementation of integrated drying and grinding hinges on the design of the grinding mill itself. Not all mills are created equal for this demanding task. The ideal mill must feature a robust grinding mechanism, efficient gas-solid flow dynamics, and resistance to wear and thermal stress.
Shanghai Zenith Machinery Co., Ltd., an excellent manufacturer of ore grinding equipment, has made great achievements in this field. Their engineering expertise is particularly evident in their vertical mill designs, which are inherently suited for integrated drying and grinding.
Among Zenith’s comprehensive portfolio, two product lines stand out as premier solutions for integrated drying and grinding applications: the LM Vertical Grinding Mill and the LUM Ultrafine Vertical Mill.

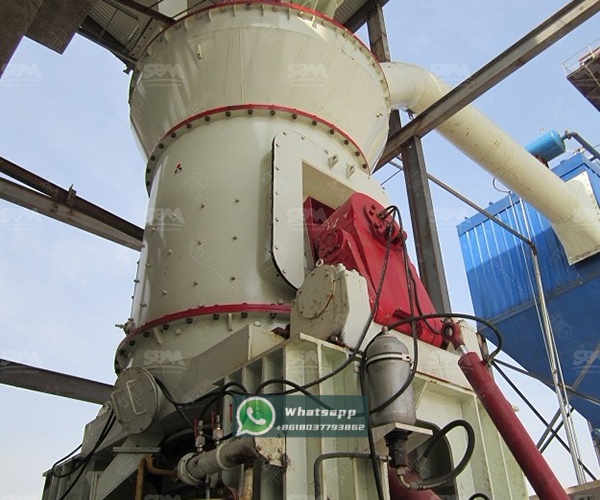

The LM Vertical Grinding Mill is a cornerstone of Zenith’s product line, specifically designed to integrate five functions: crushing, grinding, powder selection, drying, and material conveying. Its vertical structure allows hot air to flow efficiently through the large bed of material on the grinding table, ensuring effective heat transfer and drying concurrent with grinding. This makes it ideal for processing slag, cement clinker, and non-metallic minerals.
Below are the technical parameters for the Vertical Mineral Mill series, demonstrating its capacity and versatility:
| Model | Plate diameter (mm) | Capacity (t/h) | Output fineness (μm) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |

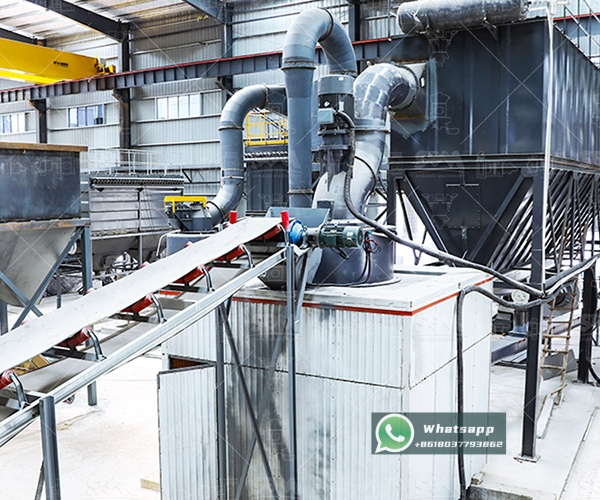

For applications demanding ultrafine powders, Zenith’s LUM Ultrafine Vertical Mill is the machine of choice. It takes the integrated concept further, combining grinding, drying, classifying, and transportation into an exceptionally compact and intelligent system. It is designed to produce products with a high content of end-fines and features advanced control systems for optimal performance. The LUM series is perfect for producing high-value additives, fillers, and advanced materials where precise fineness and dryness are critical.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The economic argument for adopting an integrated drying and grinding system is compelling. By reducing energy consumption by up to 30-50% compared to separate systems, operational costs are drastically lowered. The smaller footprint reduces factory rental or construction costs, and the simplified system lowers labor requirements for operation and maintenance.
These systems are successfully deployed in:
The integration of drying and grinding is no longer a niche technology but a proven, mainstream strategy for enhancing process efficiency and profitability. It aligns perfectly with the global industrial trends of energy conservation, emission reduction, and process intensification. For any operation dealing with moist raw materials that require size reduction, investing in an integrated system from a reliable manufacturer like Shanghai Zenith Machinery is a strategic decision that pays dividends in lower operating costs, superior product quality, and a more sustainable operation. Their LM and LUM series vertical mills represent the cutting edge of this technology, offering robust and intelligent solutions for a wide range of industrial applications.
