In the modern construction and mining industries, operational efficiency and cost-effectiveness are paramount considerations for any successful project. Among the various factors influencing overall project economics, civil engineering costs represent a significant portion of capital expenditure. The choice of industrial grinding equipment plays a crucial role in determining these costs, particularly through its physical footprint and installation requirements. This article explores how vertical grinding mills, specifically those manufactured by Shanghai Zenith Machinery Co., Ltd., offer substantial advantages in reducing civil engineering expenses while maintaining superior operational performance.
Conventional grinding solutions, such as ball mills and horizontal milling systems, typically require extensive floor space and substantial foundation work. These traditional systems often necessitate:
The cumulative effect of these requirements translates into higher construction costs, increased material usage, and longer project timelines. Furthermore, the structural demands of traditional mills often require specialized engineering analysis and more complex construction methodologies.
Vertical mills represent a paradigm shift in grinding technology by integrating multiple functions into a single, compact unit. Unlike traditional systems that require separate components for crushing, grinding, classification, drying, and material conveyance, vertical mills combine these operations within their vertical structure. This integrated approach delivers several key benefits for civil engineering cost reduction:
The vertical orientation of these mills significantly decreases the required floor space compared to horizontal milling systems. Where a traditional ball mill might require a large, sprawling facility, a vertical mill can achieve similar or superior production capacity within a much smaller area. This space efficiency translates directly to reduced building costs, including:
Vertical mills feature a more compact and centralized load distribution compared to traditional horizontal mills. This characteristic enables:
Shanghai Zenith Machinery Co., Ltd., as an excellent manufacturer of ore grinding equipment, has developed advanced vertical mill technologies that maximize these civil engineering advantages. Two standout products in their portfolio demonstrate these benefits particularly well.

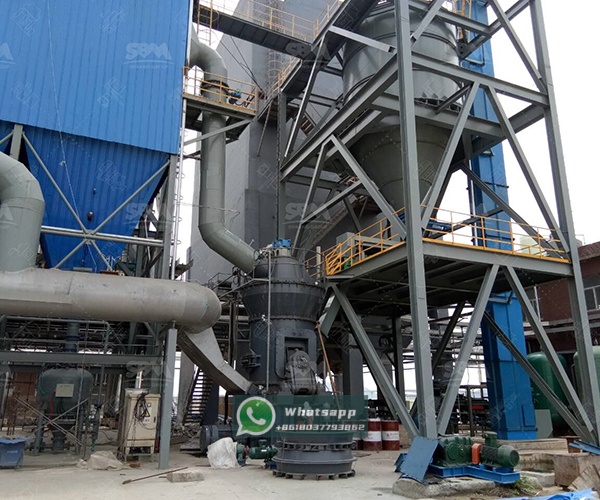

The LM Vertical Grinding Mill integrates five functions—crushing, grinding, powder selection, drying, and material conveying—into a single machine. This comprehensive integration makes it particularly valuable for projects seeking to minimize civil engineering complexity and costs.
| Model | Plate diameter (mm) | Capacity (t/h) | Output fineness (μm) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
The LM series demonstrates exceptional space efficiency while maintaining high production capacity. For instance, the LM190K model can process up to 68 tons per hour while occupying minimal floor space, making it ideal for facilities where real estate costs are high or space is constrained.
For applications requiring ultra-fine powder production, Shanghai Zenith’s LUM Ultrafine Vertical Mill offers sophisticated technology in a compact footprint. This mill integrates grinding, drying, classifying, and transportation functions while occupying minimal space.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The LUM series features intelligent control systems that further enhance its operational efficiency and reduce the need for complex control room infrastructure. The compact design and advanced automation contribute to lower civil engineering costs through simplified electrical and control system installations.
The economic benefits of vertical mills extend beyond equipment purchase price to encompass significant savings in civil engineering and construction costs. These savings typically manifest in several key areas:

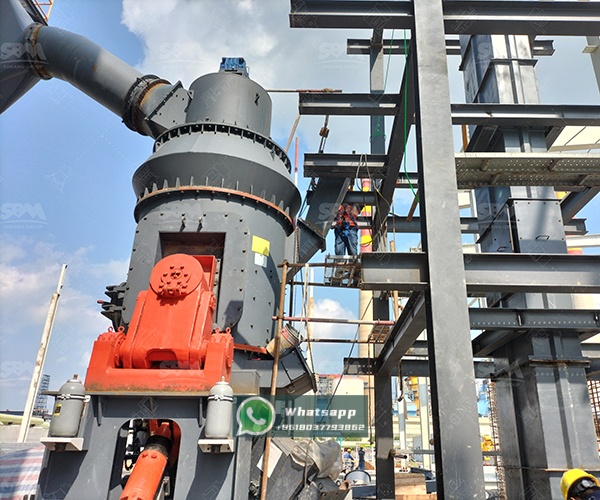

Traditional ball mills require massive foundations capable of withstanding substantial dynamic loads and vibrations. A typical ball mill foundation might require hundreds of cubic meters of reinforced concrete and extensive engineering analysis. In contrast, vertical mills like the LM series from Shanghai Zenith require significantly smaller foundations due to their compact design and different load distribution characteristics. Industry data suggests that foundation costs for vertical mills can be 40-60% lower than comparable horizontal milling systems.
The reduced footprint of vertical mills translates directly to building cost savings. A facility designed around vertical milling technology typically requires:
The integrated nature of vertical mills simplifies installation and reduces commissioning time. Where traditional systems might require weeks for component assembly and alignment, vertical mills often feature modular designs that facilitate faster installation. This efficiency translates to:
While the focus of this article is on civil engineering cost reduction, it’s important to recognize that vertical mills offer additional operational advantages that contribute to overall project economics:
Vertical mills typically consume 30-50% less energy than traditional ball mills for equivalent grinding tasks. This efficiency stems from their grinding mechanism, which applies pressure rather than impact for size reduction. The energy savings translate to lower operating costs and reduced requirements for power distribution infrastructure.
The design of Shanghai Zenith’s vertical mills prioritizes maintenance accessibility, with many components accessible from floor level. This approach reduces the need for extensive maintenance platforms, specialized access equipment, and complex maintenance procedures—all factors that can influence facility design and construction costs.
Modern vertical mills incorporate advanced dust collection and noise reduction features that help facilities meet environmental regulations. The integrated design often includes these features as standard, reducing the need for additional environmental control infrastructure and the associated civil engineering works.
A recent project in Southeast Asia demonstrated the civil engineering cost benefits of selecting Shanghai Zenith vertical mills. The project involved constructing a new mineral processing facility with a capacity of 150 tons per hour. The initial design based on traditional ball mills required:
After reevaluating the equipment selection and opting for Shanghai Zenith’s LM Vertical Grinding Mills, the project team achieved:
These savings were achieved while maintaining production capacity and product quality specifications, demonstrating the tangible benefits of vertical mill technology for project economics.
The selection of grinding equipment has profound implications for civil engineering costs in industrial projects. Vertical mills, particularly the advanced designs from Shanghai Zenith Machinery Co., Ltd., offer significant advantages through their compact footprint, integrated functionality, and simplified installation requirements. The LM Vertical Grinding Mill and LUM Ultrafine Vertical Mill represent cutting-edge solutions that deliver not only operational excellence but also substantial savings in construction and civil engineering costs.
As project developers and engineers seek to optimize capital expenditure while maintaining production efficiency, vertical mill technology provides a compelling value proposition. The reduced space requirements, simplified foundations, and faster installation timelines contribute to lower overall project costs and improved return on investment. For new projects or facility expansions, considering vertical mills from experienced manufacturers like Shanghai Zenith should be an essential part of the equipment evaluation process.
By embracing these advanced grinding technologies, industries can achieve not only lower civil engineering costs but also enhanced operational efficiency, reduced environmental impact, and improved long-term economic sustainability. The vertical mill revolution in grinding technology represents a win-win scenario for project developers, operators, and stakeholders alike.
