In the realm of industrial grinding equipment, vertical mills represent one of the most sophisticated and efficient solutions for processing various materials into fine powders. At the heart of their operational excellence lies a critical component: the hydraulic system. This complex engineering marvel is responsible for ensuring stable operation, precise control, and optimal grinding performance. As Shanghai Zenith Machinery Co., Ltd., a leading manufacturer of ore grinding equipment with significant achievements in ultra-fine powder grinding, we understand the intricate engineering that makes these systems so effective.
The hydraulic system in a vertical mill serves multiple crucial functions that directly impact grinding efficiency and operational stability. Primarily, it provides the necessary grinding pressure between the grinding rollers and the grinding table, controls the positioning of the rollers, and facilitates the damping of vibrations during operation. The system typically consists of hydraulic cylinders, accumulators, pressure control valves, and sophisticated electronic controls that work in harmony to maintain optimal grinding conditions.
When material enters the grinding chamber, the hydraulic system automatically adjusts the pressure exerted by the grinding rollers on the material bed. This pressure must be precisely controlled – too little pressure results in insufficient grinding and reduced throughput, while excessive pressure can cause premature wear of components and increased energy consumption. The hydraulic system’s ability to maintain this delicate balance is what separates high-performance mills from their conventional counterparts.
The hydraulic system comprises several critical components, each serving a specific purpose in the grinding process. The hydraulic cylinders are responsible for applying and maintaining the grinding force. These cylinders are typically double-acting, allowing for both the application of pressure and the retraction of rollers during maintenance or when foreign objects enter the grinding chamber.
Accumulators play a vital role in dampening pressure fluctuations and absorbing shocks that occur during operation. They act as energy storage devices, ensuring smooth operation even when processing materials with varying hardness or when lumps pass through the grinding zone. The pressure control system, consisting of proportional valves and pressure sensors, continuously monitors and adjusts the hydraulic pressure to maintain optimal grinding conditions.
The hydraulic power unit, comprising pumps, motors, filters, and cooling systems, provides the necessary hydraulic flow and pressure to the entire system. Modern vertical mills employ variable displacement pumps that adjust their output based on operational demands, resulting in significant energy savings compared to fixed displacement systems.
Modern vertical mills employ sophisticated control strategies to optimize the hydraulic system’s performance. Pressure-based control systems maintain constant grinding pressure regardless of material bed thickness or material characteristics. This ensures consistent product quality and protects the mill from overload conditions. Some advanced systems incorporate vibration monitoring that automatically adjusts hydraulic pressure to minimize mill vibrations, which can be detrimental to both equipment longevity and product quality.
Load-sharing systems distribute pressure evenly across multiple grinding rollers, preventing uneven wear and ensuring balanced operation. Automatic lifting and lowering sequences, controlled by the hydraulic system, facilitate maintenance operations and protect the mill during start-up and shutdown procedures. These intelligent control features represent the culmination of decades of engineering refinement in vertical mill technology.
At Shanghai Zenith Machinery, our extensive research and development in industrial powder grinding equipment has led to significant advancements in vertical mill hydraulic systems. Our engineers have developed proprietary control algorithms that optimize hydraulic pressure in real-time based on multiple operational parameters, including motor current, material feed rate, and product fineness requirements.

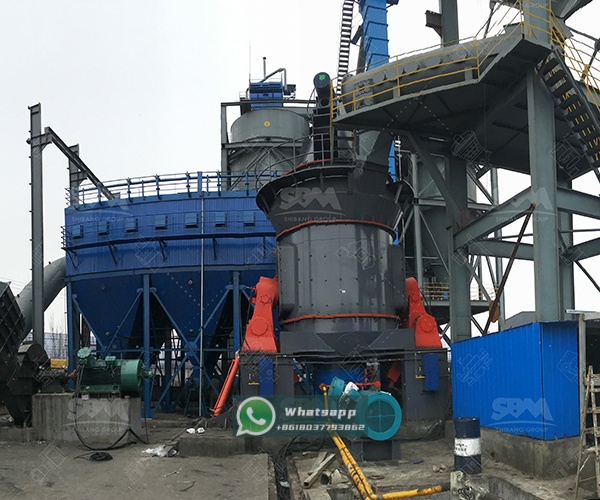

Our LM Vertical Grinding Mill series exemplifies this engineering excellence. These mills integrate five functions—crushing, grinding, powder selection, drying, and material conveying—into a single compact unit. The hydraulic system in these mills ensures stable operation even under varying load conditions, contributing to their reputation for reliability and efficiency.
| Model | Plate diameter (mm) | Capacity (t/h) | Output fineness (μm) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
For applications requiring even finer powder production, our LUM Ultrafine Vertical Mill represents the pinnacle of hydraulic system engineering. This advanced mill integrates grinding, drying, classifying, and transportation functions while occupying minimal space. The hydraulic system in the LUM series is specifically designed to handle the unique challenges of ultra-fine grinding, including precise pressure control for delicate materials and sophisticated vibration damping for stable operation at high fineness levels.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The design of vertical mill hydraulic systems must account for maintenance requirements and operational reliability. Proper filtration is critical to maintaining hydraulic fluid cleanliness, which directly impacts component longevity. Zenith’s vertical mills incorporate multiple filtration stages and condition monitoring systems that alert operators to potential issues before they lead to downtime.
Temperature control represents another crucial aspect of hydraulic system design. Our mills feature integrated cooling systems that maintain optimal hydraulic fluid temperature, preventing viscosity changes that could affect system performance. Additionally, the use of high-quality seals and compatible hydraulic fluids ensures long service intervals and reduces the total cost of ownership.
Modern hydraulic systems in vertical mills contribute significantly to energy efficiency. By precisely controlling grinding pressure and automatically adjusting to operational conditions, these systems minimize energy consumption while maximizing throughput. The compact design of Zenith’s vertical mills, made possible by sophisticated hydraulic systems, reduces the overall footprint of grinding plants while maintaining high production capacity.
The environmental benefits of advanced hydraulic systems extend beyond energy savings. Reduced vibration and noise levels create better working conditions, while the efficient operation translates to lower carbon emissions per ton of processed material. These considerations align with global trends toward sustainable industrial practices and demonstrate how engineering innovation can deliver both economic and environmental benefits.
The evolution of vertical mill hydraulic systems continues with the integration of digital technologies. Predictive maintenance algorithms, powered by machine learning, analyze hydraulic system data to forecast component failures before they occur. Digital twin technology allows for virtual testing of hydraulic system modifications, reducing development time and improving reliability.
At Shanghai Zenith Machinery, our research and development team is exploring next-generation hydraulic systems that incorporate electro-hydraulic actuation for even faster response times and greater precision. These advancements will further enhance the performance of our vertical grinding mills, solidifying our position as leaders in industrial powder grinding technology.
The hydraulic system represents the technological heart of the modern vertical mill, enabling the precise control, operational stability, and energy efficiency that define high-performance grinding equipment. Through continuous innovation and engineering refinement, Shanghai Zenith Machinery has developed vertical mills that set new standards for reliability and performance in industrial powder processing. Our LM Vertical Grinding Mill and LUM Ultrafine Vertical Mill series embody this commitment to excellence, offering operators advanced hydraulic systems that deliver consistent results across diverse applications.
