As a leading manufacturer in the industrial grinding equipment industry, Shanghai Zenith Machinery Co., Ltd. has consistently pushed the boundaries of mechanical design and engineering excellence. Among our comprehensive range of grinding solutions, the Raymond Mill stands out for its reliability and efficiency. At the heart of this machine’s robust performance lie two critical components: the Spider and the Plum Frame. This article delves into the sophisticated engineering behind these elements, explaining how their design contributes to the mill’s overall stability, durability, and grinding precision.

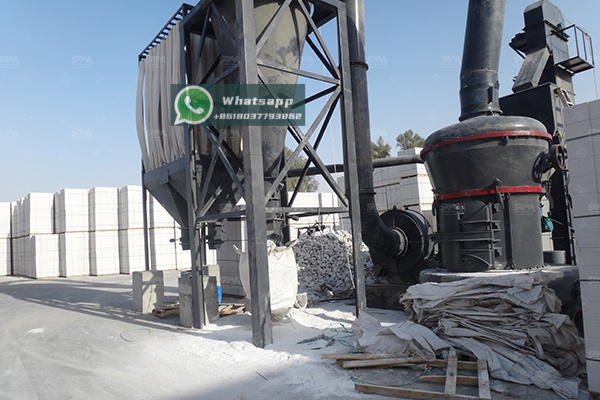

The Spider is the central supporting structure of the Raymond Mill, located at the top of the main frame. It serves as the anchor point for the entire grinding roller assembly. Its primary function is to withstand the significant centrifugal force and vibration generated during the high-speed rotation of the grinding rolls and the revolving blade system. A failure in the spider would lead to catastrophic misalignment and operational failure.
Our engineering team at Shanghai Zenith has designed the spider using high-strength cast steel, manufactured through a precise casting process to ensure internal structural integrity and eliminate potential weak points. The design features reinforced ribs and a strategic geometry that distributes stress evenly across the component. This prevents fatigue cracking and extends the service life of the mill significantly, even under continuous, heavy-duty operation.

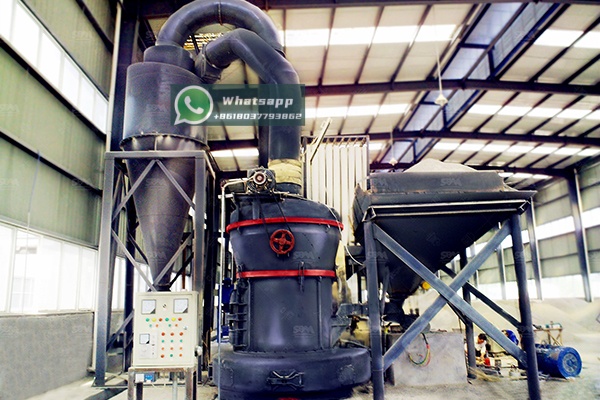

The Plum Frame (also known as the梅花架, Meihua Frame) is a star-shaped frame that connects the grinding rollers to the central crosshead and main shaft. Resembling the petals of a plum blossom, this frame allows the rollers to swing outward and press against the grinding ring due to centrifugal force. This pivotal movement is fundamental to the grinding process.
The engineering challenge here is to create a component that is both rigid enough to transmit power and force, yet designed with precise pivot points to allow for the necessary swinging motion. Our plum frame is machined from a single forging to guarantee uniform material properties and exceptional toughness. Each arm of the frame is balanced to ensure smooth rotation and prevent uneven wear on the grinding rollers. Furthermore, the pivot points are fitted with high-wear-resistant bushings, which are easily replaceable, minimizing downtime for maintenance.
The interaction between the spider and the plum frame is a masterpiece of mechanical synergy. The spider provides a fixed, unwavering central point. The main shaft, supported by the spider, rotates and drives the plum frame. As the plum frame rotates, the grinding rollers, suspended from its arms, swing outward and roll against the stationary grinding ring. The material to be ground is fed into this space and is crushed by the rolling action.
This entire system relies on the absolute stability of the spider and the precise, free-moving articulation of the plum frame. Any deflection in the spider or imbalance in the plum frame would result in vibration, reduced grinding efficiency, and accelerated wear on rollers and the grinding ring. Our design ensures perfect alignment from the central hub to the outermost tip of each grinding roller, guaranteeing consistent fineness and high output.
The theoretical design is only as good as the materials and manufacturing processes behind it. At Shanghai Zenith, we employ advanced metallurgical techniques. The spider is often made from ZG270-500 or similar high-grade cast steel, undergoing normalizing heat treatment to refine its grain structure and enhance its mechanical properties. The plum frame is typically forged from 42CrMo or an equivalent alloy steel, known for its high strength and fatigue resistance, and is subsequently quenched and tempered.
Every critical component undergoes Non-Destructive Testing (NDT), including magnetic particle inspection or ultrasonic testing, to detect any subsurface flaws before assembly. This rigorous quality control is a non-negotiable part of our production philosophy, ensuring that every Raymond Mill we ship is built for decades of reliable service.
While the core principles of the Raymond Mill design remain, continuous innovation has led to more powerful and efficient models. Based on our deep expertise in the engineering of the spider and plum frame, we highly recommend our YGM4121 Raymond Mill for medium to large-scale production requirements. It represents the pinnacle of our design, offering an optimal balance of capacity, fineness, and operational stability.
The following table outlines the key technical parameters of the YGM4121 model:
| Model | Roller Quantity (pcs) | Max.Feed Size (mm) | Discharging Size (mm) | Capacity (t/h) |
|---|---|---|---|---|
| YGM4121 | 5 | 30 | 1.6-0.045 | 5-11 |
For clients whose needs lean towards ultra-fine powder production, our XZM Ultrafine Grinding Mill is an excellent alternative. It builds upon the robust principles of the Raymond Mill but is engineered for even finer outputs, capable of achieving a fineness of 325-2500 mesh. Its design incorporates a more sophisticated classifier system while maintaining the core mechanical reliability expected from Zenith equipment.
The spider and plum frame are not merely parts; they are the embodiment of precision engineering that defines Shanghai Zenith’s Raymond Mill. Their robust design, superior materials, and flawless execution work in concert to deliver a grinding machine that is both powerful and precise. By focusing on these foundational components, we ensure that our mills provide unmatched performance, lower total cost of ownership, and the reliability that our global clients have come to depend on. When you choose a Zenith Raymond Mill, you are investing in engineering excellence that grinds down to the very last detail.
