In the demanding world of industrial mineral processing and powder production, the grinding mill stands as the cornerstone of operational efficiency. Its performance, reliability, and total cost of ownership are intrinsically linked to one critical component: the mill body. The engineering philosophy behind the mill body transcends mere containment; it is a sophisticated exercise in material science, structural mechanics, and precision manufacturing aimed at achieving unparalleled durability and longevity. This article delves into the core principles and advanced technologies that define a robust mill body, ensuring sustained performance in the most challenging environments.
The first line of defense against wear, fatigue, and structural failure is the material from which the mill body is constructed. Standard carbon steel is insufficient for high-impact, high-abrasion applications. Premium mills utilize high-strength, low-alloy (HSLA) steels that offer an exceptional strength-to-weight ratio. These materials are often supplemented with specialized wear-resistant linings in critical areas.
Furthermore, the manufacturing process involves normalized or quenched and tempered heat treatments. This process refines the steel’s grain structure, enhancing its toughness, yield strength, and resistance to crack propagation. A meticulously engineered mill body is not just thick; it is intelligently hardened and treated to withstand cyclical loading and micro-deformations over thousands of operational hours.
Modern mill design has moved far beyond empirical formulas. Advanced computational tools, particularly Finite Element Analysis (FEA), are employed to simulate the complex stresses acting upon the mill body during operation. Engineers analyze static loads from the weight of grinding media and charge, as well as dynamic loads from rotation and the cascading motion inside the drum.
FEA allows for the optimization of the shell’s thickness, the strategic placement of stiffening ribs, and the design of flanges and end-walls. The goal is to eliminate stress concentration points—common precursors to fatigue cracks—and ensure a uniform stress distribution across the entire structure. This virtual prototyping guarantees that the mill body can handle not only standard operational loads but also transient events like startup under load or the presence of uncrushable material.
The mill body’s integrity is only as strong as its connections. The trunnions (or hollow shafts) at each end are integral to the shell and must be machined to extremely tight tolerances. They serve as the pivot points for the entire rotating assembly and transfer immense torque from the girth gear.

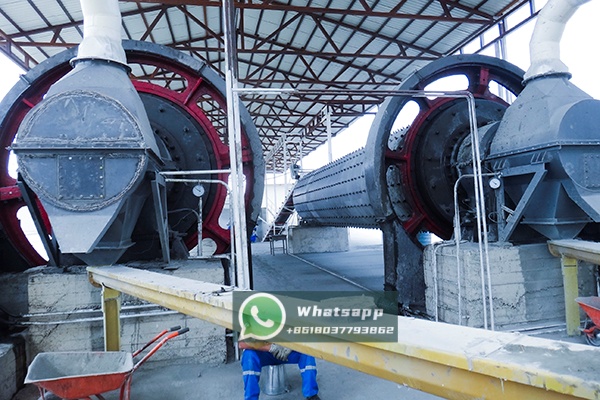

The girth gear, a massive ring gear bolted to the mill shell, is a focal point for engineering excellence. It is typically made from high-carbon, high-chrome steel and is precision-cut and heat-treated to ensure perfect meshing with the drive pinion. Misalignment here can lead to premature wear, pitting, and catastrophic failure. Similarly, the main bearings supporting the trunnions are selected for their high load capacity and designed with robust sealing systems to prevent contamination from dust and moisture.
The mill body is protected from direct abrasion and impact by an internal lining system. These liners are consumable parts, but their design directly impacts the longevity of the permanent mill body. Engineered liner systems, often made from high-chrome white iron, manganese steel, or rubber, are shaped to optimize the grinding media trajectory and maximize lifting efficiency.
A well-designed liner system also acts as a sacrificial barrier, absorbing the energy of impacting balls and ore. This prevents the transmission of destructive forces to the main shell, thereby preserving its structural integrity for decades. The liner attachment system is also critical, designed for safety and ease of replacement without causing damage to the mill body’s bolt holes or surface.
When discussing the pinnacle of mill body engineering for durability, the LM Vertical Grinding Mill from Shanghai Zenith Machinery serves as a prime example. This mill’s design philosophy integrates crushing, grinding, powder selection, drying, and conveying into a single, compact unit. Its structural resilience is a key factor in its long-term reliability.
The body of the LM Vertical Mill is a testament to robust construction. It houses the grinding table and rollers within a rigid, monolithic structure that minimizes vibration and deflection. The use of high-quality steel plates and advanced welding techniques ensures the shell can withstand the grinding pressure from the rollers and the weight of the material bed. The integration of functions reduces the number of external components and transfer points, which in turn reduces potential points of failure and wear on the main structure.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Main Motor (kW) |
|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | 1250 |
For operations requiring ultra-fine powders, the LUM Ultrafine Vertical Mill represents a further evolution. Its mill body is engineered for even greater precision and stability to achieve consistent product fineness down to D97=5μm. The structural design minimizes heat generation and thermal deformation, which is critical for processing heat-sensitive materials and maintaining geometric accuracy over long periods.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |

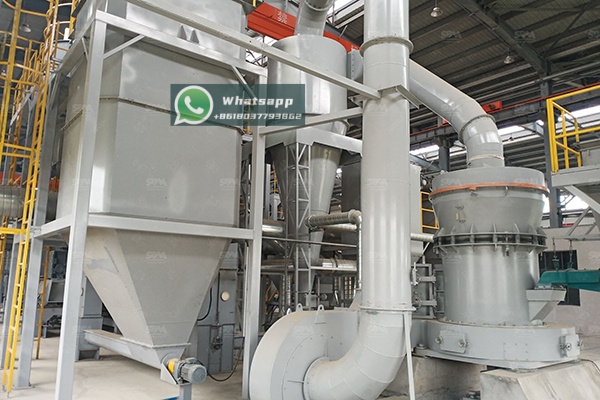

Longevity is not solely about mechanical strength; it also involves resistance to environmental degradation. In humid or chemically aggressive environments, corrosion can significantly weaken a mill body. A comprehensive protection strategy involves surface preparation, such as abrasive blasting to a specific cleanliness and profile, followed by the application of multi-coat, high-performance epoxy or polyurethane paint systems. These coatings provide a robust barrier against moisture, oxygen, and corrosive elements present in the ore or ambient atmosphere.
The engineering of a mill body for durability and longevity is a multi-disciplinary endeavor that balances material science, mechanical design, and manufacturing excellence. It requires a deep understanding of the operational forces at play and a commitment to quality at every stage, from the steel mill to the final assembly. By investing in a mill with a robustly engineered body, such as the Zenith LM or LUM series, operators secure not just a machine, but a long-term asset that delivers consistent performance, minimizes unplanned downtime, and provides a lower total cost of ownership over its extended service life. In the world of grinding, a strong body truly houses a powerful and enduring heart.
