In today’s energy-intensive industries, the efficient processing of petroleum coke (petcoke) and coal mixtures presents significant technical challenges. These materials, characterized by their high calorific value and abrasive nature, require specialized grinding solutions to achieve optimal particle size distribution while maintaining operational efficiency and environmental compliance. Vertical roller mill technology has emerged as the premier solution for these demanding applications.
Petcoke and coal mixtures possess unique characteristics that complicate the grinding process. Petcoke typically exhibits high hardness (3-4 Mohs scale) and abrasiveness, while coal varies significantly in grindability depending on its rank and composition. The combination creates a challenging environment for grinding equipment, requiring robust construction and specialized wear protection.
Moisture content represents another critical factor. Raw petcoke can contain up to 12% moisture, necessitating efficient drying capabilities within the grinding system. Additionally, the explosive nature of fine coal and petcoke dust demands integrated safety features and inert gas systems to prevent combustion hazards.
Vertical roller mills offer distinct advantages over traditional ball mills for petcoke and coal grinding applications. The integrated grinding-drying principle allows simultaneous size reduction and moisture removal, significantly reducing the need for separate drying equipment. This integrated approach results in lower capital investment and reduced plant footprint.
The specific energy consumption of vertical mills is typically 15-30% lower than ball mills, primarily due to more efficient grinding mechanics and reduced ventilation requirements. Furthermore, vertical mills produce a narrower particle size distribution, which is crucial for optimal combustion efficiency in kilns and boilers.
Shanghai Zenith Machinery Co., Ltd., as an excellent manufacturer of ore grinding equipment in China, has developed specialized vertical mill solutions specifically designed for challenging materials like petcoke and coal mixtures. Our extensive research and development in ultra-fine powder grinding technology has yielded innovative designs that address the unique requirements of these applications.

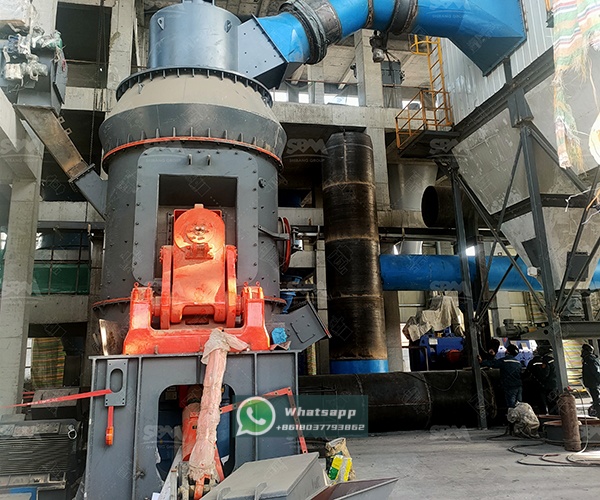

For processing petcoke and coal mixtures, we highly recommend our LM Vertical Grinding Mill series. This equipment integrates five critical functions—crushing, grinding, powder selection, drying, and material conveying—into a single compact unit. The vertical design minimizes floor space requirements while maximizing operational efficiency.
The LM Vertical Grinding Mill features a specially designed grinding table and rollers that withstand the abrasive nature of petcoke. The integrated high-efficiency separator ensures precise particle size control, while the robust planetary gearbox provides reliable power transmission under demanding conditions.
| Model | Plate diameter (mm) | Capacity (t/h) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|
| LM130M | 1300 | 10-17 | <38 | 185 |
| LM220M | 2200 | 35-50 | <50 | 500 |
| LM280M | 2800 | 60-90 | <50 | 900 |

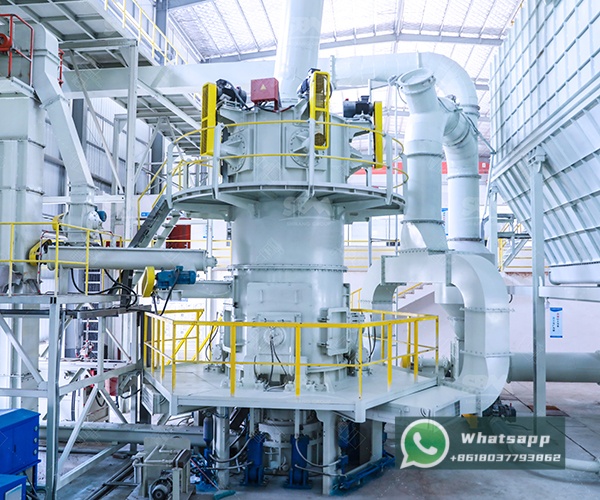

For operations requiring ultra-fine grinding of petcoke-coal mixtures, our LUM Ultrafine Vertical Mill represents the cutting edge of grinding technology. This advanced mill incorporates intelligent control systems that automatically adjust operational parameters to maintain optimal performance despite variations in feed material characteristics.
The LUM series features a unique grinding roller and table design that minimizes wear while maximizing grinding efficiency. The integrated classifying system ensures consistent product quality, with the ability to achieve final product fineness down to 5 microns. This makes it particularly suitable for applications requiring precise particle size control for enhanced combustion characteristics.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
Successful operation of vertical mills for petcoke-coal mixtures requires careful attention to several key parameters. Feed material proportioning should be controlled to maintain consistent grindability, while moisture content must be monitored to ensure optimal drying performance. The grinding pressure and classifier speed should be adjusted based on the specific mixture ratio and desired product fineness.
Wear management represents a critical aspect of mill operation. Regular inspection and timely replacement of wear parts, particularly grinding rollers and table segments, ensures consistent performance and prevents unexpected downtime. Shanghai Zenith’s mills incorporate advanced wear protection materials that significantly extend service life in abrasive applications.
Modern vertical mills from Shanghai Zenith incorporate comprehensive environmental protection features. The closed-system design minimizes dust emissions, while integrated bag filters ensure exhaust gas cleanliness complies with the strictest environmental standards. For petcoke and coal grinding applications, optional inert gas systems provide explosion protection by maintaining oxygen levels below combustion thresholds.
The advanced control systems continuously monitor critical parameters including bearing temperatures, vibration levels, and pressure differentials. Automated shutdown sequences activate if parameters exceed safe operating limits, protecting both equipment and personnel.
A major cement plant in Southeast Asia recently implemented Shanghai Zenith’s LM280M Vertical Mill for grinding a 70:30 petcoke-coal mixture. The installation resulted in a 22% reduction in specific energy consumption compared to their previous ball mill system. Product fineness improved significantly, with 90% of particles below 90 microns, contributing to enhanced combustion efficiency in their kiln system.
The plant reported additional benefits including reduced maintenance costs due to the mill’s robust construction and readily accessible wear parts. The integrated drying capability eliminated the need for a separate dryer, reducing both capital and operating costs.
The evolution of vertical mill technology continues to focus on increased efficiency, reduced environmental impact, and enhanced digitalization. Shanghai Zenith is at the forefront of these developments, incorporating Industry 4.0 principles into our grinding solutions. Future innovations will include predictive maintenance algorithms, remote operational monitoring, and advanced process optimization through artificial intelligence.
As environmental regulations become increasingly stringent, our development efforts prioritize technologies that minimize carbon footprint while maximizing resource efficiency. This includes exploring alternative grinding aids and developing systems that can efficiently process alternative fuels with varying characteristics.
Vertical mill technology represents the optimal solution for grinding petcoke and coal mixtures, offering significant advantages in energy efficiency, product quality, and operational flexibility. Shanghai Zenith’s LM Vertical Grinding Mill and LUM Ultrafine Vertical Mill series provide specialized solutions tailored to the unique challenges of these applications.
With decades of experience in grinding equipment manufacturing and continuous innovation in ultra-fine powder processing, Shanghai Zenith remains committed to providing our customers with reliable, efficient, and environmentally responsible grinding solutions. Our comprehensive technical support and service network ensure optimal performance throughout the equipment lifecycle, making us the preferred partner for petcoke and coal grinding applications worldwide.
