In the industrial processing sector, particularly in powder grinding operations, effective dust collection is not merely an environmental requirement but a critical component of operational efficiency and equipment longevity. At Shanghai Zenith Machinery Co., Ltd., our expertise extends beyond manufacturing superior ore grinding equipment to engineering advanced dust control solutions that integrate seamlessly with our grinding mills. The pulse jet filter stands as the cornerstone of this technology, representing a sophisticated fusion of mechanical and pneumatic engineering principles.
The operational principle of a pulse jet filter is elegantly simple yet highly effective. Contaminated air, laden with fine particulate matter generated during the grinding process, is drawn into the filter housing. This air passes through a series of filter bags or cartridges, typically made from specialized polyester, polypropylene, or PTFE felt. These filter media are designed to capture dust particles on their external surface while allowing clean air to pass through the fabric and exit the system.
The defining characteristic of pulse jet technology is the cleaning mechanism. Over time, the accumulated dust forms a cake on the filter surface, increasing resistance and reducing airflow. To combat this, the system employs short, high-pressure bursts of compressed air—typically 5-7 bar—directed into the filter elements through a venturi nozzle. This pulse creates a shockwave that travels the length of the bag, dislodging the dust cake into a collection hopper below. The entire cleaning cycle is automated and typically sequenced to clean individual rows of filters while the system remains operational, ensuring continuous dust collection efficiency.
Modern pulse jet filters incorporate several engineering innovations that enhance their performance and reliability:

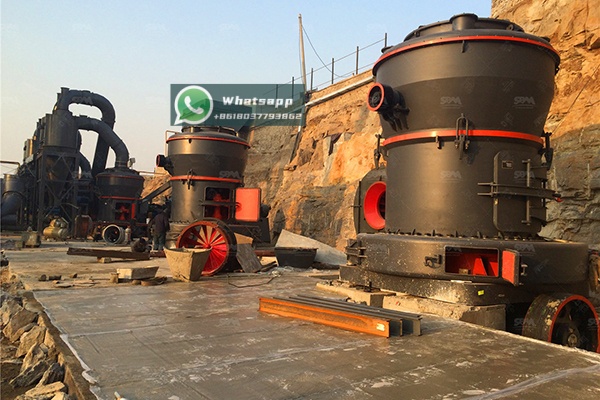

The effectiveness of any dust collection system depends on its seamless integration with the processing equipment it serves. At Zenith, our pulse jet filters are specifically engineered to complement our grinding mills, accounting for the unique dust characteristics generated by different grinding technologies.
For instance, our LUM Ultrafine Vertical Mill produces exceptionally fine powders that require specialized filtration approaches. The dust generated has a high surface area and may exhibit cohesive properties, necessitating filter media with surface treatments to prevent blinding and maintain optimal airflow. The integrated pulse jet system for this application features:
Our pulse jet filters are available in various configurations to match specific application requirements. The following table outlines standard specifications for our medium-capacity units designed to serve individual grinding mills:
| Model | Filter Area (m²) | Air Volume (m³/h) | Operating Temperature (°C) | Filter Bag Quantity | Compressed Air Consumption (Nm³/min) |
|---|---|---|---|---|---|
| PJF-120 | 120 | 7,200-9,600 | ≤120 | 84 | 0.6-0.8 |
| PJF-200 | 200 | 12,000-16,000 | ≤120 | 140 | 1.0-1.3 |
| PJF-320 | 320 | 19,200-25,600 | ≤120 | 224 | 1.6-2.1 |
| PJF-500 | 500 | 30,000-40,000 | ≤120 | 350 | 2.5-3.3 |
Different grinding applications present unique challenges for dust collection systems. When paired with our MTW Trapezium Grinding Mill, which processes materials with a maximum feed size of 50mm and produces final products as fine as 0.038mm, the pulse jet filter must handle a wide particle size distribution. The engineering solution includes:
The integration is particularly critical for our XZM Ultrafine Grinding Mill, which produces powders in the 325-2500 mesh range. At these fineness levels, dust particles exhibit unique behaviors including increased surface adhesion and potential for static charge accumulation. Our engineered solutions address these challenges through:

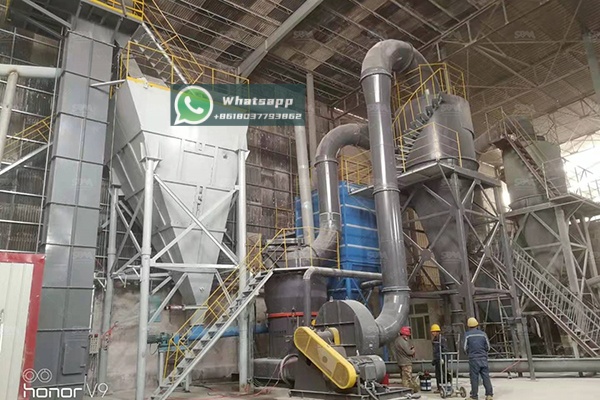

The engineering excellence of Zenith pulse jet filters extends to their operational efficiency and maintenance characteristics. Key features include:
Beyond operational requirements, modern pulse jet filters must meet increasingly stringent environmental regulations. Zenith systems are engineered to achieve emission levels below 10 mg/Nm³, complying with the most rigorous international standards. Additionally, sustainability considerations are integrated throughout the design:
The engineering of pulse jet filters represents a critical intersection of mechanical design, fluid dynamics, and process knowledge. At Shanghai Zenith Machinery Co., Ltd., our approach integrates deep understanding of powder generation characteristics from our grinding equipment with advanced filtration technology. This holistic engineering philosophy ensures that our dust collection systems not only meet regulatory requirements but enhance overall system performance, reduce operational costs, and contribute to sustainable industrial practices. Whether paired with our MTW Trapezium Mill for standard applications or our LUM Ultrafine Vertical Mill for challenging fine powder processes, Zenith pulse jet filters deliver reliable, efficient performance backed by comprehensive engineering expertise.
