In the realm of industrial powder processing, the efficiency and quality of grinding operations are fundamentally dependent on the sophisticated engineering of internal air circulation systems. At Shanghai Zenith Machinery Co., Ltd., our expertise in developing advanced ore grinding equipment has led to significant breakthroughs in this critical area, particularly within our European-style grinding mills. This article delves into the scientific principles and engineering innovations that make our internal air circulation systems a cornerstone of high-performance grinding technology.
The internal air circulation system in a grinding mill serves multiple crucial functions: transporting ground materials, controlling temperature, classifying particles, and ensuring dust-free operation. Unlike conventional systems that rely on external fans with limited control, our European mills incorporate integrated air circulation that creates a closed-loop system with precise regulation capabilities.
The physics behind this system revolves around creating controlled air currents that follow specific paths through the grinding chamber. As materials are ground between the rollers and grinding table, the generated fine particles are immediately carried upward by the rising air current. This immediate removal prevents over-grinding and reduces energy consumption significantly. The air velocity is carefully calibrated to carry only particles of the desired fineness, while heavier particles fall back to the grinding table for further processing.
Temperature control represents another critical aspect where air circulation proves essential. The grinding process generates substantial heat through friction and mechanical energy conversion. Without proper thermal management, this heat can degrade material quality, cause chemical changes in sensitive materials, and reduce equipment lifespan. Our European mills address this challenge through strategically designed air flow patterns that dissipate heat efficiently while maintaining optimal operating temperatures.
The thermodynamic efficiency of our systems stems from the counter-current design where incoming air at ambient temperature interacts with the hottest zones first, creating a gradual temperature gradient that minimizes thermal shock to both materials and equipment. This approach not only protects material integrity but also reduces cooling requirements, contributing to substantial energy savings.
Perhaps the most sophisticated application of air circulation in our mills lies in the integrated classification system. Traditional grinding systems require separate classifiers, adding complexity and energy requirements. Our European mills incorporate the classifying function directly into the air circulation path, utilizing centrifugal forces and air velocity gradients to separate particles according to size and density.
The science behind this integrated classification involves careful manipulation of air flow patterns to create zones of differing velocity and turbulence. As the air-particle mixture rises through the mill housing, the expanding cross-section naturally decreases air velocity, allowing larger particles to fall out of suspension. Additional classifier blades or dynamic separators can further refine this separation process, enabling precise control over final product fineness without additional energy-intensive equipment.

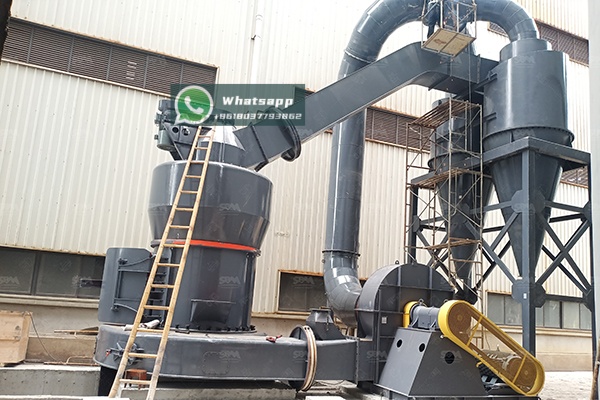

Our MTW Trapezium Grinding Mill exemplifies the sophisticated application of air circulation science. This multiple-patent protected system features a uniquely designed air channel that creates optimal flow patterns for both material transport and classification. The curved air duct design reduces air flow resistance by approximately 30% compared to conventional straight ducts, significantly lowering power consumption while maintaining transport efficiency.
The MTW series incorporates several innovations in air circulation management:
The technical specifications of our MTW series demonstrate the practical benefits of this advanced air circulation system:
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 | 110 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 | 200 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 | 315 |
Notably, the fan motor power requirements in the MTW series are significantly optimized through the advanced air circulation design, contributing to overall energy efficiency while maintaining high capacity throughput.
For applications requiring ultra-fine powders, our LUM Ultrafine Vertical Mill represents the pinnacle of air circulation engineering. This system integrates grinding, drying, classifying, and conveying through a sophisticated air flow design that maintains laminar flow conditions even at high particle concentrations. The LUM series incorporates a unique double L-shaped roller grinding path that creates optimal conditions for air-material interaction.
The air circulation system in the LUM mill features several groundbreaking innovations:
The performance capabilities of our LUM Ultrafine Vertical Mill series highlight the effectiveness of this advanced air circulation approach:
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The remarkable fineness control (D97 of 5-30μm) achieved by the LUM series stems directly from its precision air classification system, which can maintain tight particle size distributions even at high production rates.
The development of our advanced air circulation systems relies heavily on Computational Fluid Dynamics (CFD) modeling. Through sophisticated simulation software, our engineers can visualize and optimize air flow patterns before physical prototyping. This digital approach allows us to identify potential turbulence zones, optimize duct geometries, and predict particle trajectories with remarkable accuracy.
Our CFD analysis focuses on several key parameters:
The insights gained from these simulations have led to numerous design improvements, including the curved air guide vanes in our MTW series and the optimized classifier geometry in our LUM mills. This scientific approach to air circulation design represents a significant advancement over the trial-and-error methods historically used in grinding mill development.
Beyond performance improvements, the advanced air circulation systems in our European mills deliver significant environmental benefits. The closed-loop design minimizes dust emissions to near-zero levels, addressing one of the primary environmental concerns in powder processing operations. Additionally, the energy efficiency gains from optimized air flow directly translate to reduced carbon emissions per ton of processed material.
The environmental advantages of our systems include:
Looking ahead, Shanghai Zenith Machinery continues to innovate in air circulation technology for grinding mills. Current research focuses on adaptive air flow systems that can automatically adjust to varying material characteristics, artificial intelligence-assisted control systems for optimal performance under changing conditions, and even more compact designs that maintain performance while reducing footprint.
Emerging technologies being explored include:
These developments promise to further enhance the efficiency, reliability, and environmental performance of grinding systems in the years ahead.
The science behind internal air circulation in grinding mills represents a critical frontier in powder processing technology. Through sophisticated application of fluid dynamics, thermodynamics, and advanced materials science, Shanghai Zenith Machinery has developed grinding systems that deliver unprecedented levels of performance, efficiency, and environmental compliance. Our MTW Trapezium Grinding Mill and LUM Ultrafine Vertical Mill stand as testaments to this technological advancement, offering industry-leading capabilities grounded in solid scientific principles.
As manufacturing continues to evolve toward greater efficiency and sustainability, the role of optimized air circulation in grinding operations will only grow in importance. Through continued research and development, we remain committed to pushing the boundaries of what’s possible in powder processing technology, delivering solutions that meet the evolving needs of industry while minimizing environmental impact.
