In the world of industrial mineral processing, grinding mills represent the cornerstone of size reduction operations. The efficiency and effectiveness of these mills are largely governed by sophisticated material circulation systems—both internal and external—that work in harmony to optimize particle size reduction, classification, and product quality. Understanding these circulation mechanisms is crucial for selecting the right equipment and maximizing operational performance.
Material circulation in grinding mills can be broadly categorized into two distinct yet interconnected systems: internal circulation within the mill chamber itself, and external circulation through auxiliary equipment. Both systems play vital roles in determining the final product characteristics, energy efficiency, and overall operational stability.
Internal circulation refers to the movement of material within the grinding chamber during operation. This complex flow pattern is influenced by multiple factors including mill design, rotational speed, grinding media configuration, and material properties.
In vertical grinding mills, internal circulation is particularly sophisticated. The material enters through the center of the grinding table and is distributed outward by centrifugal force. As it moves across the rotating table, it passes under the grinding rollers where size reduction occurs. The ground material then reaches the periphery of the table, where it encounters the airflow system that carries finer particles upward while heavier, coarser particles fall back onto the grinding table for further processing.
This internal classification and recycling mechanism ensures that particles receive the appropriate amount of grinding energy—fine particles are quickly removed from the grinding zone to prevent overgrinding, while coarse particles continue circulating until they reach the target fineness. The efficiency of this internal circulation directly impacts specific energy consumption, wear rates, and product quality consistency.
External circulation involves the movement of material outside the main grinding chamber, typically through classifiers, separators, and recycling systems. This external loop serves several critical functions:
Modern grinding systems often incorporate high-efficiency classifiers that can precisely separate particles based on size, density, and other characteristics. The rejected coarse material is returned to the mill inlet, creating a continuous external circulation loop that significantly improves overall system efficiency.
Shanghai Zenith Machinery Co., Ltd., as an excellent manufacturer of ore grinding equipment, has developed sophisticated technologies that optimize both internal and external circulation patterns. Their extensive research in ultra-fine powder grinding has led to innovative designs that maximize circulation efficiency.

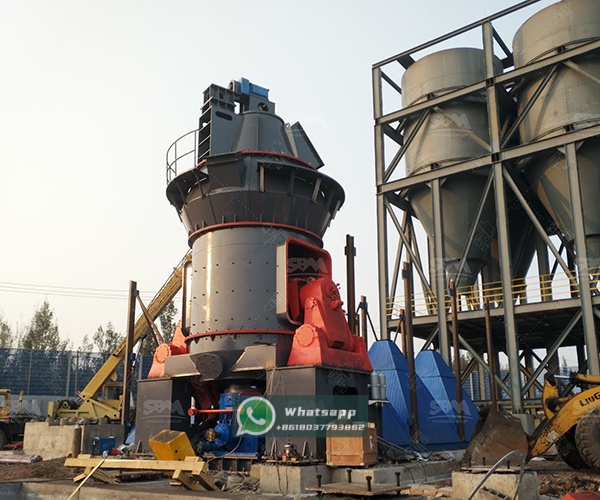

Among Zenith’s impressive product portfolio, the LM Vertical Grinding Mill stands out for its exceptional circulation management. This mill integrates five functions—crushing, grinding, powder selection, drying, and material conveying—into a single, compact unit. The vertical design naturally facilitates efficient internal material flow while minimizing energy consumption.
| Model | Plate diameter (mm) | Capacity (t/h) | Output fineness (μm) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
The LM Vertical Mill’s internal circulation system utilizes a unique grinding curve and optimized roller design that creates multiple grinding zones within the chamber. This allows for progressive size reduction with minimal energy waste. The external circulation is managed through integrated high-efficiency separators that ensure precise classification and optimal system loading.
For applications requiring ultra-fine grinding, Zenith’s LUM Ultrafine Vertical Mill represents the pinnacle of circulation optimization. This advanced mill integrates grinding, drying, classifying, and transportation in a compact design that occupies minimal space while delivering exceptional performance.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The LUM series features an innovative grinding mechanism that creates superior internal circulation patterns, ensuring uniform grinding conditions throughout the chamber. The external circulation system incorporates intelligent controls that automatically adjust operating parameters based on real-time feedback, maintaining optimal circulation rates under varying feed conditions.
Airflow represents a critical component in both internal and external circulation systems. In most modern grinding mills, air serves multiple purposes:
Zenith’s grinding mills feature optimized airflow designs that ensure efficient material transport while minimizing pressure drops and energy consumption. The careful balance between air volume, velocity, and temperature is crucial for maintaining stable circulation patterns and consistent product quality.
Different materials and product requirements demand specific circulation strategies. Zenith’s diverse product range addresses these varying needs:
For coarse to medium grinding applications, the MTW Trapezium Grinding Mill offers robust circulation systems capable of handling feed sizes up to 50mm. Its multiple-patent design ensures stable internal material flow while the external circulation can be customized with various classifier options.
For ultra-fine powder production, the XZM Ultrafine Grinding Mill provides precise circulation control, achieving output fineness between 325-2500 mesh. The mill’s sophisticated internal classification system minimizes overgrinding while maintaining high throughput rates.
Modern grinding mills increasingly rely on sophisticated control systems to optimize circulation patterns. Zenith’s advanced mills incorporate intelligent automation that continuously monitors and adjusts:
These control systems use advanced algorithms to maintain optimal circulation conditions, automatically compensating for variations in feed material characteristics and operating conditions.
The science behind internal and external circulation in mills continues to evolve, driven by the dual demands of higher efficiency and finer product specifications. Shanghai Zenith Machinery remains at the forefront of this evolution, with continuous research and development focused on optimizing circulation patterns across their entire product range.
As grinding technology advances, we can expect to see even more sophisticated circulation systems incorporating real-time particle size analysis, predictive maintenance algorithms, and fully autonomous operation. The fundamental principles of efficient material circulation, however, will remain central to grinding mill performance, making understanding these concepts essential for anyone involved in mineral processing and powder production.
Through their comprehensive product portfolio and ongoing innovation, Shanghai Zenith Machinery demonstrates that optimal circulation management is not just about moving material through a system—it’s about creating the precise conditions necessary for efficient size reduction, classification, and product quality control.
