In the world of industrial powder processing, achieving precise particle size distribution (PSD) curves is not merely a technical goal—it’s a fundamental requirement for product quality and performance. Steep PSD curves, characterized by narrow particle size ranges and minimal fines or coarse particles, represent the pinnacle of grinding precision. This article explores the scientific principles and technological advancements that enable modern ultrafine mills to produce such exceptional particle distributions.
Particle Size Distribution curves graphically represent the range of particle sizes present in a powdered material. A steep PSD curve indicates that most particles fall within a very narrow size range, which translates to consistent product quality, improved flow characteristics, enhanced packing density, and predictable performance in downstream applications. The steepness of these curves is influenced by multiple factors including grinding mechanism, classification efficiency, and operational parameters.
Modern ultrafine mills employ sophisticated grinding mechanisms that go beyond simple impact or compression. The most effective systems combine multiple grinding forces—including shear, attrition, and compression—to achieve uniform particle reduction. This multi-force approach ensures that particles are broken down consistently rather than randomly, which is essential for producing narrow size distributions.
Shanghai Zenith Machinery Co., Ltd., as an excellent manufacturer of ore grinding equipment, has made significant advancements in this field. Our research and development focus on optimizing these grinding mechanisms to deliver superior PSD control across various material types and production requirements.
Perhaps the most critical component in achieving steep PSD curves is the classification system. Advanced air classifiers integrated into modern grinding mills provide real-time separation of particles based on size. High-efficiency classifiers with precise cut-point control ensure that only properly sized particles exit the grinding chamber, while oversized particles are returned for further processing.
The integration of dynamic classifiers with adjustable rotor speeds and airflow patterns allows operators to fine-tune the classification process, enabling the production of powders with exceptionally narrow size distributions. This technological advancement represents a significant leap beyond traditional screening methods.
Among Shanghai Zenith’s comprehensive range of grinding equipment, the LUM Ultrafine Vertical Mill stands out as a premier solution for achieving steep PSD curves. This advanced mill integrates multiple functions—grinding, drying, classifying, and transportation—into a single, compact unit designed specifically for precision powder production.
The LUM series features several technological innovations that contribute to its exceptional PSD control:
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The LUM mill’s ability to maintain consistent D97 values across its capacity range makes it particularly valuable for applications requiring tight particle size specifications, such as pharmaceuticals, high-performance ceramics, and specialty chemicals.
For operations requiring exceptional fineness with broad material compatibility, Zenith’s XZM Ultrafine Grinding Mill offers outstanding performance. This mill is specifically engineered for superfine powder production, capable of achieving output fineness ranging from 325 to 2500 mesh while maintaining excellent PSD characteristics.
The XZM series incorporates several features that contribute to its precision grinding capabilities:
| Model | Working diameter (mm) | Max feed size (mm) | Final size (mesh) | Output (kg/h) | Main motor power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 | 315 |
Achieving steep PSD curves requires careful optimization of multiple operational parameters. Feed rate consistency, grinding pressure, classifier speed, and airflow rates must be precisely controlled and coordinated. Modern control systems with automated feedback loops enable real-time adjustment of these parameters to maintain optimal grinding conditions.
Material characteristics also play a crucial role. Hardness, moisture content, and feed size distribution all influence the final PSD. Zenith’s grinding mills are designed with the flexibility to accommodate varying material properties while maintaining consistent output quality.

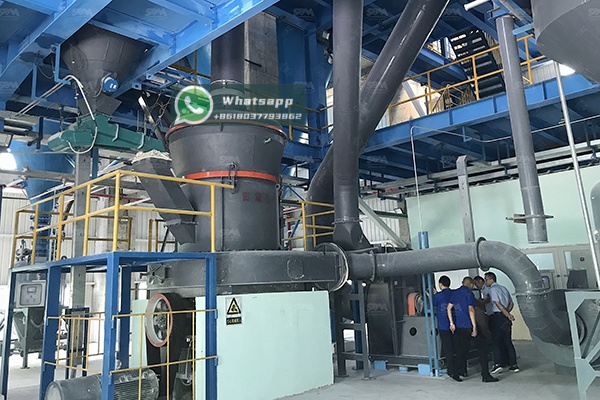

The ability to produce powders with narrow particle size distributions opens opportunities across numerous industries:
The pursuit of even steeper PSD curves continues to drive innovation in grinding technology. Emerging trends include the integration of artificial intelligence for predictive process optimization, advanced sensor technology for real-time particle size monitoring, and novel grinding media designs for enhanced efficiency.
Shanghai Zenith Machinery remains at the forefront of these developments, continuously refining our grinding technologies to meet the evolving demands of precision powder processing. Our commitment to research and development ensures that our customers have access to the most advanced solutions for achieving their specific PSD requirements.
The science of achieving steep PSD curves with ultrafine mills represents a sophisticated intersection of mechanical engineering, process control, and materials science. Through advanced grinding mechanisms, precision classification systems, and optimized operational parameters, modern mills like Zenith’s LUM Ultrafine Vertical Mill and XZM Ultrafine Grinding Mill can consistently produce powders with narrow particle size distributions that meet the most demanding application requirements.
As industrial applications continue to demand higher levels of powder precision, the ability to control and optimize PSD curves will remain a critical competitive advantage. With proper equipment selection, process understanding, and operational expertise, manufacturers can leverage this capability to create superior products across diverse market segments.
