In the realm of mineral processing and industrial powder production, achieving precise control over particle size and shape has emerged as a critical factor determining product quality, performance, and economic value. Modern grinding technology has evolved far beyond simple size reduction, focusing increasingly on the science of particle morphology control to meet the stringent requirements of advanced materials and industrial applications.
Particle shape significantly influences material properties including flowability, packing density, reactivity, and mechanical strength. In industries such as pharmaceuticals, ceramics, paints, and advanced composites, specific particle shapes are essential for optimal performance. Spherical particles, for instance, offer superior flow characteristics and packing density, while angular particles provide better mechanical interlocking in composite materials.
The transition from traditional grinding methods to sophisticated particle engineering represents a paradigm shift in industrial processing. Modern grinding mills must not only achieve target particle sizes but also control shape parameters such as aspect ratio, roundness, and surface texture with unprecedented precision.
Particle shape during grinding is determined by the complex interplay of several factors: the mechanical action of the grinding media, the material properties of the feed stock, the energy input, and the specific grinding mechanism employed. Different grinding principles—impact, attrition, compression, and shear—produce distinct particle morphologies.
Impact-dominated processes typically generate more angular particles with fresh fracture surfaces, while attrition-based grinding tends to produce rounded particles through gradual wearing of sharp edges. Understanding these fundamental relationships allows engineers to select appropriate grinding technologies for specific shape requirements.
Modern vertical grinding mills represent a significant advancement in particle shape control technology. Shanghai Zenith Machinery’s LM Vertical Grinding Mill series exemplifies this approach, integrating multiple functions—crushing, grinding, powder selection, drying, and material conveying—into a single, efficient system.
| Model | Plate diameter (mm) | Capacity (t/h) | Output fineness (μm) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |

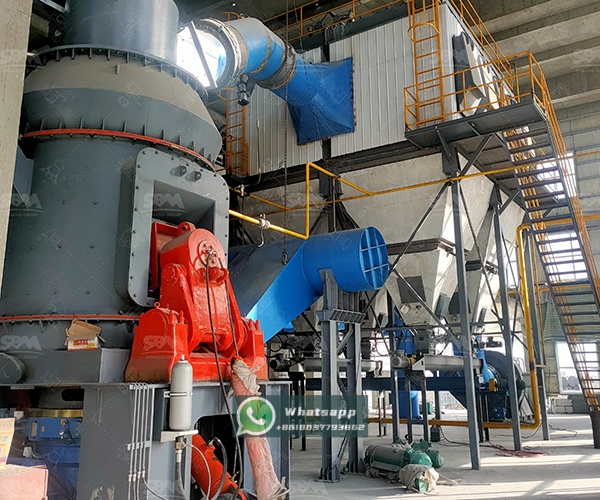

The LM Vertical Grinding Mill’s unique grinding curve and optimized grinding pressure distribution enable precise control over particle morphology. The integrated classifier system allows real-time adjustment of particle residence time, directly influencing the final shape characteristics. This technology is particularly effective for producing uniform, well-rounded particles with minimal flakiness ratio.
For applications requiring extreme fineness with controlled particle shape, ultrafine grinding mills offer unparalleled precision. Shanghai Zenith’s LUM Ultrafine Vertical Mill represents the cutting edge in this category, specifically designed to produce products with high content of end-fines while maintaining optimal particle morphology.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The LUM mill’s advanced grinding mechanism combines multiple grinding principles to achieve superior shape control. The intelligent control system monitors and adjusts grinding parameters in real-time, ensuring consistent particle morphology even with varying feed characteristics. This capability is particularly valuable for high-value applications where particle shape directly impacts product performance.
Modern grinding mills incorporate several innovative features specifically designed to improve particle shape control:
Advanced Classifier Systems: High-efficiency dynamic classifiers allow precise cut-point control and classification efficiency, directly influencing particle shape by controlling residence time and selective removal of properly shaped particles.
Optimized Grinding Media: The selection and configuration of grinding media—whether balls, rollers, or other elements—significantly impact the dominant breakage mechanism and resulting particle morphology.
Intelligent Control Systems: Modern mills employ sophisticated control algorithms that continuously adjust operational parameters based on real-time feedback, maintaining optimal conditions for consistent particle shape production.
In the pharmaceutical industry, the implementation of advanced grinding technology has enabled manufacturers to produce active pharmaceutical ingredients with optimized morphology for improved dissolution rates and bioavailability. Similarly, in the ceramics industry, controlled particle shape has led to enhanced packing density and reduced porosity in final products.
The paint and coatings industry has particularly benefited from advances in particle shape control. Precisely engineered particle morphologies have enabled formulations with improved opacity, gloss control, and application properties, directly attributable to the capabilities of modern grinding equipment.
The future of particle shape control in grinding mills points toward even greater precision and integration. Emerging technologies include:
AI-Driven Optimization: Machine learning algorithms that predict optimal grinding parameters for specific shape requirements based on material characteristics and desired outcomes.
Multi-Stage Hybrid Systems: Integrated grinding systems that combine different grinding principles in sequence to achieve complex particle morphology targets.
Real-Time Morphology Monitoring: Advanced sensor technology that provides continuous feedback on particle shape characteristics, enabling closed-loop control of grinding operations.
The science of particle shape control represents a sophisticated frontier in grinding technology. As industrial requirements become increasingly specific and demanding, the ability to engineer particle morphology with precision has become a critical competitive advantage. Through continuous innovation in mill design, control systems, and process understanding, manufacturers like Shanghai Zenith Machinery are pushing the boundaries of what’s possible in particle engineering.
The integration of multiple grinding functions, advanced classification technology, and intelligent control systems in modern grinding mills enables unprecedented control over particle characteristics. As this field continues to evolve, we can expect even more sophisticated solutions for particle shape control, further expanding the applications and performance of engineered powders across diverse industries.
