In modern industrial processing, the simultaneous grinding and drying of materials represents a significant technological advancement that offers substantial benefits in terms of efficiency, energy consumption, and operational simplicity. This integrated approach eliminates the need for separate drying and grinding equipment, reducing both capital investment and operational costs while improving overall process control.

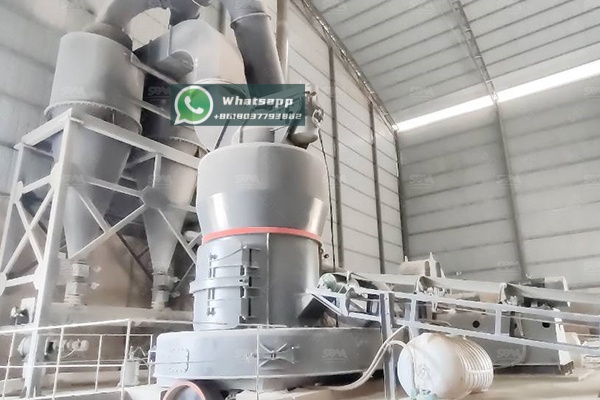

The technical foundation of simultaneous grinding and drying relies on the intimate contact between grinding media, material particles, and hot gas streams. As materials are ground to finer particle sizes, their surface area increases exponentially, creating ideal conditions for efficient heat and mass transfer. The drying process occurs concurrently as hot gases (typically ranging from 300°C to 600°C) flow through the grinding chamber, evaporating moisture from freshly exposed particle surfaces.
The efficiency of this combined process depends on several critical factors: gas temperature and velocity, material residence time, particle size distribution, and the specific thermal properties of the material being processed. Optimal control of these parameters ensures complete moisture removal without compromising grinding efficiency or causing thermal degradation of the product.
Combined grinding and drying systems offer numerous technical advantages over conventional sequential processing. The most significant benefits include:
Despite their advantages, combined grinding and drying systems present specific technical challenges that require careful engineering solutions. Material sticking and buildup in the grinding chamber can occur when processing high-moisture content materials. This is typically addressed through optimized chamber design, appropriate selection of construction materials, and precise control of gas temperature and flow rates.
Another challenge involves maintaining consistent product quality when processing materials with variable moisture content. Advanced control systems with real-time monitoring of temperature, pressure, and motor power consumption can automatically adjust operational parameters to maintain consistent product specifications.
As a leading manufacturer in the field of industrial grinding equipment, Shanghai Zenith Machinery has developed specialized mills that excel in simultaneous grinding and drying applications. Our extensive research and development in ultra-fine powder grinding has resulted in innovative designs that optimize both size reduction and thermal processing.
Among our comprehensive product range, the LM Vertical Grinding Mill stands out as an exceptional solution for combined grinding and drying applications. This advanced mill integrates five critical functions—crushing, grinding, powder selection, drying, and material conveying—into a single, highly efficient unit.
The LM series features a unique design where hot gases are introduced directly into the grinding chamber, creating optimal conditions for simultaneous drying and size reduction. The vertical arrangement allows for natural material flow and efficient gas-solid contact, while the integrated classifier ensures precise control of final product fineness.
| Model | Plate diameter (mm) | Capacity (t/h) | Output fineness (μm) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
For applications requiring ultra-fine products with precise moisture control, our LUM Ultrafine Vertical Mill represents the pinnacle of grinding and drying technology. This advanced mill incorporates intelligent control systems that automatically adjust grinding pressure, gas temperature, and classifier speed to maintain optimal processing conditions.
The LUM series features a unique grinding roller and grinding ring design that ensures stable operation even with varying feed moisture content. The integrated high-efficiency classifier provides sharp particle size cuts, while the optimized gas flow pattern maximizes thermal efficiency.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The successful implementation of combined grinding and drying systems requires careful consideration of material characteristics. Materials with high moisture content (typically above 15-20%) may require pre-drying or specialized mill configurations. Abrasive materials necessitate wear-resistant construction, while heat-sensitive products demand precise temperature control systems.
Shanghai Zenith’s engineering team provides comprehensive technical support to ensure optimal equipment selection and configuration for specific applications. Our mills can be customized with various wear protection systems, heat recovery options, and advanced control packages to match unique processing requirements.
To maximize the benefits of combined grinding and drying systems, operators should adhere to several key practices:
The future of combined grinding and drying technology focuses on enhanced energy efficiency, digitalization, and sustainability. Emerging trends include the integration of heat recovery systems, AI-based optimization algorithms, and the use of alternative energy sources for heating process gases.
Shanghai Zenith continues to invest in research and development to address these evolving market demands. Our ongoing innovation in mill design, material science, and control systems ensures that our customers benefit from the latest technological advancements in simultaneous grinding and drying.
Simultaneous grinding and drying represents a sophisticated technical solution that offers substantial benefits across numerous industrial applications. The integration of these processes in single equipment units, such as Shanghai Zenith’s LM Vertical Grinding Mill and LUM Ultrafine Vertical Mill, provides operators with efficient, compact, and cost-effective processing solutions.
As industry continues to demand higher efficiency and lower environmental impact, the importance of well-engineered combined grinding and drying systems will only increase. Through continuous innovation and customer-focused engineering, Shanghai Zenith remains committed to providing cutting-edge solutions that meet these evolving challenges.
