The demand for high-performance conductive coatings and inks has surged in recent years, driven by advancements in printed electronics, flexible displays, sensors, and energy storage devices. At the heart of many of these applications lies a critical material: graphite. However, conventional graphite powders often fail to meet the stringent requirements for particle size distribution, morphology, and electrical conductivity needed for advanced applications. This is where ultrafine grinding technology becomes indispensable.
Graphite’s electrical conductivity is intrinsically linked to its particle size and structural integrity. When producing conductive coatings and inks, the particle size directly affects several key parameters:
Traditional grinding methods often damage graphite’s crystalline structure, reducing its electrical conductivity. The challenge lies in reducing particle size while preserving the material’s inherent conductive properties.
Modern ultrafine grinding equipment must address multiple challenges simultaneously: achieving sub-micron particle sizes, maintaining narrow size distribution, preserving material properties, and ensuring energy efficiency. Several grinding technologies have emerged as particularly effective for graphite processing.
Vertical grinding mills represent a significant advancement in graphite processing technology. These systems integrate multiple functions—crushing, grinding, classification, drying, and transportation—into a single, compact unit. The vertical configuration allows for efficient material flow and reduced energy consumption compared to traditional horizontal mills.
For applications requiring the finest particle sizes, ultrafine vertical mills offer unparalleled performance. These systems are specifically engineered to produce powders with D97 values below 30 microns while maintaining high throughput rates and energy efficiency.
Shanghai Zenith Machinery Co., Ltd. has established itself as a premier manufacturer of ore grinding equipment, with remarkable achievements in the field of ultra-fine powder grinding. Specializing in the research, development, and production of industrial powder grinding equipment, Zenith offers comprehensive solutions for graphite processing applications.

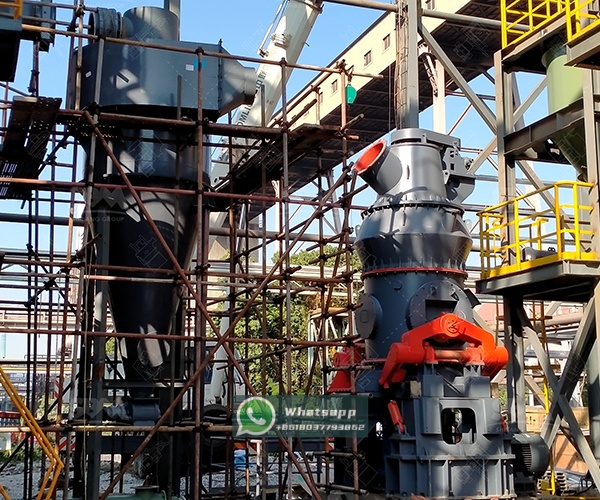

Among Zenith’s extensive product portfolio, the LUM Ultrafine Vertical Mill stands out as particularly well-suited for graphite processing for conductive coatings and inks. This advanced system integrates grinding, drying, classifying, and transportation functions while occupying minimal space. Its intelligent control system ensures consistent product quality and facilitates maintenance operations.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The LUM series excels in graphite processing due to several key features:
For operations requiring flexibility across different material types and production scales, Zenith’s XZM Ultrafine Grinding Mill offers outstanding versatility. This mill is particularly effective for processing soft to medium-hard materials with moisture content below 6%, making it ideal for natural graphite processing.
| Model | Working Diameter (mm) | Max Feed Size (mm) | Final Size (mesh) | Output (kg/h) |
|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 |
Successful ultrafine grinding of graphite requires careful optimization of multiple parameters:
The choice of grinding media significantly impacts both process efficiency and product quality. For graphite processing, zirconium oxide or high-purity alumina media are typically preferred due to their minimal contamination potential and appropriate hardness characteristics.
Advanced control systems monitor and adjust critical parameters in real-time:
Consistent product quality requires comprehensive testing protocols:
Ultrafine graphite powders produced using advanced grinding technologies find applications across numerous industries:
Conductive inks based on ultrafine graphite enable the production of flexible circuits, RFID tags, and smart packaging. The fine particle size ensures excellent printability and electrical performance.
Graphite coatings serve as conductive additives in battery electrodes and supercapacitors. The optimized particle morphology enhances ionic and electronic transport within these devices.
Conductive coatings containing ultrafine graphite provide effective electromagnetic interference shielding for electronic enclosures and components.
The field of ultrafine graphite grinding continues to evolve, with several emerging trends:
Ultrafine grinding represents a critical enabling technology for producing high-quality graphite powders for conductive coatings and inks. The selection of appropriate grinding equipment, such as Shanghai Zenith Machinery’s LUM Ultrafine Vertical Mill or XZM Ultrafine Grinding Mill, directly impacts product quality, process efficiency, and overall economic viability. As demand for advanced electronic applications continues to grow, the importance of sophisticated grinding solutions will only increase, driving further innovation in this essential field.
Through continuous research and development, manufacturers like Shanghai Zenith Machinery are pushing the boundaries of what’s possible in ultrafine powder production, enabling new applications and improving existing ones across the electronics, energy storage, and advanced materials sectors.
