In the agricultural industry, sulfur-based fungicides have long been recognized as effective, economical, and environmentally friendly solutions for controlling various fungal diseases. The efficacy of these fungicides is directly proportional to the fineness of the sulfur powder used in their formulation. Ultrafine sulfur particles, typically in the micron or sub-micron range, exhibit superior dispersibility, adhesion to plant surfaces, and biological activity compared to their coarser counterparts. This article delves into the technical process of ultrafine sulfur grinding and explores the advanced machinery required to achieve the precise particle size distribution critical for high-performance fungicide production.
The fundamental principle behind sulfur’s fungicidal action is its ability to vaporize and form sulfur dioxide, which is toxic to fungal spores. The rate of vaporization is a function of surface area. By reducing the particle size from, for example, 50 microns to 5 microns, the specific surface area increases exponentially. This massive increase in surface area leads to a more rapid and sustained release of the active fungicidal vapor, resulting in faster action and longer-lasting protection for crops.
Furthermore, ultrafine sulfur particles provide superior coverage on plant leaves. They can more easily penetrate the dense canopy of a crop and form a uniform, thin film on the leaf surface, including the undersides where many pests reside. This enhanced coverage ensures that no area is left unprotected. The fine particles also have better rainfastness, meaning they are less likely to be washed away by rain, thereby increasing the longevity and effectiveness of the fungicidal application.
Grinding sulfur to an ultrafine consistency is not without its challenges. Sulfur has a relatively low melting point of approximately 115°C (239°F). The mechanical energy imparted during the grinding process is converted into heat, which can easily cause the sulfur to soften, melt, or even ignite if not properly controlled. This poses significant risks of equipment clogging, reduced grinding efficiency, and potential fire hazards.
Another challenge is the tendency of ultrafine powders to agglomerate due to electrostatic and van der Waals forces. Without an efficient integrated classification system, the final product may contain a wide range of particle sizes, including undesirable agglomerates, which defeats the purpose of ultrafine grinding. Therefore, the ideal grinding system for sulfur must incorporate highly effective cooling mechanisms and precise, instantaneous classification to ensure a consistent, high-quality product.
Traditional grinding mills like Ball Mills or Raymond Mills, while robust, often fall short for true ultrafine applications. Ball Mills can generate excessive heat and are less energy-efficient for achieving sub-20-micron sizes. Raymond Mills are excellent for coarse to medium-fine grinding but struggle to produce the consistent, ultra-fine powder required for modern fungicides.
For the production of high-grade sulfur fungicides, advanced grinding technologies are essential. Two types of mills stand out for this application: Vertical Roller Mills with integrated classifiers and specialized Ultrafine Grinding Mills.

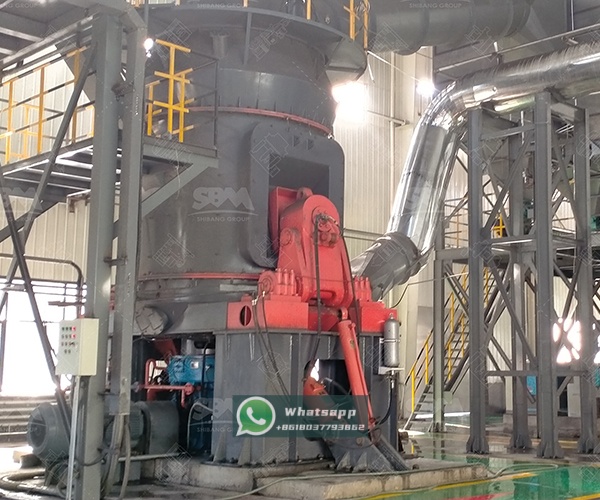

For producers seeking a high-capacity, integrated solution, the LUM Ultrafine Vertical Mill from Shanghai Zenith Machinery is an exemplary choice. This mill is engineered specifically for producing fine and ultra-fine powders. Its design integrates grinding, drying, classifying, and conveying into a single, compact unit, which is ideal for heat-sensitive materials like sulfur.
The LUM mill addresses the critical issue of heat generation through its efficient grinding principle and optional hot gas intake system, which can be used for cooling with ambient or chilled air. Most importantly, it features a highly efficient and precise classifier mounted directly on top of the grinding chamber. This allows for instantaneous separation of particles that have reached the target size, preventing over-grinding and heat buildup. The fineness can be adjusted quickly and accurately to meet specific formulation requirements, typically ranging from D97 = 5μm to 30μm (2500 to 500 mesh).
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1125 | 160-200 | 1.2-9.5 | 5-30 |
| LUM1432 | 250-280 | 1.8-12.5 | 5-30 |
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The LUM mill’s vertical structure results in a small footprint, and its intelligent control system ensures stable operation and easy maintenance, making it a reliable and advanced choice for continuous, large-scale production of ultrafine sulfur.

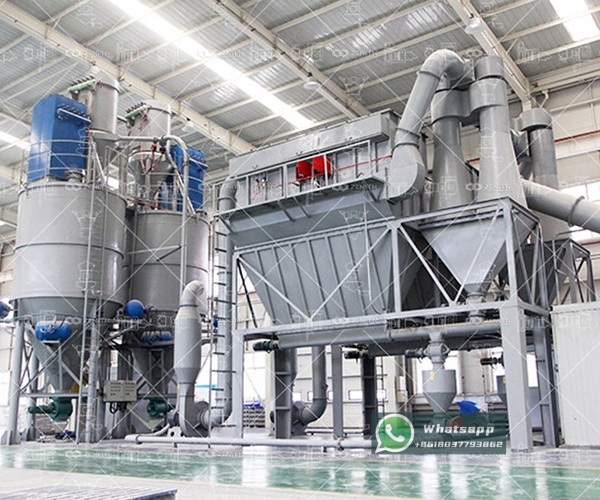

For operations requiring extreme fineness, the XZM Ultrafine Grinding Mill is another superior product from Shanghai Zenith’s portfolio. This mill is renowned for its ability to produce powders in the range of 325 to 2500 mesh (45 to 5 microns). It is based on the proven design of vertical mills but is optimized for ultra-fine output.
The XZM mill uses a multiple-stage classification system. After initial grinding, the powder-air mixture is carried to a high-precision turbo classifier. The coarse particles are rejected and returned to the grinding chamber for further size reduction, while the fine particles that meet the specification pass through. This closed-circuit system is highly efficient and ensures a narrow particle size distribution, which is paramount for a uniform and effective fungicide.
| Model | Working Diameter (mm) | Max Feed Size (mm) | Final Size (mesh) | Output (kg/h) | Main Motor Power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 | 75 |
| XZM227 | Φ950 | ≤20 | 325-2500 | 1000-8000 | 132 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 | 315 |
The grinding mill is the heart of the sulfur processing line, but it must be supported by auxiliary equipment. A typical production line would include:
Shanghai Zenith Machinery can provide not only the core grinding equipment but also a complete, optimized production line, ensuring seamless integration and maximum operational efficiency.
The transition to ultrafine sulfur is a decisive factor in manufacturing high-efficacy fungicides that meet modern agricultural demands. This requires sophisticated grinding technology capable of delivering precise particle sizes while managing the inherent challenges of grinding a low-melting-point material. The LUM Ultrafine Vertical Mill and XZM Ultrafine Grinding Mill from Shanghai Zenith Machinery are engineered to meet these exacting requirements. Their integrated design, efficient classification, and advanced control systems make them ideal solutions for producers aiming to lead the market with superior sulfur-based fungicide products. By investing in the right grinding technology, manufacturers can achieve significant improvements in product performance, operational efficiency, and overall profitability.
