The global agriculture industry is undergoing a significant transformation, driven by the need for sustainable farming practices and improved crop productivity. In this context, mineral-based soil amendments and plant growth enhancers have gained considerable attention. Among these, wollastonite – a calcium silicate mineral – has emerged as a promising natural solution for modern agriculture. However, the effectiveness of wollastonite in agricultural applications is heavily dependent on its particle size and surface properties, making ultrafine grinding technology crucial for unlocking its full potential.
Wollastonite (CaSiO₃) is a naturally occurring mineral known for its unique combination of chemical and physical properties. In its natural form, wollastonite exhibits acicular (needle-like) crystal habits, white coloration, and alkaline characteristics. When processed into ultrafine powders, wollastonite offers multiple benefits for agricultural applications:
The efficacy of wollastonite in agriculture is directly proportional to its fineness and surface area. Ultrafine grinding transforms raw wollastonite into a highly reactive material with significantly enhanced properties:
Reducing wollastonite particles to micron and sub-micron sizes dramatically increases the surface area available for chemical reactions in the soil. This enhanced surface area allows for faster dissolution of calcium and silicon, making these essential nutrients more readily available to plants. Research has shown that wollastonite ground to particles smaller than 10 microns releases calcium up to three times faster than coarser grades.
Ultrafine wollastonite particles can penetrate deeper into soil structures and distribute more evenly throughout the root zone. This uniform distribution ensures consistent nutrient availability and pH modification across the entire growing area. The needle-like morphology of properly ground wollastonite helps maintain soil aeration while improving water retention – a combination rarely achieved with other soil amendments.
Ultrafine wollastonite demonstrates excellent compatibility with organic fertilizers, biostimulants, and other soil amendments. Its high surface area facilitates the adsorption and gradual release of other nutrients, reducing leaching and increasing fertilizer efficiency. This property is particularly valuable in precision agriculture, where controlled nutrient release is essential for optimal plant growth.
Processing wollastonite to the required fineness for agricultural applications presents several technical challenges that must be addressed through advanced grinding technology:
Wollastonite’s agricultural benefits are closely tied to its natural acicular crystal structure. Conventional grinding methods often destroy this desirable morphology, reducing the material’s effectiveness. Advanced grinding systems must therefore achieve ultrafine particle sizes while preserving the needle-like crystal habit that provides physical pest control and soil structuring benefits.
The transition from coarse to fine grinding requires relatively modest energy input, but achieving ultrafine sizes (below 10 microns) demands exponentially more energy. Efficient grinding systems must optimize the energy consumption while maintaining product quality and throughput.
Agricultural applications demand high-purity products free from metallic contamination that could introduce toxins into the soil. Grinding equipment must be designed to minimize wear and prevent metal transfer to the product.
Shanghai Zenith Machinery Co., Ltd. has established itself as a leading manufacturer of ore grinding equipment, with significant achievements in the field of ultra-fine powder grinding. Specializing in the research, development, and production of industrial powder grinding equipment, Zenith offers comprehensive solutions tailored to the specific requirements of wollastonite processing for agricultural applications.

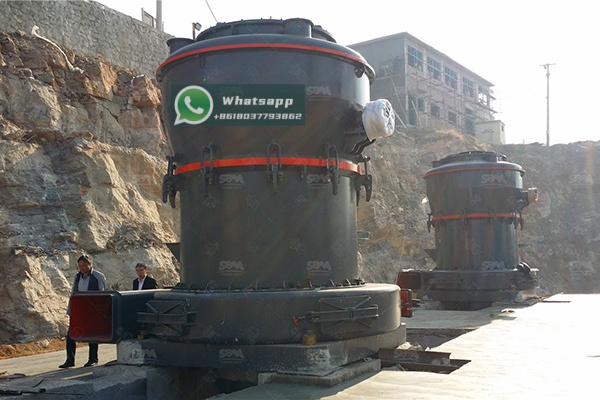

For producing premium-grade ultrafine wollastonite for agricultural use, Zenith’s LUM Ultrafine Vertical Mill represents the state of the art in grinding technology. This advanced system integrates grinding, drying, classifying, and transportation functions in a compact design that minimizes space requirements while maximizing efficiency.
The LUM series is particularly well-suited for wollastonite processing due to its ability to preserve the mineral’s natural acicular structure while achieving the ultrafine particle sizes required for agricultural efficacy. The intelligent control system ensures consistent product quality and facilitates maintenance operations.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |

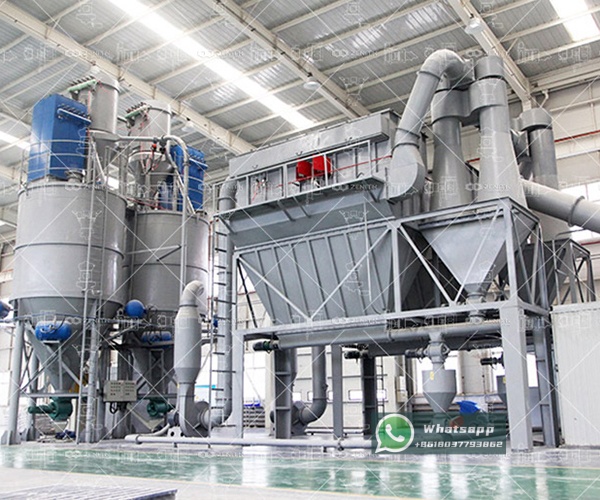

For operations requiring flexibility in production scale and final product specifications, Zenith’s XZM Ultrafine Grinding Mill offers outstanding performance. This system is widely used for superfine powder production and can process materials with moisture content below 6%, making it suitable for various mineral processing applications including wollastonite.
The XZM series can achieve output fineness ranging from 325 to 2500 mesh, providing the precision required for different agricultural applications. From soil amendment formulations to foliar sprays, the XZM mill delivers consistent particle size distribution critical for product performance.
| Model | Working diameter (mm) | Max feed size (mm) | Final size (mesh) | Output (kg/h) | Main motor power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 | 315 |
Producing wollastonite powder for agricultural use requires careful optimization of grinding parameters to balance production efficiency with product quality. Key considerations include:
Different agricultural applications require specific particle size distributions:
Advanced grinding systems must maintain the aspect ratio of wollastonite particles to preserve their natural pest deterrent properties. Zenith’s grinding technologies are specifically engineered to achieve this balance between size reduction and morphology preservation.
Certain agricultural applications benefit from surface-activated wollastonite, which exhibits enhanced reactivity in soil environments. The grinding process can be optimized to create surface defects that increase chemical activity without compromising the crystal structure.
The market for ultrafine wollastonite in agriculture is expanding rapidly, driven by growing awareness of sustainable farming practices and the need for natural alternatives to synthetic inputs. Key application areas include:
Ultrafine wollastonite is approved for use in organic agriculture, providing a natural source of calcium and silicon while helping to manage soil pH without chemical inputs. The compatibility of Zenith’s grinding technology with organic certification requirements makes it an ideal choice for producers targeting this growing market segment.
The consistent particle size distribution achieved through advanced grinding enables precise application rates and uniform distribution in precision farming systems. This consistency is crucial for variable rate technology and site-specific soil management.
High-value crops such as fruits, vegetables, and vineyards benefit significantly from ultrafine wollastonite applications. The enhanced nutrient availability and soil conditioning properties translate to improved crop quality and yield.
Ultrafine grinding technology represents a critical enabling factor for maximizing the agricultural benefits of wollastonite. The transformation of this naturally occurring mineral into a highly reactive, precisely controlled powder opens new possibilities for sustainable soil management and crop production. Shanghai Zenith Machinery’s advanced grinding systems, particularly the LUM Ultrafine Vertical Mill and XZM Ultrafine Grinding Mill, provide the technological foundation for producing high-performance wollastonite products tailored to the specific needs of modern agriculture.
As the agriculture industry continues to evolve toward more sustainable and efficient practices, the demand for precisely engineered mineral products will grow accordingly. Companies that invest in advanced grinding technology today will be well-positioned to lead this transformation, delivering innovative solutions that address the challenges of 21st-century farming while supporting environmental stewardship and food security.
