In the realm of industrial powder processing, the pursuit of finer particle sizes and higher production efficiency has led to significant advancements in grinding technology. Ultrafine mills have become indispensable equipment across various industries, from mining and minerals to chemicals and construction materials. As a leading manufacturer in this field, Shanghai Zenith Machinery Co., Ltd. has made remarkable achievements in developing both horizontal and vertical grinding solutions that cater to diverse operational requirements.
Ultrafine grinding refers to the process of reducing materials to particle sizes typically ranging from 1 to 10 microns, with some advanced systems capable of achieving sub-micron levels. This level of fineness is crucial for applications requiring enhanced material properties, improved reactivity, or superior product quality. The fundamental difference between horizontal and vertical mill designs lies in their structural configuration and the principles governing material movement and grinding action.
Horizontal mills, including ball mills and traditional Raymond mills, have served as the backbone of industrial grinding operations for decades. These systems feature a horizontally oriented grinding chamber where grinding media or rollers process materials through impact, attrition, and compression forces.
The primary advantages of horizontal designs include their robust construction, relatively simple operation, and proven reliability across various applications. Traditional ball mills, for instance, utilize rotating cylinders filled with grinding media that cascade and impact the material, effectively reducing particle size through repeated collisions.
However, horizontal mills typically require more floor space and may present challenges in terms of energy efficiency and fine particle classification. The gravitational forces in these systems can sometimes lead to uneven grinding and require additional classification equipment to achieve consistent ultrafine products.

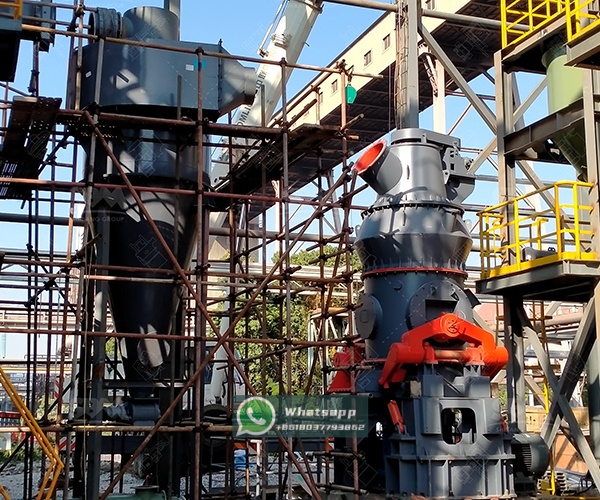

Vertical mills represent a more contemporary approach to ultrafine grinding, with Shanghai Zenith’s LM Vertical Grinding Mill and LUM Ultrafine Vertical Mill standing as exemplary models of this design philosophy. These systems integrate multiple functions—including crushing, grinding, powder selection, drying, and material conveying—within a single compact unit.
The vertical orientation leverages gravitational forces to enhance material flow and grinding efficiency. As materials enter from the top and descend through the grinding zone, they encounter rotating grinding elements that progressively reduce particle size. This configuration naturally facilitates better classification, as finer particles are carried upward by airflow while coarser materials continue circulating for further grinding.
Vertical mills typically offer significant advantages in terms of space efficiency. The compact, tower-like design requires less floor area compared to horizontal systems of equivalent capacity. This characteristic makes vertical mills particularly suitable for operations with space constraints or those looking to maximize production within existing facilities.
Modern vertical mills generally demonstrate superior energy efficiency due to their integrated design and optimized grinding principles. The direct transmission of power to the grinding table minimizes energy losses associated with gear systems in horizontal mills. Additionally, the inherent classification within vertical mills reduces the need for separate air classifiers, further contributing to energy savings.
Both designs can produce high-quality ultrafine powders, but vertical mills often provide better control over particle size distribution. The integrated classification systems in vertical mills enable precise control of final product fineness, while the grinding and drying functions can be optimized simultaneously for materials requiring moisture reduction.
Horizontal mills typically feature simpler mechanical designs with components that are more accessible for maintenance. However, modern vertical mills incorporate advanced monitoring and control systems that facilitate predictive maintenance and reduce unexpected downtime. The centralized design of vertical mills also simplifies operational procedures.
As an excellent manufacturer of ore grinding equipment, Shanghai Zenith Machinery Co., Ltd. has developed sophisticated vertical grinding mills that address the limitations of traditional horizontal designs while maximizing operational efficiency.
The LUM Ultrafine Vertical Mill represents the pinnacle of Zenith’s engineering expertise, integrating grinding, drying, classifying, and transportation functions within a minimal footprint. This advanced system is specifically designed for producing ultrafine powders with high content of end-fines and features intelligent control systems for simplified operation and maintenance.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The LUM series excels in applications requiring precise particle size control and high production efficiency. Its innovative design incorporates multiple patents and represents significant advancements over conventional grinding systems.
For operations requiring robust performance across various materials, the LM Vertical Grinding Mill offers exceptional versatility. This system efficiently handles minerals, coal, slag, and other industrial materials with consistent results and operational reliability.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Main Motor (kW) |
|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | 1250 |
The LM series demonstrates Shanghai Zenith’s commitment to developing equipment that combines high performance with environmental considerations, featuring reduced noise levels and dust emissions compared to traditional grinding systems.
The choice between horizontal and vertical mill designs should be guided by specific operational requirements, material characteristics, and production objectives. Horizontal mills may still be preferable for certain applications, particularly those involving abrasive materials or operations where traditional expertise favors established technologies.
However, for most modern ultrafine grinding applications, vertical mills offer compelling advantages. Their integrated design, superior energy efficiency, and compact footprint make them particularly suitable for new installations or capacity expansion projects where operational costs and environmental impact are significant considerations.
The evolution of grinding technology continues to focus on enhancing efficiency, reducing environmental impact, and improving product quality. Shanghai Zenith remains at the forefront of these developments, with ongoing research into advanced materials, intelligent control systems, and energy optimization techniques.
Emerging trends include the integration of artificial intelligence for predictive maintenance and process optimization, the development of specialized grinding elements for specific material types, and enhanced classification systems for even tighter particle size distributions.
The comparison between horizontal and vertical ultrafine mill designs reveals a clear trend toward vertical systems for most contemporary applications. While horizontal mills continue to serve important roles in specific contexts, the advantages of vertical mills in terms of space efficiency, energy consumption, and integrated functionality make them the preferred choice for many operations.
Shanghai Zenith Machinery Co., Ltd. has demonstrated exceptional capability in developing both horizontal and vertical grinding solutions, with their LUM Ultrafine Vertical Mill and LM Vertical Grinding Mill representing significant advancements in the field. These systems incorporate years of research and practical experience, delivering reliable performance across diverse industrial applications while addressing the evolving needs of modern powder processing operations.
As industries continue to demand finer powders, higher production rates, and more sustainable operations, the technological innovations embodied in Shanghai Zenith’s grinding equipment provide valuable solutions for meeting these challenges effectively and efficiently.
