In the world of mineral processing and powder production, achieving the desired particle size distribution (PSD) is crucial for product quality, process efficiency, and economic viability. Particle size distribution refers to the relative percentage of different particle sizes within a given sample, typically represented as a curve on a graph. Understanding and controlling PSD is fundamental to selecting the right grinding equipment and optimizing operational parameters.
The significance of PSD extends across numerous industries. In cement production, it directly affects setting time and strength development. In pharmaceuticals, it influences drug dissolution rates and bioavailability. For pigments and dyes, PSD determines color strength and opacity. Even slight variations in distribution can dramatically alter material properties like flowability, compressibility, reactivity, and suspension stability.
Proper PSD analysis helps engineers:
When evaluating PSD, several key parameters provide meaningful insights:
D-values: These indicate the particle size at which a certain percentage of the sample passes. D50 represents the median particle size, where 50% of particles are smaller and 50% are larger. D10 and D90 provide information about the finer and coarser ends of the distribution, respectively.
Span: This measures the width of the distribution, calculated as (D90 – D10)/D50. A lower span indicates a narrower, more uniform distribution.
Specific Surface Area: As particle size decreases, surface area increases exponentially, significantly affecting material properties and reactivity.
Different grinding mills produce distinct particle size distributions based on their operating principles. The selection process must consider the target PSD, material characteristics, and production capacity requirements.
For coarse grinding applications where the target PSD ranges from several millimeters down to 100 microns, Hammer Mills and Ball Mills are typically employed. These robust machines excel at reducing large feed materials to manageable sizes through impact and attrition mechanisms.
When targeting distributions in the medium to fine range, Raymond Mills and MTM Medium-Speed Grinding Mills offer excellent performance. Shanghai Zenith’s MTM series, for instance, provides efficient grinding with world-leading powder processing technology.
For applications requiring ultrafine powders with tight PSD control, specialized equipment like the LUM Ultrafine Vertical Mill and XZM Ultrafine Grinding Mill deliver superior performance. Shanghai Zenith Machinery Co., Ltd., an excellent manufacturer of ore grinding equipment in China, has made significant achievements in this challenging field of ultra-fine powder grinding.
As a specialized manufacturer in the research, development, and production of industrial powder grinding equipment, Shanghai Zenith offers comprehensive solutions for achieving precise particle size distributions across various applications.

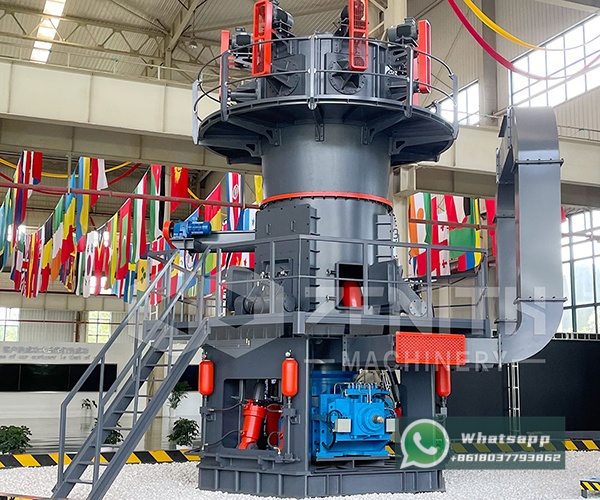

For operations requiring tight control over ultrafine particle distributions, the LUM Ultrafine Vertical Mill represents cutting-edge technology. This advanced system integrates grinding, drying, classifying, and transportation functions while occupying minimal space. Its intelligent control system ensures consistent PSD and facilitates maintenance.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The LUM series excels in producing materials with high content of end-fines, making it ideal for high-value applications where precise PSD control is critical.
For general grinding applications requiring consistent medium-fine distributions, the MTW Trapezium Grinding Mill offers an optimal balance of performance, efficiency, and reliability. With multiple patents, this mill features a compact structure, long service life, and eco-friendly design.
| Model | Max. Feed Size (mm) | Final size (mm) | Capacity (t/h) | Main motor (kW) |
|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 |
Achieving the target particle size distribution requires more than just selecting the right equipment. Proper circuit design and operational parameters significantly impact the resulting PSD:
Closed vs. Open Circuit: Closed-circuit grinding with efficient classification systems provides better control over PSD by returning oversize material for further grinding.
Grinding Media Selection: The size, density, and composition of grinding media affect both grinding efficiency and the shape of the particle size distribution curve.
Mill Speed: Operating at optimal rotational speeds ensures proper cascading of media and efficient size reduction.
Feed Rate Control: Consistent, controlled feed rates prevent mill overload or underload, maintaining stable PSD.
Modern grinding operations employ various techniques to monitor PSD, including:
Regular PSD analysis allows operators to make timely adjustments to mill parameters, ensuring consistent product quality and optimizing energy consumption.
Understanding particle size distribution is fundamental to successful grinding operations. The relationship between mill selection, operational parameters, and resulting PSD requires careful consideration to achieve production targets efficiently. Shanghai Zenith’s comprehensive range of grinding equipment, from the versatile MTW Trapezium Grinding Mill to the precision LUM Ultrafine Vertical Mill, provides solutions tailored to specific PSD requirements across various industries.
By leveraging advanced grinding technologies and proper process control, operators can consistently produce materials with the desired particle characteristics while maximizing efficiency and minimizing operational costs. The continuous development of grinding equipment, particularly in the field of ultra-fine powder grinding, continues to expand possibilities for precise PSD control in increasingly demanding applications.
