In the global energy landscape, lignite and brown coal continue to play significant roles in power generation and industrial applications. However, the efficient processing of these low-rank coals presents unique challenges due to their high moisture content, low calorific value, and tendency to degrade during handling. Vertical mill systems have emerged as the preferred technology for grinding lignite and brown coal, offering superior efficiency, drying capabilities, and operational reliability compared to traditional grinding methods.
Lignite and brown coal are characterized by their high moisture content, typically ranging from 30% to 60%, which significantly impacts their heating value and combustion efficiency. These coals also tend to have lower fixed carbon content and higher volatile matter compared to bituminous coals. The fibrous and sometimes sticky nature of lignite creates additional challenges in grinding operations, requiring specialized equipment that can handle these characteristics while maintaining consistent particle size distribution.
Vertical mill systems offer several distinct advantages for lignite and brown coal processing. The integrated drying and grinding capability is particularly valuable for high-moisture coals, as hot gases from the kiln or separate hot gas generator can be introduced directly into the grinding chamber. This simultaneous drying and grinding process eliminates the need for separate drying equipment, reducing both capital and operating costs.

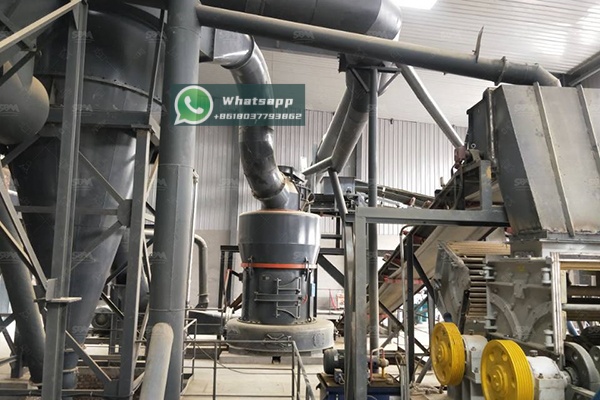

The vertical orientation of these mills provides natural material transport, with ground coal particles being carried upward by the drying gas stream to the classifier. This design minimizes material recirculation and reduces power consumption. Additionally, vertical mills typically have smaller footprints than equivalent ball mills, making them ideal for space-constrained installations.
When selecting vertical mill systems for lignite and brown coal applications, several technical factors must be considered. Grinding pressure must be optimized to handle the sometimes fibrous nature of lignite while avoiding excessive wear on grinding elements. Material residence time should be carefully controlled to ensure adequate drying without overheating, which could lead to spontaneous combustion.
The classifier system plays a crucial role in determining final product fineness, which directly impacts combustion efficiency in power plants. Modern vertical mills incorporate dynamic classifiers that allow real-time adjustment of product fineness to meet specific combustion requirements. Wear protection is another critical consideration, as the abrasive nature of mineral matter in coal can cause significant wear on grinding components.
Shanghai Zenith Machinery Co., Ltd. has established itself as a leading manufacturer of ore grinding equipment with significant achievements in ultra-fine powder grinding technology. The company’s expertise extends to coal grinding applications, where their vertical mill systems have demonstrated exceptional performance in processing challenging materials like lignite and brown coal.
For lignite and brown coal grinding applications, Zenith’s LM Vertical Coal Mill series represents an optimal solution. These mills integrate crushing, grinding, powder selection, drying, and material conveying into a single compact unit, offering significant advantages for coal processing operations.
| Model | Plate diameter (mm) | Capacity (t/h) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|
| LM130M | 1300 | 10-17 | <38 | 185 |
| LM220M | 2200 | 35-50 | <50 | 500 |
| LM280M | 2800 | 60-90 | <50 | 900 |
The LM series features a patented hot air channel design that optimizes heat transfer for efficient drying of high-moisture coals. The grinding roller and grinding plate are made from wear-resistant materials specifically selected for coal grinding applications, ensuring extended service life even with abrasive coal varieties. The mill’s dynamic classifier system allows precise control over product fineness, typically achieving 80-90% passing 200 mesh, which is ideal for modern pulverized coal combustion systems.
Modern vertical mill systems from Zenith incorporate sophisticated control systems that monitor and adjust key operating parameters in real-time. These systems optimize the balance between grinding efficiency, drying performance, and product quality. Automated control of grinding pressure, classifier speed, and hot gas temperature ensures stable operation even with variations in feed coal characteristics.
The control systems also include comprehensive safety features to address the specific hazards associated with coal grinding, including explosion prevention measures and temperature monitoring to prevent overheating. Remote monitoring capabilities allow operators to track performance and receive alerts for maintenance requirements, maximizing equipment availability and reducing downtime.
Vertical mill systems for lignite and brown coal grinding offer significant environmental advantages over traditional technologies. The closed system design minimizes dust emissions, while efficient drying reduces the energy consumption associated with moisture removal. The compact footprint of vertical mills reduces the overall environmental impact of plant construction.
From an economic perspective, the high grinding efficiency and integrated drying capability of vertical mills translate to lower operating costs. Reduced power consumption, decreased maintenance requirements, and higher availability contribute to a favorable return on investment. The ability to process high-moisture coals without pre-drying equipment further enhances the economic attractiveness of these systems.
For applications requiring ultra-fine coal grinding, Zenith’s LUM Ultrafine Vertical Mill offers exceptional performance. This advanced mill integrates grinding, drying, classifying, and transportation in a compact design that occupies minimal space while delivering superior product quality.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The LUM series features intelligent control systems that simplify operation and maintenance while ensuring consistent product quality. The mill’s unique grinding mechanism produces products with high content of end-fines, making it particularly suitable for specialized applications such as coal water slurry production or advanced combustion systems that require precisely controlled particle size distributions.
Proper maintenance is essential for maximizing the service life and performance of vertical mill systems in coal grinding applications. Regular inspection of wear parts, including grinding rollers and tables, allows for planned maintenance and minimizes unplanned downtime. Zenith’s vertical mills are designed with maintenance accessibility in mind, featuring hydraulic systems that facilitate roller replacement and other maintenance tasks.
Operational training is another critical factor for successful implementation of vertical mill technology. Zenith provides comprehensive training programs that cover normal operation, troubleshooting, and maintenance procedures, ensuring that plant personnel can operate the equipment safely and efficiently.
The evolution of vertical mill technology for coal grinding continues, with ongoing developments focused on improving efficiency, reliability, and environmental performance. Advanced materials for wear parts are extending service intervals, while digitalization and Industry 4.0 concepts are enabling predictive maintenance and optimized operation.
As the energy sector evolves, vertical mill systems are adapting to handle new fuel types and blends, including biomass-coal mixtures that present additional grinding challenges. The flexibility and adaptability of vertical mill technology position it well for future requirements in coal processing and utilization.
Vertical mill systems represent the state-of-the-art in lignite and brown coal grinding technology, offering integrated drying and grinding capabilities that are particularly well-suited to the challenges posed by these low-rank coals. Shanghai Zenith Machinery’s LM Vertical Coal Mill series and LUM Ultrafine Vertical Mill provide reliable, efficient solutions for coal processing applications across the energy and industrial sectors.
With their compact design, energy efficiency, and advanced control systems, these vertical mills deliver operational and economic benefits that make them the preferred choice for modern coal grinding installations. As technology continues to advance, vertical mill systems will play an increasingly important role in enabling the efficient and environmentally responsible utilization of lignite and brown coal resources worldwide.
