In modern thermal power generation, efficient coal pulverization stands as a critical process that directly impacts combustion efficiency, emissions control, and overall plant economics. The transition from traditional ball mills to advanced vertical roller mills has revolutionized coal preparation systems, offering significant advantages in energy consumption, operational flexibility, and environmental performance.
Coal pulverizing technology has evolved substantially over the past decades. Early power plants relied heavily on ball mills and Raymond mills, which, while effective, suffered from high energy consumption, large footprint requirements, and limited flexibility in handling varying coal qualities. The introduction of vertical roller mills marked a technological breakthrough, integrating multiple functions into a single compact unit while delivering superior grinding efficiency.
Modern vertical mills combine crushing, grinding, drying, classification, and material transport in one integrated system. This consolidation not only reduces the physical footprint but also minimizes heat loss and improves thermal efficiency. The ability to handle high moisture coals without pre-drying systems represents another significant advantage, particularly important given the variability in coal quality faced by many power plants.
Vertical mills offer several distinct technical advantages for coal pulverization. Their grinding principle utilizes hydraulic loading systems that apply optimal pressure to the grinding bed, ensuring efficient size reduction with minimal energy consumption. The integrated dynamic classifiers allow precise control over product fineness, crucial for achieving complete combustion and minimizing unburned carbon in fly ash.
Energy efficiency represents one of the most compelling benefits. Vertical mills typically consume 30-50% less energy compared to traditional ball mills of equivalent capacity. This reduction stems from several factors: the grinding mechanism itself requires less specific energy, the integrated drying capability eliminates separate drying systems, and advanced control systems optimize operation across varying load conditions.
Operational flexibility is another critical advantage. Modern vertical mills can handle a wide range of coal types, from bituminous to sub-bituminous and lignite, with moisture contents up to 20% or higher. Quick response to load changes and the ability to maintain stable operation at low loads make them ideal for today’s power plants, which increasingly operate in cycling mode to accommodate renewable energy integration.
Shanghai Zenith Machinery Co., Ltd., as an excellent manufacturer of ore grinding equipment in China, has made significant achievements in the field of ultra-fine powder grinding. Our extensive research and development in industrial powder grinding equipment has produced several innovative solutions specifically optimized for coal pulverization in power plants.

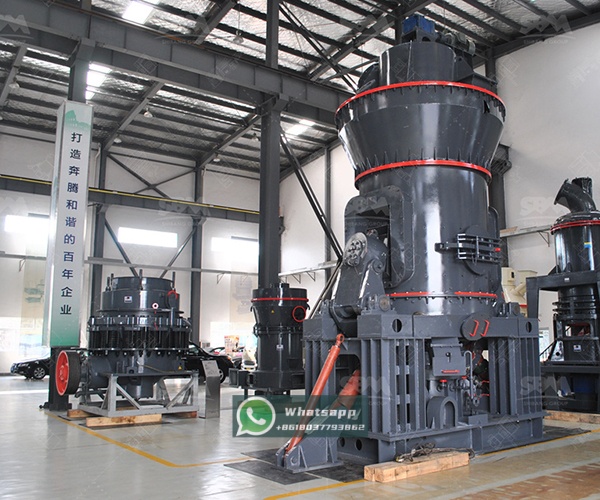

Among our comprehensive product portfolio, the LM Vertical Grinding Mill stands out as particularly well-suited for coal pulverization applications. This mill integrates five functions—crushing, grinding, powder selection, drying, and material conveying—into a single machine, offering significant advantages for power plant operations.
The LM series features a compact design that reduces the overall footprint while maintaining high capacity. The grinding system utilizes a bed compression principle that minimizes metal-to-metal contact, reducing wear and extending maintenance intervals. The integrated drying system efficiently handles high-moisture coals, eliminating the need for separate drying equipment and simplifying the overall system layout.
| Model | Plate diameter (mm) | Capacity (t/h) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|
| LM130M | 1300 | 10-17 | <38 | 185 |
| LM220M | 2200 | 35-50 | <50 | 500 |
| LM280M | 2800 | 60-90 | <50 | 900 |
The LM Vertical Coal Mill series demonstrates exceptional performance characteristics. For instance, the LM220M model processes 35-50 tons per hour with a maximum feed size of 50mm, powered by a 500kW main motor. This capacity range makes it ideal for medium to large power plant units, providing reliable performance across varying operational conditions.
For applications requiring finer product control or dealing with challenging coal characteristics, our LUM Ultrafine Vertical Mill offers advanced technological features. This mill integrates grinding, drying, classifying, and transportation functions while occupying minimal space. It is specifically designed to produce products with high content of end-fines and features intelligent control for easier maintenance.
The LUM series incorporates several patented technologies that enhance performance and reliability. The advanced grinding roller sealing system ensures stable operation and prevents contamination. The intelligent control system continuously monitors and optimizes operating parameters, adapting to changes in coal quality and mill loading conditions.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The LUM series demonstrates remarkable flexibility in product fineness control, with the ability to achieve size distributions as fine as D97=5μm. This level of control is particularly valuable for advanced combustion systems where precise coal fineness directly impacts combustion efficiency and emissions.
The implementation of Shanghai Zenith’s vertical mill technology delivers substantial operational and economic benefits to power plants. The reduced energy consumption directly translates to lower operating costs, with typical savings of 5-7 kWh per ton of coal processed compared to traditional technologies. The compact design reduces civil construction costs and allows for easier integration into existing plants during upgrades or expansions.
Maintenance requirements are significantly reduced through intelligent design features. The use of wear-resistant materials in high-abrasion areas, combined with easy-access maintenance points, minimizes downtime and reduces life-cycle costs. Remote monitoring capabilities enable predictive maintenance, further enhancing operational reliability.
Environmental performance represents another critical advantage. The efficient grinding and classification systems minimize the production of ultra-fines, reducing particulate emissions. The integrated drying capability allows plants to utilize lower-quality coals with higher moisture content while maintaining combustion stability and efficiency.
The evolution of coal pulverization technology continues, with several emerging trends shaping future developments. Digitalization and smart operation represent key areas of innovation. Shanghai Zenith is actively developing advanced control systems that incorporate artificial intelligence and machine learning to optimize mill performance in real-time, adapting to changing coal characteristics and operational requirements.
Hybrid grinding systems that combine multiple grinding principles are also under development, offering the potential for even greater efficiency and flexibility. These systems aim to optimize energy consumption across the entire size reduction process, from initial crushing to final classification.
Sustainability considerations are driving research into technologies that can handle biomass and waste-derived fuels alongside conventional coal. The ability to process diverse fuel mixtures reliably and efficiently will become increasingly important as power plants transition toward lower-carbon operations.
Vertical mill technology has fundamentally transformed coal pulverization in power plants, delivering substantial improvements in efficiency, reliability, and environmental performance. Shanghai Zenith’s LM Vertical Grinding Mill and LUM Ultrafine Vertical Mill represent the cutting edge of this technology, offering power plant operators robust, efficient solutions tailored to the demanding requirements of modern power generation.
As the power industry continues to evolve toward greater efficiency and sustainability, advanced pulverization technologies will play an increasingly vital role. Shanghai Zenith remains committed to innovation in this field, developing next-generation solutions that address the emerging challenges and opportunities in power plant operations worldwide.
