In modern mineral processing operations, the efficiency of grinding and classification circuits directly impacts overall plant performance, energy consumption, and product quality. Closed-circuit grinding systems, where material is continuously classified and oversized particles are returned for further grinding, have become the industry standard for achieving optimal particle size distribution and maximizing throughput. Among the various grinding technologies available, vertical mill systems have emerged as particularly effective solutions for these applications.
Closed-circuit grinding represents a significant advancement over traditional open-circuit systems. In a closed-circuit configuration, the mill discharge is fed to a classifier that separates the product into two streams: finished material that meets the target size specifications, and oversize material that is returned to the mill for further grinding. This recycling of coarse material ensures that energy is not wasted grinding already-fine particles and allows for tighter control over the final product size distribution.
The efficiency of a closed-circuit system depends on several critical factors: the grinding mechanism of the mill, the precision of the classification system, the material transport between components, and the overall system integration. Vertical mills excel in all these areas, particularly when designed with integrated classification systems.
Vertical mills operate on the principle of bed compression grinding, where material is ground between a rotating table and stationary rollers under hydraulic pressure. This grinding mechanism offers several distinct advantages over traditional ball mills for closed-circuit operations:
These characteristics make vertical mills particularly suitable for modern mineral processing plants where space constraints, energy efficiency, and environmental considerations are paramount.
The classification stage is critical in closed-circuit grinding operations. Modern vertical mills typically employ dynamic classifiers that use rotating blades to create a centrifugal field for particle separation. These classifiers offer several advantages:

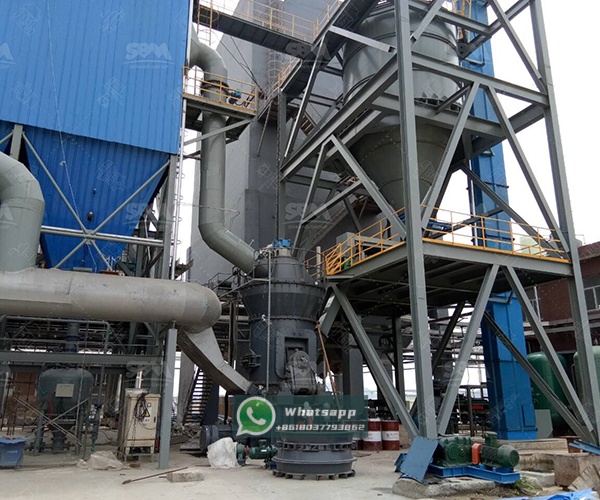

The integration of the classifier directly above the grinding chamber in vertical mills creates a highly efficient material transport system where ground material is carried upward by the process gas stream to the classifier, with coarse particles falling back to the grinding table by gravity.
Shanghai Zenith Machinery Co., Ltd. has established itself as a leading manufacturer of ore grinding equipment, with significant achievements in the field of ultra-fine powder grinding. Specializing in the research, development, and production of industrial powder grinding equipment, Zenith offers comprehensive solutions for mineral processing applications. Among their extensive product range, the LM Vertical Grinding Mill and LUM Ultrafine Vertical Mill stand out as particularly effective for closed-circuit ore grinding operations.

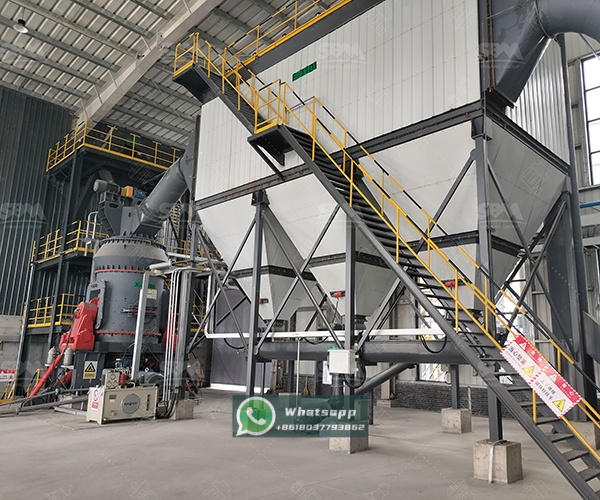

The LM Vertical Grinding Mill from Shanghai Zenith represents a sophisticated approach to mineral grinding, integrating five functions—crushing, grinding, powder selection, drying, and material conveying—into a single compact unit. This integration makes it particularly suitable for closed-circuit operations where space efficiency and process simplicity are valued.
Key features of the LM Vertical Grinding Mill include:
The technical parameters for the LM Vertical Grinding Mill series demonstrate its versatility across different application requirements:
| Model | Plate diameter (mm) | Capacity (t/h) | Output fineness (μm) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
For applications requiring ultrafine grinding, Shanghai Zenith’s LUM Ultrafine Vertical Mill offers exceptional performance. This mill integrates grinding, drying, classifying, and transportation functions while occupying minimal space. It is specifically designed to produce products with high content of end-fines and features intelligent control systems for easier maintenance and operation.
The LUM series excels in producing precisely controlled ultrafine powders with the following advantages:
The technical capabilities of the LUM Ultrafine Vertical Mill are demonstrated in the following parameters:
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
Successful operation of vertical mills in closed-circuit configurations requires careful attention to several operational parameters:
Modern vertical mills from manufacturers like Shanghai Zenith incorporate advanced control systems that automatically adjust these parameters to maintain optimal performance under varying conditions.
A notable application of Zenith’s LM Vertical Grinding Mill can be found in an iron ore processing plant where the mill was installed in a closed-circuit configuration with a dynamic classifier. The installation achieved several significant improvements over the previous ball mill circuit:
This case demonstrates the potential benefits of modern vertical mill technology in mineral processing applications.
The evolution of vertical mill technology continues with several emerging trends that will further enhance their application in closed-circuit grinding:
Shanghai Zenith Machinery continues to invest in research and development to incorporate these advancements into their product offerings, maintaining their position at the forefront of grinding technology.
Vertical mill technology represents a significant advancement in closed-circuit grinding systems for ore processing. The integration of grinding, classification, and material transport functions in a single compact unit offers numerous advantages in terms of energy efficiency, space requirements, and operational flexibility. Shanghai Zenith Machinery’s LM Vertical Grinding Mill and LUM Ultrafine Vertical Mill exemplify the capabilities of modern vertical mill technology, providing efficient and reliable solutions for a wide range of mineral processing applications.
As the mineral processing industry continues to face challenges related to energy costs, environmental regulations, and ore complexity, the adoption of advanced vertical mill technology in closed-circuit configurations will likely increase. With ongoing technological developments and the expertise of manufacturers like Shanghai Zenith Machinery, vertical mills will continue to play a crucial role in optimizing mineral processing operations worldwide.
