The mining industry frequently encounters ores with high moisture content, which presents significant challenges for traditional grinding systems. Materials containing more than 5-10% moisture can cause clogging, reduced throughput, and increased energy consumption in conventional ball mills and other grinding equipment. High moisture ores tend to adhere to mill liners, grinding media, and internal components, creating buildup that diminishes operational efficiency and requires frequent maintenance shutdowns.
Shanghai Zenith Machinery Co., Ltd., as an excellent manufacturer of ore grinding equipment in China, has made significant achievements in developing specialized solutions for these challenging applications. Our extensive research and development in the field of ultra-fine powder grinding has led to innovative vertical mill technologies specifically engineered to handle high moisture content materials efficiently and reliably.
Vertical grinding mills represent a technological breakthrough in processing high moisture ores due to their integrated drying and grinding capabilities. Unlike traditional horizontal mills, vertical mills combine multiple functions into a single, compact unit, offering distinct advantages for moisture-rich materials.
Our company offers several vertical mill models specifically designed to address the unique challenges of high moisture ore processing. Through continuous innovation and technological advancement, we have developed equipment that maintains stable operation even with moisture contents reaching 15-20% in certain applications.

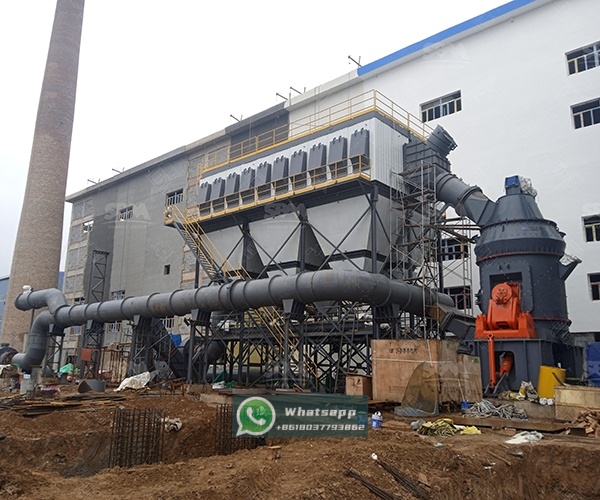

The LM Vertical Grinding Mill represents our flagship solution for high moisture ore applications. This advanced system integrates five critical functions—crushing, grinding, powder selection, drying, and material conveying—into a single, highly efficient machine. The integrated hot air system can be supplied from various heat sources, including hot air furnaces or waste heat recovery systems, making it adaptable to different operational requirements.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Moisture Tolerance | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | 12% | 200 |
| LM190K | 1900 | 23-68 | 170-40 | 15% | 500 |
| LM280K | 2800 | 50-170 | 170-45 | 18% | 1250 |
For operations requiring ultra-fine grinding of high moisture materials, our LUM Ultrafine Vertical Mill offers exceptional performance. This advanced system features intelligent control systems that automatically adjust operational parameters based on moisture content and feed characteristics, ensuring consistent product quality regardless of input variations.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) | Moisture Handling Capability |
|---|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 | Up to 10% |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 | Up to 12% |
| LUM1836 | 355-400 | 2.3-15 | 5-30 | Up to 15% |
Our vertical mills incorporate several proprietary technologies specifically designed to overcome the challenges associated with high moisture ore processing:
The heart of our moisture management system lies in the optimized hot gas flow design. By introducing heated air at strategic points throughout the grinding chamber, we achieve uniform drying without compromising grinding efficiency. The temperature and flow rate can be precisely controlled to match the specific moisture content and thermal sensitivity of the processed material.
High moisture materials often exhibit poor flow characteristics, leading to bridging and clogging in conventional mills. Our vertical mill design utilizes gravity-assisted material transport combined with specially designed guide vanes and grinding tables that prevent material accumulation and ensure consistent throughput.

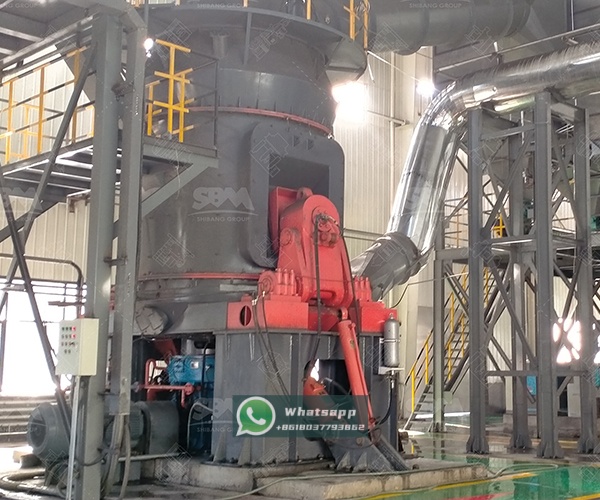

Modern vertical mills from Zenith feature sophisticated control systems that monitor multiple parameters in real-time, including motor load, temperature profiles, pressure differentials, and vibration levels. These systems automatically adjust operational settings to maintain optimal performance when processing high moisture ores, preventing overload conditions and ensuring product consistency.
The implementation of vertical mill technology for high moisture ore grinding delivers substantial benefits across multiple operational dimensions:
By combining drying and grinding operations in a single unit, vertical mills significantly reduce energy consumption compared to traditional two-stage processes. Our LM series mills typically achieve 20-35% energy savings while maintaining equivalent or superior throughput rates.
The simplified mechanical design of vertical mills, with fewer moving parts and optimized wear protection, results in extended maintenance intervals and reduced downtime. Specialized wear-resistant materials in critical areas ensure long service life even when processing abrasive, high moisture ores.
Vertical mills offer superior dust control and emissions management through integrated baghouse filters and closed-system operation. The ability to utilize waste heat sources for drying operations further enhances environmental performance while reducing operational costs.
A recent installation of our LM190K Vertical Grinding Mill at a copper processing facility demonstrates the effectiveness of this technology. The operation previously struggled with a ball mill system that could not efficiently process ore with 12-15% moisture content, resulting in frequent clogging and reduced throughput.
After installing the LM190K, the facility achieved:
Vertical mill technology represents the future of efficient high moisture ore processing, offering integrated solutions that address the fundamental challenges of traditional grinding systems. Shanghai Zenith Machinery’s commitment to innovation in this field has resulted in robust, efficient, and reliable equipment that enables mining operations to process challenging materials profitably.
Our LM Vertical Grinding Mill and LUM Ultrafine Vertical Mill series provide tailored solutions for operations facing high moisture content challenges. With continuous research and development, we remain at the forefront of grinding technology, helping our customers achieve their production targets while minimizing operational costs and environmental impact.
For operations struggling with high moisture ore processing, transitioning to vertical mill technology offers a proven path to improved efficiency, reduced costs, and enhanced operational reliability. Contact our technical team to discuss how our vertical mill solutions can transform your grinding operations.
