In the oil and gas industry, drilling mud plays a critical role in lubricating drill bits, stabilizing boreholes, and carrying cuttings to the surface. The performance of drilling mud heavily depends on the additives used, among which zeolite has emerged as a versatile material due to its unique properties such as high cation exchange capacity, adsorption, and rheological enhancement. Zeolite, a microporous aluminosilicate mineral, when ground into fine powder, can significantly improve the filtration control, shale inhibition, and environmental compatibility of drilling fluids. In the Philippines, a country with growing energy exploration activities in regions like Palawan and the Sulu Sea, the demand for high-quality drilling mud additives is on the rise. Specifically, ultra-fine zeolite powder with a fineness of 1000 mesh (approximately 13-15 microns) is sought after for its superior dispersion and effectiveness in deep-water and challenging geological formations. This article explores the technical requirements for grinding zeolite to 1000 mesh, highlights the challenges, and introduces advanced grinding solutions from Shanghai Zenith Machinery Co., Ltd., a leader in industrial powder processing equipment.
Zeolite acts as a multifunctional additive in drilling mud. Its nano-porous structure allows it to absorb excess water, reduce fluid loss, and stabilize clay particles, thereby preventing wellbore collapse. Moreover, zeolite’s eco-friendly nature makes it a preferred choice over chemical additives in sensitive environments. To maximize these benefits, the zeolite must be processed into a uniform, ultra-fine powder. Grinding to 1000 mesh ensures a large surface area, which enhances reactivity and integration with other mud components. However, achieving such fineness requires precise grinding technology to avoid overheating, contamination, or particle agglomeration.
The Philippines’ expanding offshore drilling projects, coupled with stringent environmental regulations, have increased the need for efficient and sustainable drilling mud formulations. Local suppliers and international operators are investing in grinding facilities to produce zeolite powder on-site, reducing logistics costs and ensuring consistency. The target of 1000 mesh poses a technical hurdle, as traditional mills may not deliver the required particle size distribution or throughput. This is where specialized grinding equipment from reputable manufacturers like Shanghai Zenith becomes indispensable.
Grinding zeolite to 1000 mesh involves several complexities. Zeolite is a medium-hard mineral with a Mohs hardness of 3.5-5.5, and it can be abrasive, leading to wear on grinding components. The process must balance energy efficiency, product quality, and operational costs. Key challenges include:
To achieve 1000 mesh, the grinding mill must produce particles with a D97 of less than 15 microns consistently. This requires advanced classification systems and precise control over grinding parameters. Over-grinding can generate excessive fines, wasting energy, while under-grinding may result in uneven performance in drilling mud. Additionally, zeolite’s moisture content (typically below 6%) necessitates drying capabilities in the grinding system to prevent clogging and ensure flowability.
Traditional ball mills or Raymond mills may consume high energy and produce broad particle size distributions. Modern operations prioritize eco-friendly solutions with low dust emissions and noise levels. In the Philippines, where sustainable practices are encouraged, grinding equipment must align with green manufacturing standards. Shanghai Zenith addresses these concerns through innovative designs that integrate grinding, drying, and classification in a single unit, minimizing footprint and energy use.
Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China, and has made great achievements in the field of ultra-fine powder grinding. With decades of expertise in research, development, and production of industrial powder grinding equipment, Zenith has established itself as a trusted partner for mining, construction, and chemical industries worldwide. The company’s commitment to innovation is evident in its diverse product range, which includes mills capable of handling materials from coarse crushing to superfine grinding. For zeolite processing, Zenith offers tailored solutions that ensure high output, precise fineness, and operational reliability.
Specializing in the research, development, and production of industrial powder grinding equipment and other related devices, Zenith leverages advanced technologies such as PLC control systems, high-efficiency classifiers, and wear-resistant materials. Their engineers work closely with clients to optimize grinding processes for specific applications, including zeolite for drilling mud. The company’s global presence includes successful projects in Southeast Asia, making them well-positioned to serve the Philippine market.
Zenith’s mills are designed with multiple patents, focusing on energy savings, environmental protection, and user-friendly maintenance. By integrating functions like crushing, grinding, drying, and powder selection, their equipment reduces the need for auxiliary devices, lowering capital and operational costs. This holistic approach is ideal for zeolite grinding, where consistency and purity are paramount.
Based on the requirement to produce 1000-mesh zeolite powder for drilling mud in the Philippines, Shanghai Zenith recommends two flagship products: the XZM Ultrafine Grinding Mill and the LUM Ultrafine Vertical Mill. Both mills are engineered to deliver ultra-fine powders with high efficiency and control.

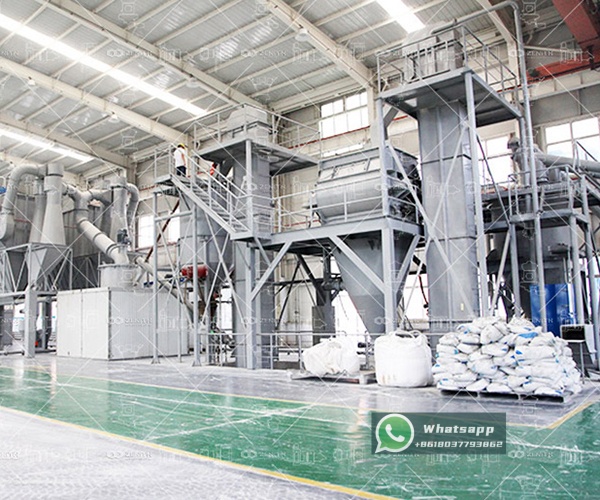

The XZM Ultrafine Grinding Mill is widely used for superfine powder production, suitable for grinding soft or medium-hard materials like zeolite with moisture content below 6%. It features a unique grinding ring and roller design that ensures uniform particle size distribution. With an output fineness range of 325-2500 mesh, the XZM mill can easily achieve 1000 mesh for zeolite. Its compact structure and low noise operation make it suitable for installation in Philippine drilling sites or local processing plants.
Below are the technical parameters of the XZM Ultrafine Grinding Mill, showcasing its capability for high-volume zeolite grinding:
| Model | Working diameter (mm) | Max feed size (mm) | Final size (mesh) | Output (kg/h) | Main motor power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 | 315 |
For Philippine applications, the XZM268 model is particularly recommended due to its higher output (up to 25,000 kg/h), which can meet the demands of large-scale drilling operations. The mill’s intelligent control system allows operators to adjust fineness precisely, ensuring the zeolite powder consistently meets 1000 mesh specifications.

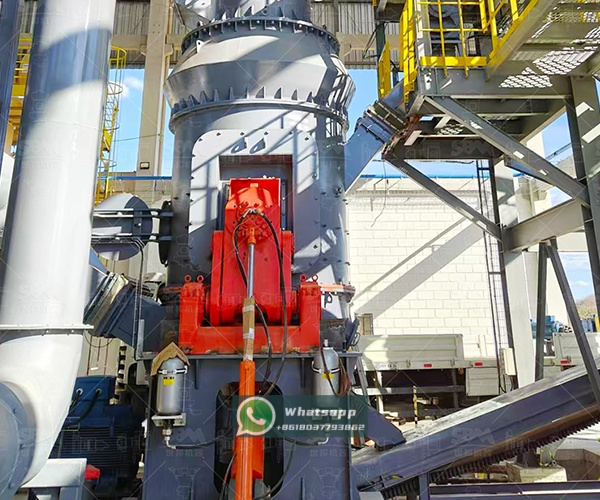

The LUM Ultrafine Vertical Mill integrates grinding, drying, classifying, and transportation into a single machine, making it an excellent choice for zeolite with inherent moisture. Its vertical design saves floor space, which is beneficial for compact facilities in the Philippines. The mill uses a advanced roller and plate system to achieve a product with high content of end-fines, and its D97 size distribution can be controlled within 5-30 microns (equivalent to 500-2500 mesh), easily covering the 1000 mesh target.
The technical parameters of the LUM Ultrafine Vertical Mill are as follows:
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
For zeolite grinding in the Philippines, the LUM1632 or LUM1836 models are ideal, offering capacities up to 15 t/h and fine-tuning capabilities for 1000 mesh output. The mill’s eco-friendly design reduces dust emissions, aligning with local environmental standards. Additionally, its low maintenance requirements and automated controls minimize downtime, crucial for continuous drilling mud production.
Implementing Zenith’s grinding mills in the Philippine context can transform zeolite processing for drilling mud. Imagine a scenario where a local supplier in Luzon sets up a grinding plant using the XZM268 mill. The raw zeolite, sourced from domestic mines, is fed into the mill and ground to 1000 mesh powder. This powder is then packaged and transported to offshore drilling rigs in the South China Sea. The benefits are multifold:
Philippine energy companies, such as those involved in the Malampaya gas field, could partner with Zenith to establish on-site grinding units. This would reduce reliance on imported additives and enhance supply chain resilience. The XZM and LUM mills’ modular designs allow for quick installation, even in remote areas with limited infrastructure.
By producing 1000-mesh zeolite locally, operators can cut costs by up to 30% compared to importing pre-ground powder. The high efficiency of Zenith’s mills translates to lower energy consumption per ton of output, reducing operational expenses. Moreover, the consistent quality of the powder improves drilling mud performance, leading to fewer wellbore issues and faster drilling rates. Environmental benefits include reduced carbon footprint from transportation and cleaner production processes.
Grinding zeolite to 1000 mesh for drilling mud in the Philippines is a technically demanding but rewarding endeavor. With the right equipment, such as Shanghai Zenith’s XZM Ultrafine Grinding Mill and LUM Ultrafine Vertical Mill, producers can achieve precise fineness, high throughput, and sustainable operations. These mills combine advanced engineering with user-friendly features, making them suitable for the diverse needs of the Philippine market. As the country continues to expand its energy exploration, investing in reliable grinding technology will be key to optimizing drilling efficiency and environmental stewardship. Shanghai Zenith stands ready to support this growth with cutting-edge solutions and expert service, ensuring that every particle of zeolite contributes to safer and more effective drilling mud.
