The oil and gas industry in Thailand, along with its growing geothermal and construction sectors, relies heavily on high-performance drilling fluids (mud) to ensure efficient and safe operations. Among the various additives used, natural zeolite has emerged as a material of strategic importance. Its unique aluminosilicate structure, characterized by high cation exchange capacity and adsorption properties, makes it an excellent candidate for viscosity control, shale stabilization, and waste encapsulation in drilling mud formulations. However, the efficacy of zeolite is intrinsically linked to its particle size distribution and purity. This is where specialized grinding technology becomes paramount. For operations requiring a production rate of 5 to 10 tons per hour (TPH), selecting the right grinding mill is not just an equipment choice—it’s a critical business decision impacting mud performance, operational cost, and overall project economics.
Zeolite minerals, primarily clinoptilolite and mordenite found in deposits across Asia, possess a microporous framework. To fully activate their surface area and ion-exchange sites for optimal performance in drilling mud, they must be ground to a precise fineness, typically ranging from 200 to 800 mesh (74 to 10 microns). Grinding zeolite presents specific challenges:
Therefore, the ideal grinding system for a 5-10 TPH zeolite processing line in Thailand must address these challenges through intelligent engineering, robust construction, and energy-efficient operation.
Several grinding mill configurations can achieve the target output. The choice depends on the desired final fineness, capital expenditure (CAPEX), operational expenditure (OPEX), and plant footprint considerations.

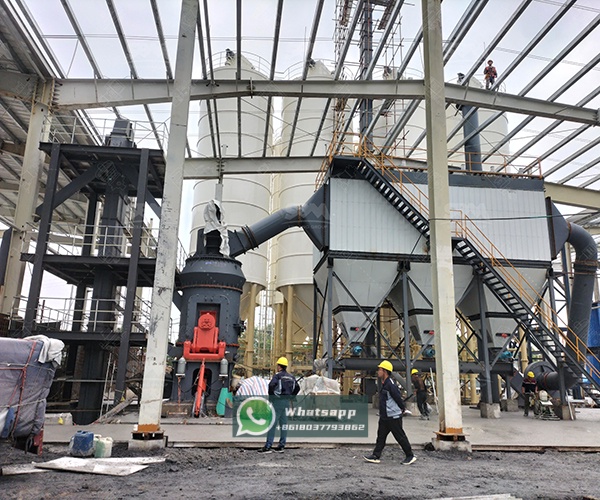

For a balanced approach combining grinding, drying, and classifying in a single unit, Vertical Grinding Mills are highly recommended. Their compact vertical design minimizes the plant footprint—a significant advantage in many Thai industrial parks. The material is ground between rollers and a rotating table, with hot air simultaneously drying the feed. This is particularly suitable for zeolite with moderate moisture content.
Shanghai Zenith Machinery Co., Ltd., an excellent manufacturer of industrial powder grinding equipment, offers the advanced LM Vertical Grinding Mill series. This mill integrates five functions—crushing, grinding, powder selection, drying, and material conveying—into one machine, making it an eco-friendly and space-saving production solution ideal for minerals like zeolite.
For a 5-10 TPH zeolite application focusing on drilling mud grade, the LM130K model is a perfect match. Its technical parameters align seamlessly with the production requirements:
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 (~80-400 mesh) | <38 | 200 |
As shown, the LM130K comfortably covers the 5-10 TPH target with significant headroom for future expansion. Its ability to produce powder in the 170-40 micron range allows for precise control to meet specific drilling mud specifications.
When drilling projects demand zeolite with higher surface area (finer than 400 mesh) for enhanced performance in complex wellbores, ultrafine grinding technology is essential. These mills utilize advanced classification systems to achieve precise top-size cuts.
Zenith’s XZM Ultrafine Grinding Mill is widely recognized for superfine powder production. It is engineered to grind soft to medium-hard materials with moisture content below 6%, making it suitable for dried zeolite feed. It can achieve an impressive output fineness of 325-2500 mesh.
For a 5-10 TPH output of fine zeolite powder, the XZM221 model presents a robust solution:
| Model | Working Diameter (mm) | Max Feed Size (mm) | Final Size (mesh) | Output (kg/h) | Main Motor Power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 | 75 |
While the upper range of its output (4.5 TPH) is slightly below the 5 TPH minimum for a single unit, a system with two XZM221 mills or a step-up to a larger model like the XZM268 could be configured for higher capacity. Its primary advantage lies in its exceptional ability to produce the ultrafine grades required for premium drilling fluid additives.
Selecting the right equipment partner is as crucial as selecting the right mill type. Shanghai Zenith Machinery Co., Ltd. brings decades of specialization in the research, development, and production of industrial powder grinding equipment. Their commitment is reflected in:
Establishing a reliable, efficient 5-10 TPH zeolite grinding line in Thailand is a strategic move for companies supplying the regional energy and construction industries. By understanding the material’s properties and the available grinding technologies, operators can make an informed decision. For most applications targeting drilling mud, the LM Vertical Grinding Mill (e.g., LM130K) offers an optimal balance of capacity, integrated processing, and energy efficiency. For ultra-high-performance requirements, the XZM Ultrafine Grinding Mill series provides the necessary fineness control.
Partnering with an experienced manufacturer like Shanghai Zenith ensures access to reliable technology, professional project guidance, and long-term operational success, solidifying your position in the value chain of Thailand’s vital drilling sector.
