Zeolite, a microporous aluminosilicate mineral, has become an increasingly important industrial raw material due to its unique adsorption, ion-exchange, and catalytic properties. In recent years, zeolite has found widespread applications across industries such as petrochemicals, detergents, construction materials, and paints. Particularly in the production of paint fillers, zeolite functions as an eco-friendly additive that enhances paint durability, smoothness, and resistance to environmental degradation.
In the Indian paint industry, the demand for natural fillers such as zeolite is rapidly increasing, driven by a push toward sustainable materials and consistent product quality. This trend, combined with the availability of abundant zeolite deposits in India, has created a strong demand for high-efficiency zeolite grinding mills with throughput capacities of 10–20 tons per hour (TPH).
Shanghai Zenith Machinery Co., Ltd., as a leading manufacturer of industrial grinding equipment in China, provides a range of professional solutions for zeolite grinding applications. With proven technical expertise and decades of R&D experience, Zenith offers mills capable of delivering fine and ultrafine zeolite powders that meet the strict specifications required by the paint filler industry.
India ranks among the fastest-growing paint markets globally, with an annual growth rate exceeding 10%. The shift toward high-performance coatings and industrial paints has created a steady demand for fillers that improve paint performance economically. Zeolite offers several advantages compared to conventional fillers like calcium carbonate or talc:
However, to maximize these benefits, zeolite must be ground to a controlled granularity (typically 45 μm or below) while maintaining structural integrity. This necessitates the use of energy-efficient and precise grinding mills.
The production of zeolite filler powders involves several key stages: crushing, grinding, classification, and collection. The central process—grinding—determines the final product quality and production economics. For capacities between 10–20 TPH, mills must maintain high throughput, uniform particle size distribution, and low power consumption.
Shanghai Zenith Machinery Co., Ltd. offers advanced grinding technologies through its MTW Trapezium Grinding Mill, MTM Medium-Speed Mill, and LM Vertical Grinding Mill series. These machines are designed with high wear resistance, adjustable fineness, and stable operation. They integrate drying and material conveying functions, ideal for processing zeolite with moderate moisture.
Based on the feeding size, moisture content, and fineness requirements for paint filler applications, MTW Trapezium Grinding Mill is one of the most suitable models for zeolite grinding. For customers requiring finer outputs, LM Vertical Grinding Mill can also be an excellent choice. Both machines deliver stable capacities within the 10–20 TPH range and ensure precise control over particle size distribution.

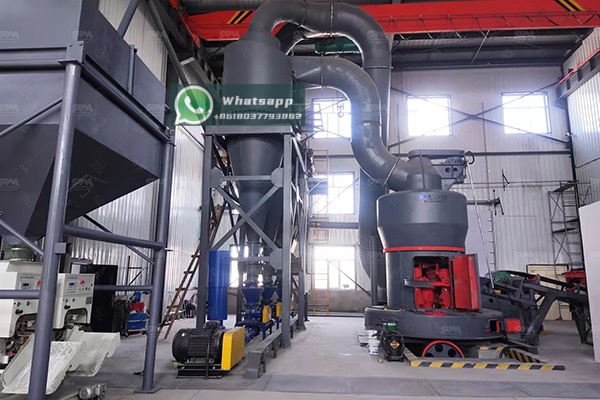

The MTW Trapezium Grinding Mill from Shanghai Zenith Machinery Co., Ltd. features a unique bevel gear drive system and internal thin-oil lubrication mechanism. The design ensures smoother transmission, lower energy loss, and longer service life. Its internal curved air ducts and special powder concentrator enhance efficiency while maintaining consistent fineness—crucial for paint filler applications.
| Model | Max. Feed Size (mm) | Final size (mm) | Capacity (t/h) | Main Motor (kW) |
|---|---|---|---|---|
| MTW138Z | <35 | 1.6–0.045 | 6–17 | 90 |
| MTW175G | <40 | 1.6–0.045 | 9.5–25 | 160 |
For a 10–20 TPH zeolite production line, the MTW175G model provides an ideal balance between high output and energy efficiency. Its fineness control range is perfectly suited for paint filler processing, ensuring smooth and uniform powder quality.
For clients seeking integrated production with drying, grinding, and classification in a single compact system, Zenith LM Vertical Grinding Mill is highly recommended. It can handle slightly higher moisture materials, an important feature in Indian climates where raw zeolite often contains significant humidity. The LM mill also supports larger feed sizes and ensures stable operation even under heavy load.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10–28 | 170–40 | <38 | 200 |
| LM190K | 1900 | 23–68 | 170–40 | <45 | 500 |
For a medium-scale zeolite grinding plant targeting 10–20 TPH, the LM130K model offers a compact design, low operational cost, and integrated dust collection features, aligning perfectly with industrial paint filler production standards.
A standard zeolite grinding system in India for paint filler typically consists of the following stages:
Automation systems with smart controls and adjustable frequency drives are often integrated to maintain stable feeding and precise fineness levels. Zenith’s advanced mills support intelligent control technology that reduces manual intervention, ensuring consistent quality and minimal downtime.
For customers in India, Shanghai Zenith Machinery Co., Ltd. offers localized services including plant design, installation, and maintenance. Our engineering teams can perform site surveys and customize the system configuration according to local raw material conditions and electricity standards.
Typical configurations for 10–20 TPH zeolite grinding plants involve:
Our previous installations in Gujarat, Rajasthan, and Tamil Nadu have demonstrated exceptional results—improving paint filler consistency, reducing maintenance frequency, and lowering total production costs by over 20% compared to local mills.
The increasing use of zeolite as a paint filler in India represents a significant opportunity for manufacturers adopting modern grinding technology. With stable 10–20 TPH performance, superior energy efficiency, and customizable fineness, Shanghai Zenith’s MTW and LM series mills offer the most reliable solution for industrial zeolite processing. Combined with Zenith’s strong technical support, these mills ensure clients achieve consistent, high-quality output while maintaining environmental compliance and cost efficiency.
By choosing Shanghai Zenith Machinery Co., Ltd. as a partner, paint manufacturers and mineral processors in India can expect a comprehensive service package—from plant design to commissioning—backed by decades of grinding expertise and global application experience. Zenith continues to lead the industrial milling field, delivering next-generation equipment for the sustainable future of materials processing.
