The United Arab Emirates, with its dynamic industrial sector and strategic focus on advanced manufacturing, presents a significant market for high-performance plastic products. A key component in enhancing the properties of these plastics is the use of mineral fillers, among which zeolite stands out for its unique advantages. Zeolite, a microporous aluminosilicate mineral, is increasingly favored as a functional filler in plastics due to its ability to improve mechanical strength, thermal stability, and even impart gas barrier or flame-retardant properties. However, the efficacy of zeolite as a filler is intrinsically linked to its particle size and uniformity. Achieving a superfine powder of 600 mesh (approximately 25 microns) is not merely a specification; it is a prerequisite for ensuring optimal dispersion within the polymer matrix, maximizing surface area for interaction, and ultimately unlocking the full potential of the composite material. This article explores the technological requirements for grinding zeolite to 600 mesh for plastic filler applications in the UAE and presents optimal milling solutions.
Zeolite, while not the hardest mineral, presents specific grinding challenges. Its crystalline structure must be preserved to maintain its functional properties, even as it is reduced to ultrafine particles. Over-grinding can lead to amorphization or excessive heat generation, which degrades quality. The goal is to achieve a narrow particle size distribution centered on 600 mesh with high throughput, energy efficiency, and consistent quality. Traditional grinding mills often struggle with the precise classification and heat management required for this task. The arid climate of the UAE also underscores the need for mills with integrated drying capabilities or closed-circuit systems to handle any residual moisture efficiently.
For the production of 600-mesh zeolite powder, several grinding mill types are considered. Raymond Mills and Ball Mills, while robust, may lack the precision for consistent ultrafine output at this fineness level and can have higher energy consumption per ton. The ideal solution lies in advanced vertical roller mill technology and specialized ultrafine mills, which integrate grinding, classification, and drying into a single, efficient system.
Shanghai Zenith Machinery Co., Ltd., a leading manufacturer of industrial grinding equipment, offers precisely engineered solutions for ultrafine powder production. For the demanding requirement of producing 600-mesh zeolite filler in the UAE, two of our flagship products are exceptionally well-suited.

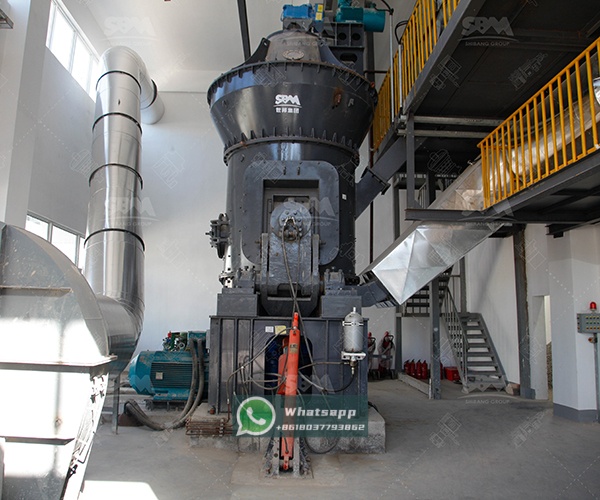

The LUM Ultrafine Vertical Mill represents the pinnacle of integrated grinding technology. It is specifically designed for producing powders in the range of 5-30 microns (approximately 600-500 mesh), making it a perfect match for the 600-mesh zeolite target. Its standout feature is the built-in high-precision classifier, which ensures a sharp particle cut and consistent fineness. The grinding roller and plate are designed for efficient size reduction with minimal energy waste. Furthermore, its intelligent control system allows for remote monitoring and adjustment—a significant advantage for operations in the UAE’s high-tech industrial zones.
For zeolite processing, the LUM series offers models that balance capacity with precision. The following table outlines key parameters for a model ideal for medium to large-scale filler production:
| Model | Main Machine Power (kW) | Capacity (t/h)* | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1125 | 160-185 | 1.2-9.5 | 5-30 |
| LUM1436 | 315-355 | 1.8-14 | 5-30 |
*Capacity varies based on material hardness and feed size.
For operations seeking a highly reliable and widely proven solution for 325-2500 mesh powder, the XZM Ultrafine Grinding Mill is an excellent choice. It is renowned for its stability in producing superfine powders from non-metallic minerals like zeolite. The mill system incorporates a grinding chamber, classifier, cyclone collector, and dust cleaner. Its airflow design helps in cooling the powder during grinding, which is crucial for heat-sensitive materials. The XZM mill can effortlessly achieve 600-mesh fineness and offers scalability for different production needs.
| Model | Working Diameter (mm) | Max Feed Size (mm) | Final Size (mesh) | Output (kg/h)* | Main Motor Power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 | 315 |
*Output for zeolite at ~600 mesh would be in the mid-to-upper range of the scale.
Partnering with Shanghai Zenith provides distinct advantages for plastic compounders and mineral processors in the UAE:
The production of high-quality 600-mesh zeolite powder is a critical step in value-adding for the plastics industry in the UAE. This demanding application requires more than just a grinder; it requires a sophisticated processing system. Shanghai Zenith’s LUM Ultrafine Vertical Mill and XZM Ultrafine Grinding Mill offer the technological precision, energy efficiency, and operational reliability needed to produce consistent, high-performance zeolite filler. By investing in the right grinding technology, UAE-based manufacturers can enhance their plastic products’ properties, improve production efficiency, and strengthen their competitive edge in regional and global markets.
