The processing of blended materials presents unique challenges in the industrial grinding sector. Unlike homogeneous raw materials, blended compositions require milling systems capable of handling varying hardness, moisture content, and particle size distributions while maintaining consistent output quality. Shanghai Zenith Machinery Co., Ltd., as an excellent manufacturer of ore grinding equipment in China, has made significant achievements in the field of ultra-fine powder grinding, developing specialized solutions for these complex applications.
This comprehensive analysis examines the various mill systems available for grinding blended materials, with particular focus on their operational principles, advantages, limitations, and suitability for different blended material scenarios. Understanding these factors is crucial for selecting the optimal grinding solution that balances efficiency, product quality, and operational costs.
Blended materials, by their nature, contain multiple components with different physical and chemical properties. This heterogeneity creates several processing challenges:

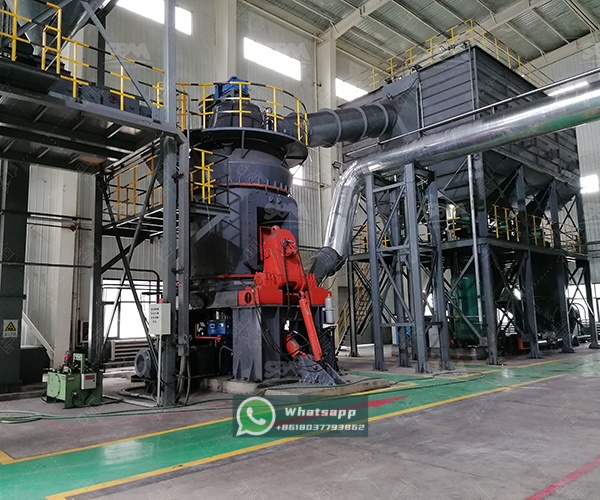

Vertical grinding mills have gained significant popularity in recent years due to their compact footprint and integrated processing capabilities. These systems typically combine multiple functions—crushing, grinding, powder selection, drying, and material conveying—within a single unit.
The LM Vertical Grinding Mill series from Shanghai Zenith represents an advanced solution in this category. These mills are particularly well-suited for blended materials due to their ability to handle variations in material properties while maintaining stable operation. The integrated drying function is especially valuable when processing blended materials with moisture content fluctuations.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
The LM series demonstrates excellent performance with blended materials through its adjustable grinding pressure and integrated classifier system, which allows for precise control over final product fineness regardless of variations in feed composition.
For applications requiring extremely fine final products, specialized ultrafine grinding systems offer distinct advantages. The LUM Ultrafine Vertical Mill from Zenith integrates grinding, drying, classifying, and transportation functions while occupying minimal space. This system is designed to produce products with high content of end-fines and features intelligent control for easier maintenance.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
For blended materials requiring superfine powder production, the XZM Ultrafine Grinding Mill provides another excellent option. Suitable for grinding soft or medium-hard materials with moisture content below 6%, it can achieve an output fineness of 325-2500 mesh, making it ideal for high-value blended products in pharmaceutical, chemical, and advanced material applications.

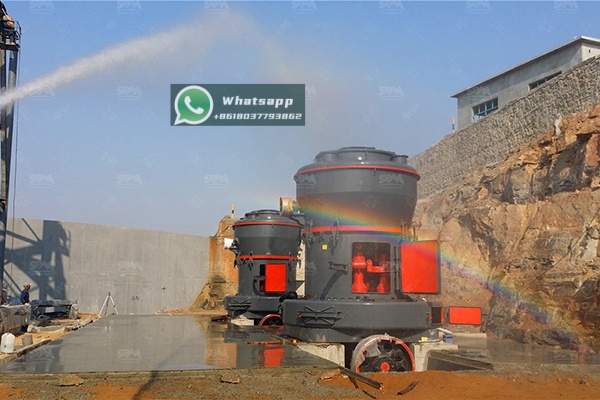

Medium-speed grinding systems offer a balance between traditional Raymond mills and more advanced vertical systems. The MTW Trapezium Grinding Mill, with its multiple patents, is known for compact structure, long service life, and eco-friendly design. It processes materials with maximum input size of 50mm, producing final product as fine as 0.038mm.
The MTM Medium-Speed Grinding Mill adopts world-leading powder processing technology and serves as an ideal substitute for traditional mills like Raymond Mill. Its upgraded structure provides higher efficiency and energy-saving production, particularly beneficial for blended materials with moderate grinding requirements.
Ball mills remain a fundamental technology in grinding applications, offering high adaptability to raw materials and ideal continuous production capabilities. Both dry and wet processes are available, with wet processing particularly advantageous for certain blended material applications where slurry formation is desirable or necessary.
The versatility of ball mills makes them suitable for a wide range of blended materials, though they may present challenges with materials having significantly different grindability characteristics. The continuous innovation in ball mill design, including the development of advanced lining materials and grinding media, continues to enhance their applicability to complex blended material scenarios.
For specific blended material requirements, specialized mill types offer targeted solutions:
Hammer Mills are primarily used for coarse powder and sand production, with final product size controllable within 0-3mm. Their wide applications, high productivity, and easy maintenance make them suitable for preliminary size reduction of blended materials before finer grinding stages.
Raymond Mills continue to offer benefits for energy saving and environmental protection. With high grinding efficiency, lower energy consumption, and high economic profits, they remain relevant for certain blended material applications, particularly where moderate fineness requirements align with their operational characteristics.
Choosing the appropriate grinding system for blended materials requires careful consideration of multiple factors:
Modern grinding systems for blended materials increasingly incorporate advanced control strategies to optimize performance:
The selection of an appropriate grinding system for blended materials represents a critical decision that significantly impacts operational efficiency, product quality, and economic performance. As demonstrated by Shanghai Zenith’s comprehensive product range, modern grinding technology offers specialized solutions for virtually any blended material scenario.
For operations requiring integrated processing with compact footprint, the LM Vertical Grinding Mill series provides exceptional capabilities. For ultrafine grinding applications, the LUM Ultrafine Vertical Mill delivers precise control over final product characteristics. Understanding the specific requirements of each blended material application enables optimal selection from the available grinding technologies, ensuring both technical and economic success.
The continued advancement in grinding technology, particularly in control systems and energy efficiency, promises further improvements in blended material processing. By leveraging these innovations and selecting appropriate grinding systems, operations can achieve superior performance in handling the complex challenges presented by blended material grinding applications.
