In today’s dynamic industrial landscape, operational flexibility has become a critical factor in selecting grinding equipment. The ability to adapt to varying feed materials, adjust product fineness, and maintain efficiency across different operating conditions separates advanced milling technologies from conventional solutions. This comprehensive analysis examines the operational flexibility across various mill technologies, with particular emphasis on how modern designs address the evolving needs of mineral processing operations.
Operational flexibility in milling equipment encompasses several key dimensions: the ability to handle varying feed sizes and moisture content, adjust product fineness across a wide range, maintain efficiency at different throughput rates, and adapt to changing operational requirements with minimal downtime. Traditional grinding technologies often excel in specific applications but lack the versatility demanded by modern processing plants that must respond quickly to market fluctuations and raw material variations.
Ball mills have long been the industry standard for many grinding applications, offering reliable performance and relatively simple operation. Their ability to handle both wet and dry grinding processes provides some degree of flexibility. However, traditional ball mills suffer from significant limitations in operational flexibility. They typically require consistent feed size and composition to maintain optimal performance, and adjusting product fineness often involves changing grinding media size or mill speed, which can be time-consuming and require production stoppages.
The energy efficiency of ball mills decreases significantly when operating outside their designed parameters, making them less suitable for applications requiring frequent changes in product specifications. Additionally, their large footprint and high energy consumption relative to newer technologies present operational challenges in today’s cost-conscious environment.
Raymond mills represent an evolution in grinding technology that improved upon some limitations of traditional ball mills. Their vertical configuration and use of spring-loaded grinding rollers provided better control over product fineness. Modern Raymond mills, such as the YGM series from Shanghai Zenith Machinery, offer improved flexibility through adjustable grinding pressure and classifier speed.
| Model | Roller Quantity (pcs) | Max.Feed Size (mm) | Discharging Size | Capacity (t/h) |
|---|---|---|---|---|
| YGM8314 | 3 | 20 | 1.6-0.045 | 1.2-4.6 |
| YGM9517 | 4 | 25 | 1.6-0.045 | 2.1-8 |
| YGM4121 | 5 | 30 | 1.6-0.045 | 5-11 |
While offering improvements in flexibility over basic ball mills, traditional Raymond mills still face challenges in handling highly abrasive materials and achieving the finest particle sizes required for advanced applications.
The development of vertical grinding mills represented a significant leap forward in operational flexibility. By integrating multiple functions—crushing, grinding, powder selection, drying, and material conveying—into a single compact unit, these mills offer unprecedented adaptability to changing operational requirements.

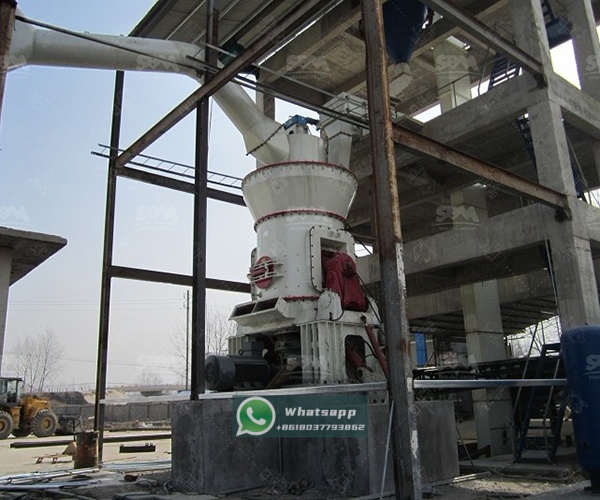

Shanghai Zenith Machinery’s LM Vertical Grinding Mill series exemplifies this approach to flexibility. The modular design allows for customization based on specific application requirements, while the integrated drying capability enables processing of materials with higher moisture content without requiring separate drying equipment. This multi-functionality significantly enhances operational flexibility by reducing the need for additional processing steps and equipment.
| Model | Plate diameter (mm) | Capacity (t/h) | Output fineness (μm) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
The operational flexibility of LM Vertical Grinding Mills extends beyond basic parameter adjustments. Their design allows for quick changes in product fineness through adjustable classifier speed, while the grinding pressure can be modified to accommodate different material hardness characteristics. This adaptability makes them suitable for operations that process multiple material types or require frequent changes in product specifications.
For applications requiring extremely fine products, ultrafine grinding mills offer specialized flexibility. Shanghai Zenith Machinery’s LUM Ultrafine Vertical Mill and XZM Ultrafine Grinding Mill represent the cutting edge in this category, providing exceptional control over product particle size distribution while maintaining operational efficiency.
The LUM Ultrafine Vertical Mill integrates grinding, drying, classifying, and transportation in a compact design that occupies minimal space while delivering precise control over product specifications. Its intelligent control system enables operators to quickly adjust parameters to accommodate different feed materials or product requirements, significantly enhancing operational flexibility.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
This level of control, combined with the ability to maintain efficiency across a wide range of operating conditions, makes ultrafine vertical mills particularly valuable for operations producing high-value specialty products where consistent quality and the ability to quickly adjust to customer requirements are critical.
The maximum feed size handling capability varies significantly across mill technologies, directly impacting operational flexibility. Traditional ball mills typically require pre-crushed feed materials, limiting their flexibility in operations where feed size may vary. In contrast, advanced vertical mills like the LM series from Shanghai Zenith Machinery can handle larger feed sizes (up to 50mm for some models), reducing the need for extensive pre-processing and enhancing overall system flexibility.
The ability to produce products across a wide fineness range is another critical aspect of operational flexibility. While traditional technologies often operate within limited fineness ranges, modern mills offer significantly broader capabilities. For example, the XZM Ultrafine Grinding Mill can produce products ranging from 325 to 2500 mesh, providing exceptional flexibility for operations serving multiple markets or producing various product grades.
The capacity range over which mills can operate efficiently varies considerably across technologies. Advanced designs typically maintain efficiency across a broader operating range, allowing operations to scale production up or down in response to market demands without significant efficiency penalties. The MTW Trapezium Grinding Mill, for instance, offers models with capacity ranges from 3-9 t/h to 15-45 t/h, providing options for different scale operations while maintaining flexibility within each model’s operating range.
A mineral processing operation facing fluctuating market demands and varying raw material characteristics recently demonstrated the value of operational flexibility in mill selection. By replacing their traditional ball mill circuit with Shanghai Zenith Machinery’s LM Vertical Grinding Mill system, the operation achieved significant improvements in several flexibility metrics.
The transition enabled the operation to handle feed size variations up to 45mm without additional crushing stages, adjust product fineness from 170 to 40 microns through simple control system adjustments, and maintain efficiency while operating between 40% and 100% of design capacity. The integrated drying capability further enhanced flexibility by allowing processing of materials with higher moisture content during wet seasons without requiring separate drying equipment.
This case highlights how selecting appropriate mill technology based on comprehensive flexibility assessment can transform operational capabilities, providing the adaptability needed to thrive in dynamic market conditions.
The evolution of grinding mill technology continues to focus on enhancing operational flexibility. Emerging trends include the integration of artificial intelligence for real-time optimization, modular designs that enable quick reconfiguration for different applications, and advanced control systems that automatically adjust operating parameters to maintain optimal performance despite variations in feed characteristics.
Shanghai Zenith Machinery’s ongoing research and development in ultra-fine powder grinding reflects this trend, with newer models incorporating smarter control systems and more adaptable designs. These advancements promise to further enhance the operational flexibility that has become increasingly critical in competitive industrial environments.
Operational flexibility has emerged as a decisive factor in grinding mill selection, often outweighing traditional considerations like initial capital cost. The comparison across mill technologies reveals a clear progression from the limited flexibility of traditional ball mills to the highly adaptable modern vertical and ultrafine grinding systems.
Technologies such as Shanghai Zenith Machinery’s LM Vertical Grinding Mill and LUM Ultrafine Vertical Mill represent the current state of the art in operational flexibility, offering integrated functionality, broad operating ranges, and quick adjustment capabilities that enable operations to adapt quickly to changing requirements. As industrial operations face increasing pressure to optimize efficiency while maintaining adaptability, the value of these advanced milling technologies will continue to grow, driving further innovation in this critical field.
