In modern industrial processing, the ability to efficiently produce powders of varying fineness grades represents a critical competitive advantage. Different applications demand specific particle size distributions, from coarse aggregates to superfine powders measured in microns. The flexibility to transition between these requirements without significant equipment changes or production downtime is what separates advanced grinding systems from conventional ones. This article provides a comprehensive comparison of grinding technologies and their capabilities for producing different fineness grades, with particular focus on the innovative solutions offered by Shanghai Zenith Machinery Co., Ltd., a leading manufacturer in the field of ultra-fine powder grinding equipment.
The term ‘fineness’ in industrial contexts refers to the particle size distribution of powdered materials, typically measured in micrometers (μm) or mesh sizes. Different industries require specific fineness grades for optimal performance:
Coarse grinding applications typically serve construction materials, agricultural products, and preliminary size reduction stages. Materials processed in this range include limestone for cement, agricultural limestone, and various ores requiring initial size reduction before further processing.
This range represents the workhorse of many industrial processes, including fillers for plastics and paints, conventional cement grinding, and various chemical applications. The ability to consistently maintain product within this range is crucial for quality control.
Fine powders find applications in advanced materials, specialized coatings, and high-performance fillers. Achieving consistent results in this range requires sophisticated grinding technology with precise classification systems.
The ultra-fine domain serves high-value applications including pharmaceuticals, advanced ceramics, specialty chemicals, and nanomaterials. Processing at this scale demands specialized equipment with advanced separation and classification capabilities.
Ball mills represent one of the oldest grinding technologies still in widespread use. Their simple operating principle—using tumbling media to impact and abrade material—makes them reliable but limited in flexibility. While capable of producing a wide range of fineness, ball mills typically struggle with energy efficiency when targeting specific narrow particle distributions. The wet and dry ball mill solutions from Shanghai Zenith demonstrate improved efficiency through optimized rotational speeds and media selection, but the fundamental limitations of the technology remain.
Raymond mills, with their spring-loaded grinding rollers, have served as industry standards for medium-fine grinding for decades. Shanghai Zenith’s YGM series Raymond mills offer reliable performance for materials in the 1.6-0.045mm range, making them suitable for many industrial minerals and medium-hardness materials. However, their flexibility for producing different fineness grades requires manual adjustment of the classifier, which can impact production continuity.
The MTM Medium-Speed Grinding Mill represents an evolution beyond traditional Raymond mill technology. With improved mechanical designs and more efficient classification systems, these mills offer better control over product fineness while maintaining energy efficiency. The multiple roller configurations in different MTM models provide some flexibility, but the technology still faces challenges when transitioning between dramatically different fineness requirements.
Shanghai Zenith’s MTW Trapezium Grinding Mill incorporates multiple patents to deliver improved flexibility across different fineness requirements. The technology features an advanced bevel gear overall transmission, internal thin oil lubrication system, and curved air duct design. These innovations contribute to the mill’s ability to produce powders ranging from 1.6mm down to 0.045mm while maintaining efficiency.
The MTW series demonstrates particular strength in its capacity to adjust output fineness without significant operational changes. The integrated classifier system allows operators to target specific fineness grades within the mill’s operating range, making it suitable for production facilities that serve multiple market segments with different product specifications.
For operations requiring exceptional flexibility in the fine and ultra-fine ranges, Shanghai Zenith’s LUM Ultrafine Vertical Mill represents a technological breakthrough. This advanced system integrates grinding, drying, classifying, and conveying into a single, compact unit capable of producing powders with D97 values between 5-30 microns.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The LUM series stands out for its intelligent control system, which enables seamless transitions between different fineness targets. The mill’s advanced classification technology, featuring multiple rotor stages and precision air flow control, allows operators to precisely define product specifications without mechanical adjustments or production interruptions.
When production requirements extend into the superfine domain (325-2500 mesh), the XZM Ultrafine Grinding Mill offers unparalleled flexibility. This specialized equipment can process soft to medium-hard materials with moisture content below 6%, producing exceptionally fine powders for high-value applications.
| Model | Working diameter (mm) | Max feed size (mm) | Final size (mesh) | Output (kg/h) | Main motor power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 | 315 |
The XZM series demonstrates remarkable flexibility through its adjustable rotational speeds and classifier configurations. The ability to produce such a wide range of fineness—from conventional fine powders to superfine products approaching nanoscale—makes this technology particularly valuable for companies serving multiple market segments or developing new products with evolving specifications.

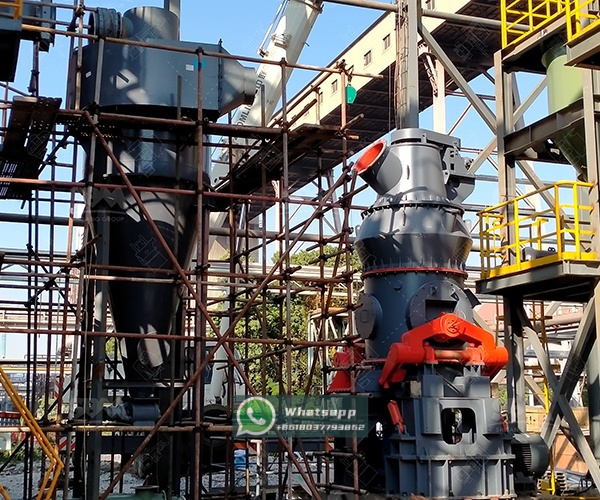

Shanghai Zenith’s LM Vertical Grinding Mill series represents perhaps the most flexible solution for operations requiring frequent changes in product fineness. By integrating five functions—crushing, grinding, powder selection, drying, and material conveying—into a single machine, these systems eliminate multiple process steps while offering exceptional control over final product specifications.
The vertical mill configuration provides inherent advantages for flexibility. The grinding pressure can be precisely controlled through hydraulic systems, while advanced classifier technology enables real-time adjustments to product fineness. The LM series includes specialized versions for minerals, coal, slag, and fine powders, each optimized for specific material characteristics while maintaining the core flexibility that defines vertical mill technology.
The inherent properties of processed materials significantly impact a mill’s flexibility in producing different fineness grades. Hardness, abrasiveness, moisture content, and chemical composition all influence the optimal grinding technology and the achievable fineness range. Shanghai Zenith’s diverse product portfolio ensures that operators can select technology matched to their specific material characteristics.
The classification system represents the most critical component for determining fineness flexibility. Advanced classifiers with adjustable rotor speeds, blade configurations, and air flow controls enable precise targeting of specific particle size distributions. The evolution from static to dynamic classifiers represents one of the most significant advancements in grinding technology flexibility.
Modern grinding systems increasingly rely on sophisticated control systems to maintain flexibility. Automated adjustments to grinding pressure, classifier speed, and feed rates enable seamless transitions between different fineness targets. Shanghai Zenith’s focus on intelligent control systems across their product line enhances operational flexibility while reducing the skill requirements for operators.
The investment in flexible grinding technology must be evaluated against operational benefits. Systems capable of producing multiple fineness grades typically command higher initial costs but offer significant advantages:
A single flexible grinding system can often replace multiple dedicated units, reducing capital investment, floor space requirements, and maintenance costs.
The ability to quickly respond to changing market demands or customer specifications provides competitive advantages that can justify premium technology investments.
Modern flexible grinding systems typically incorporate energy-saving technologies that reduce operating costs while maintaining product quality across different fineness grades.
A representative case involves a mineral processing facility using Shanghai Zenith’s LUM Ultrafine Vertical Mill to serve three distinct market segments: fillers for plastics (D97: 15-20μm), specialty coatings (D97: 8-12μm), and advanced ceramic precursors (D97: 5-8μm). The single grinding system successfully produces all three product specifications with minimal transition time between grades, demonstrating the practical flexibility achievable with advanced grinding technology.
The evolution of grinding technology continues to focus on enhancing flexibility while improving efficiency. Emerging trends include:
Smart grinding systems with integrated sensors and cloud connectivity enable predictive adjustments and remote optimization for different fineness requirements.
Innovations in wear-resistant materials extend the application range of flexible grinding systems to more abrasive materials without compromising fineness control.
Combining different grinding principles in single systems may further expand flexibility ranges while maintaining energy efficiency.
The flexibility to produce different fineness grades represents a critical capability in modern industrial processing. While various grinding technologies offer different degrees of flexibility, advanced solutions like Shanghai Zenith’s LUM Ultrafine Vertical Mill and XZM Ultrafine Grinding Mill demonstrate that modern engineering can successfully bridge the gap between coarse and ultra-fine production in single systems. The economic and operational advantages of flexible grinding technology make it an increasingly attractive investment for forward-thinking operations seeking to maximize their market responsiveness and production efficiency.
As grinding technology continues to evolve, the trend toward greater flexibility across wider fineness ranges appears certain to continue. Companies like Shanghai Zenith Machinery Co., Ltd. remain at the forefront of this evolution, developing solutions that empower industrial operations to meet diverse market demands with unprecedented efficiency and precision.
