A Deep Dive Into The Control Philosophy Of A Grinding Circuit

A Deep Dive Into The Control Philosophy Of A Grinding Circuit

In the mineral processing industry, grinding circuits represent one of the most critical and energy-intensive stages. The primary objective is to reduce the size of run-of-mine ore to a specific fineness that liberates valuable minerals from the gangue, making them amenable to subsequent separation processes. However, achieving optimal efficiency in a grinding circuit is a complex challenge that extends far beyond mere size reduction. It involves a sophisticated control philosophy balancing throughput, product size, energy consumption, and operational stability. This article explores the core principles of grinding circuit control and highlights how advanced equipment from industry leaders like Shanghai Zenith Machinery Co., Ltd. can be integral to implementing a successful control strategy.

The Fundamental Components and Control Loops

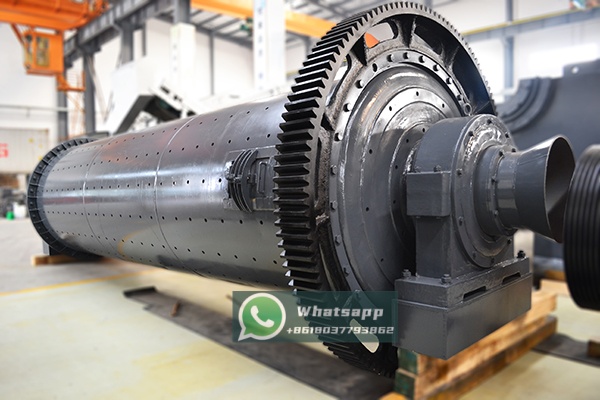

A typical closed-circuit grinding system consists of a mill (e.g., a Ball Mill or a Vertical Grinding Mill), a classifier (e.g., a cyclone or a mechanical air separator), and a network of pumps and conveyors. The control philosophy is built upon several interacting loops:

• Mill Feed Control: This is the primary loop for stabilizing the circuit. A consistent feed rate of fresh ore is crucial. Sudden fluctuations can lead to mill overload (leading to a coarse product and potential equipment damage) or under-load (leading to inefficient use of energy and media wear).
• Mill Sound or Power Control: The acoustic signature or power draw of a mill is a direct indicator of its load. A filled mill will have a dampened sound and a higher power draw. This signal is often used to control the feed rate, creating a feedback loop that maintains the mill operating at its optimal capacity.
• Particle Size Control: The ultimate goal is a product of a specific size. Modern systems use online particle size analyzers to measure the fineness of the cyclone overflow or final product. This data is used to manipulate the classifier’s operation, such as adjusting the cyclone feed pressure or the speed of a separator in a dry grinding circuit.
• Cyclone Feed Density Control: The density of the slurry fed to the hydrocyclones significantly impacts classification efficiency. A density control loop, typically using a density gauge and a water addition valve, ensures the slurry is at the optimal consistency for sharp separation.

Advanced Control Strategies: From PID to Model Predictive Control

While basic Proportional-Integral-Derivative (PID) controllers can handle individual loops, the highly interactive nature of a grinding circuit often necessitates more advanced strategies. The key challenge is that an adjustment in one loop (e.g., increasing mill feed) has cascading effects on all others (e.g., changing cyclone density, product size, and recirculating load).

Expert systems and Model Predictive Control (MPC) have become industry standards for optimizing complex circuits. An MPC uses a dynamic mathematical model of the entire process to predict future behavior. It can then calculate the best sequence of control actions to keep the process within constraints while driving it towards an economic objective, such as maximizing throughput at the target product size or minimizing energy consumption per ton of product.

The Role of Grinding Equipment in Control Philosophy

The choice of grinding equipment is not separate from the control strategy; it is foundational. Modern mills designed with stability, efficiency, and advanced automation compatibility in mind can significantly simplify the control task and enhance overall performance.

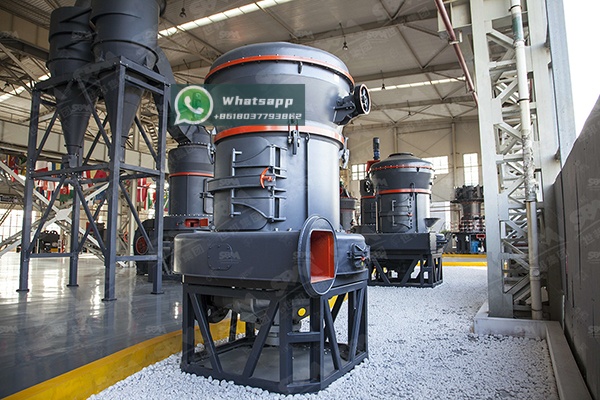

For instance, Shanghai Zenith’s LM Vertical Grinding Mill exemplifies this integration. By combining crushing, grinding, powder selection, drying, and conveying into a single unit, it inherently reduces the number of variables that need to be controlled compared to a traditional ball mill circuit. Its compact and stable structure minimizes operational fluctuations, providing a more predictable process for advanced control systems to manage.

For applications requiring ultra-fine powders, the control philosophy must address the challenges of increased specific energy consumption and the potential for particle agglomeration. Here, specialized equipment like Zenith’s LUM Ultrafine Vertical Mill is engineered for superior performance. It integrates an high-efficiency classifier that allows for precise control over the final product size distribution (D97 from 5-30μm). Its intelligent control system simplifies the operator’s task, allowing for stable production of high-value fine powders with consistent quality.

Integrating Instrumentation and Data for Intelligent Control

A robust control philosophy is impossible without reliable data. The modern grinding circuit is instrumented with a suite of sensors:

• Ore Feeders with weigh scales for mass flow.
• Particle Size Analyzers (PSD) for real-time product fineness.
• Density Gauges for slurry streams.
• Power Meters on mill and pump motors.
• Acoustic Sensors on mill shells.
• Pressure and Flow Transmitters throughout the circuit.

This data is fed into a Plant Historian and a Distributed Control System (DCS). The control philosophy is then executed through this digital infrastructure, enabling real-time optimization, advanced alarming, and detailed performance reporting. The trend towards Industrial Internet of Things (IIoT) platforms allows for even deeper analysis, predictive maintenance, and remote expert support.

Conclusion: A Synergistic Approach

The control philosophy of a grinding circuit is a multi-layered endeavor. It begins with stabilizing the basic loops, progresses to optimizing the interactions between them with advanced control strategies, and is fundamentally enabled by well-designed, efficient, and controllable grinding equipment. Companies like Shanghai Zenith Machinery Co., Ltd. contribute significantly to this field by providing machinery that is not only high-performing but also designed with automation and stability in mind, such as the LM Vertical Grinding Mill and the LUM Ultrafine Vertical Mill.

Ultimately, a successful grinding circuit control philosophy is not a set-it-and-forget-it solution. It is a dynamic, continuous improvement process that leverages robust equipment, precise instrumentation, and intelligent software to squeeze the maximum value from every ton of ore and every kilowatt-hour of energy consumed.
