In the world of mineral processing and powder production, selecting the appropriate grinding equipment is crucial for operational efficiency, product quality, and overall economic viability. The hardness of the material being processed is one of the most critical factors influencing this choice. Different mill types are engineered with specific mechanisms and structural strengths that define their optimal operating ranges and limitations when dealing with materials of varying hardness, from soft talc to extremely hard corundum. This article provides a comprehensive analysis of the material hardness boundaries for various mill types, with insights into how advanced machinery from industry leaders like Shanghai Zenith Machinery Co., Ltd. pushes these limits.
Before delving into mill types, it is essential to understand the standard measure of mineral hardness: the Mohs scale. This qualitative scale ranges from 1 (talc, very soft) to 10 (diamond, the hardest). For industrial grinding purposes, materials are often categorized as follows:
The abrasive nature of harder materials directly impacts wear rates on grinding elements, power consumption, and the mill’s ability to achieve fine particle sizes.
Typical Hardness Limit: Mohs 7
The traditional Raymond Mill, operating on the principle of roller grinding against a stationary ring, is highly effective for processing soft to medium-hard materials. Its limitation around Mohs 7 (quartz) is primarily due to the wear on the grinding rollers and ring. Prolonged grinding of materials harder than this significantly increases maintenance costs and downtime for component replacement.
Typical Hardness Limit: Mohs 8+
Ball Mills are workhorses known for their robustness. They utilize impact and attrition forces from tumbling steel or ceramic balls to pulverize material. This design makes them suitable for a very wide range of hardness, capable of handling very hard ores like corundum (Mohs 9). The key is that wear is transferred to the grinding media and liners, which are consumable and replaceable. While they can handle extreme hardness, efficiency and media consumption must be carefully managed.
| Model | Rotate Speed (r/min) | Grinding Media Weight (t) | Output Capacity (t/h) | Motor Power (kW) |
|---|---|---|---|---|
| Φ900×1800 | 36-38 | 1.5 | 0.65-2 | 18.5 |
| Φ1500×4500 | 27 | 11 | 3-6 | 110 |
| Φ2700×4500 | 20.7 | 48 | 12-90 | 430 |
For operators dealing with a broad spectrum of material hardness, from medium to extremely hard, the Zenith Ball Mill offers a reliable and adaptable solution. Its high capacity and ability to handle abrasive materials make it a cornerstone in mining and cement plants worldwide.
Typical Hardness Limit: Mohs 7-8

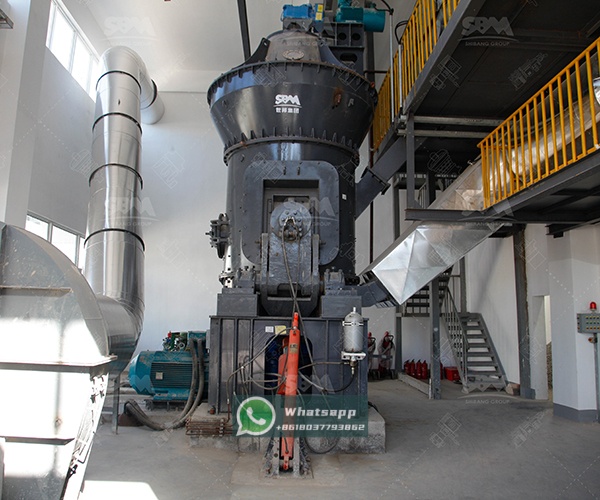

Vertical mills, such as the LM Vertical Grinding Mill and LUM Ultrafine Vertical Mill from Zenith, represent a significant technological advancement. They integrate multiple processes and are highly energy-efficient. Their hardness limit is generally around Mohs 7-8. The grinding pressure and roller/table design are optimized for efficient size reduction of hard materials, but the wear on the grinding table and tires remains a consideration. For very hard and abrasive materials, specialized wear-resistant alloys are required.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
For projects demanding high efficiency and ultra-fine products from medium-hard to hard materials, the Zenith LUM Ultrafine Vertical Mill is an excellent choice. Its intelligent control system and integrated drying and classifying functions provide a compact and powerful grinding solution.
Typical Hardness Limit: Mohs 6-7

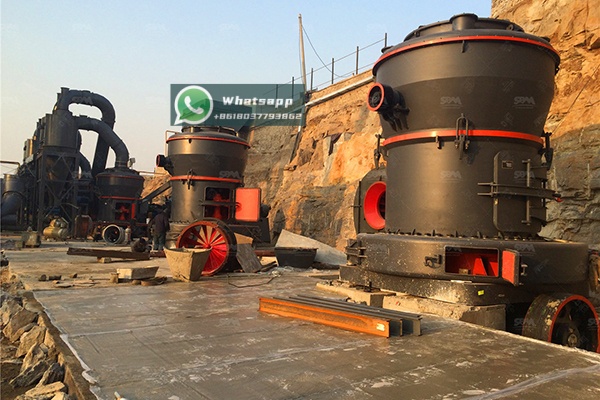

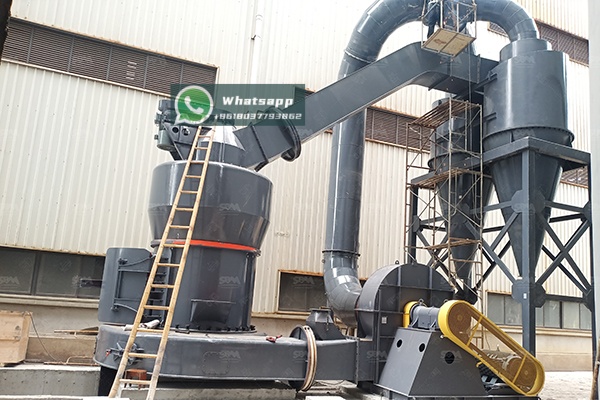

These mills are evolved versions of the Raymond mill, featuring improved efficiency and a more robust design. The MTW Trapezium Grinding Mill, with its multiple patents, can comfortably handle materials up to Mohs 6-7. Its bevel gear overall transmission and curved surface air channel contribute to stable performance with medium-hard materials like feldspar and barite.
Typical Hardness Limit: Mohs 6
Mills specifically designed for producing superfine powders (e.g., 2500 mesh) often have a lower tolerance for extreme hardness. The XZM Ultrafine Grinding Mill is ideally suited for soft to medium-hard materials (Mohs ≤6) with low moisture. The intense fineness requirement means that grinding harder materials would lead to excessive wear and energy consumption.
Typical Hardness Limit: Mohs 4-5
Hammer Mills are primarily used for coarse grinding and crushing. They rely on impact from fast-moving hammers and are best suited for soft and brittle materials. Their application is generally limited to materials below Mohs 5, as harder substances cause rapid hammer wear and can pose a risk of sparking in certain environments.
Understanding the intrinsic hardness limits of each mill type is the first step in optimizing a grinding circuit. While Ball Mills offer the broadest hardness application range, modern Vertical Mills and advanced Trapezium Mills from manufacturers like Shanghai Zenith Machinery provide superior energy efficiency and integration for materials within their operational windows. The final selection must be a holistic decision, factoring in not just hardness but also required capacity, final product fineness, moisture content, and total cost of ownership. By partnering with an experienced manufacturer, operators can ensure they deploy the most effective technology to overcome the challenges posed by their specific material characteristics.
