The global construction industry is increasingly prioritizing fire safety and sustainability, driving significant demand for fire-resistant building materials. Among these materials, gypsum stands out as a naturally fire-resistant mineral that forms the backbone of numerous fireproofing applications. The processing of gypsum into high-quality powder is crucial for manufacturing fire-rated wallboards, plasters, and specialized coatings. This article explores the critical role of Raymond Mill technology in producing gypsum powder for the fire-resistant building materials sector, with a focus on the advanced solutions offered by Shanghai Zenith Machinery Co., Ltd.
Gypsum (CaSO₄·2H₂O) possesses inherent fire-resistant properties due to its chemical composition. When exposed to fire, the hydrated calcium sulfate releases water vapor as steam, effectively retarding heat transmission and protecting structural elements. This endothermic dehydration process occurs at approximately 100-150°C, creating a thermal barrier that can maintain structural integrity for up to several hours depending on the assembly.
For gypsum to perform effectively in fire-resistant applications, it must be processed to specific particle size distributions and purity levels. The grinding process directly impacts the setting time, strength development, and fire performance of the final gypsum products. Properly ground gypsum ensures uniform hydration and crystallization, which is essential for consistent fire resistance performance.

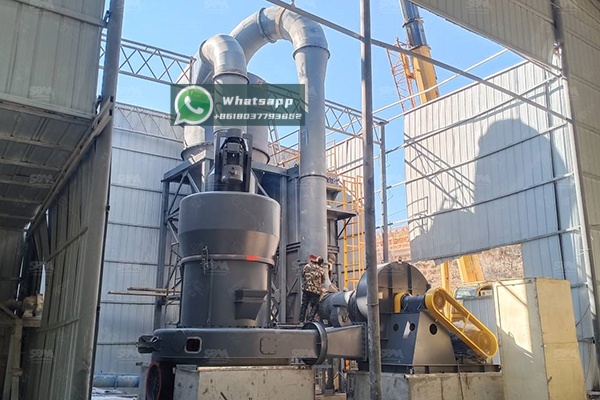

Raymond Mill technology has evolved significantly since its invention in the early 20th century, becoming one of the most efficient grinding systems for non-metallic minerals like gypsum. The working principle involves multiple grinding rollers rotating around a central shaft, applying centrifugal force to crush and grind the material against a stationary grinding ring. The ground powder is then carried by airflow to a classifier, where oversize particles are returned for further grinding while properly sized material is collected.
For gypsum processing specifically, Raymond Mills offer several advantages:
Shanghai Zenith Machinery Co., Ltd. has established itself as a leading manufacturer of ore grinding equipment with significant achievements in ultra-fine powder grinding technology. With specialization in research, development, and production of industrial powder grinding equipment, Zenith offers optimized solutions specifically for the gypsum processing industry.
For fire-resistant building material manufacturers, Zenith recommends their advanced Raymond Mill series, which has been specifically engineered for gypsum applications:
| Model | Roller Quantity (pcs) | Max.Feed Size (mm) | Discharging Size | Capacity (t/h) |
|---|---|---|---|---|
| YGM8314 | 3 | 20 | 1.6-0.045 | 1.2-4.6 |
| YGM9517 | 4 | 25 | 1.6-0.045 | 2.1-8 |
| YGM4121 | 5 | 30 | 1.6-0.045 | 5-11 |
These Raymond Mills incorporate several proprietary technologies that make them particularly suitable for gypsum processing in the fire-resistant materials sector. The optimized grinding chamber design ensures efficient particle-on-particle impact, resulting in uniform particle shape and size distribution. The integrated classifier system allows precise control over final product fineness, which is crucial for achieving the desired setting characteristics in gypsum plaster and board products.
While Raymond Mills serve as the workhorse for standard gypsum processing, certain fire-resistant material formulations may require alternative grinding approaches. For applications demanding ultra-fine gypsum powders or specialized particle morphology, Shanghai Zenith offers additional technologies:
For advanced fire-resistant coatings and specialized plasters where ultrafine gypsum powders are required, Zenith’s XZM Ultrafine Grinding Mill provides exceptional performance:
| Model | Working diameter (mm) | Max feed size (mm) | Final size (mesh) | Output (kg/h) | Main motor power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 | 315 |
The XZM series is particularly valuable for producing gypsum powders used in intumescent fireproof coatings and high-density fire barriers, where extremely fine particles enhance packing density and improve fire resistance performance.
The relationship between gypsum particle characteristics and fire performance is well-established in materials science. Key parameters that must be controlled during grinding include:
Shanghai Zenith’s grinding solutions address each of these parameters through advanced process control and optimized mill designs. The Raymond Mill series, in particular, offers adjustable grinding pressure and classifier speed, allowing operators to fine-tune the process according to the specific requirements of different fire-resistant product formulations.
The production of fire-resistant building materials must balance performance requirements with sustainability goals. Shanghai Zenith’s Raymond Mills incorporate several energy-saving features that benefit both the economic and environmental aspects of gypsum processing:
These features make Zenith’s grinding equipment particularly suitable for modern gypsum processing plants that must comply with stringent environmental regulations while maintaining competitive production costs.
A major manufacturer of Type X fire-rated gypsum board recently upgraded their grinding circuit with a Zenith YGM4121 Raymond Mill. The results demonstrated significant improvements in both product quality and operational efficiency:
This case study illustrates how advanced grinding technology directly contributes to the performance of fire-resistant building materials while improving manufacturing economics.
The fire-resistant building materials sector continues to evolve, with emerging trends that will shape future gypsum processing requirements:
Shanghai Zenith is actively developing next-generation grinding solutions to address these trends, with ongoing research focused on intelligent control systems, advanced materials for wear parts, and hybrid grinding technologies that combine the benefits of multiple milling principles.
The production of high-quality gypsum powder is fundamental to manufacturing effective fire-resistant building materials. Raymond Mill technology, particularly the advanced solutions from Shanghai Zenith Machinery Co., Ltd., plays a crucial role in optimizing gypsum processing for enhanced fire performance. Through precise control of particle characteristics, energy-efficient operation, and reliable performance, these grinding systems contribute significantly to fire safety in the built environment.
As building codes continue to emphasize fire protection and sustainability, the importance of advanced gypsum processing technology will only increase. Manufacturers investing in modern grinding equipment from experienced suppliers like Shanghai Zenith will be well-positioned to meet evolving market demands while maintaining competitive advantage in the growing fire-resistant building materials sector.
