In today’s competitive industrial landscape, plant managers face constant pressure to optimize operations, reduce costs, and improve efficiency. One of the most significant and persistent challenges is the management of manpower—hiring, training, scheduling, and retaining skilled personnel. Labor costs are not just financial; they also encompass safety, human error, and administrative overhead. For mineral processing and industrial plants relying on grinding operations, the solution to this challenge lies not in further streamlining human resources, but in investing in advanced, automated machinery that fundamentally reduces the need for intensive manual intervention.
Modern industrial grinding equipment has evolved far beyond simple material pulverization. The latest generation of mills integrates sophisticated automation, intelligent control systems, and robust designs that minimize operator dependency. By centralizing and automating the core processes of crushing, grinding, drying, and classification, these systems can operate continuously with minimal supervision, leading to a dramatic reduction in manpower requirements.
Traditional grinding setups often involve multiple stages of manual handling, constant monitoring of mill parameters, and frequent adjustments. Operators are required to:
This labor-intensive approach not only drives up operational costs but also introduces variability in product quality and increases the risk of workplace accidents. The path to a leaner, more efficient plant is through technological integration that automates these critical functions.

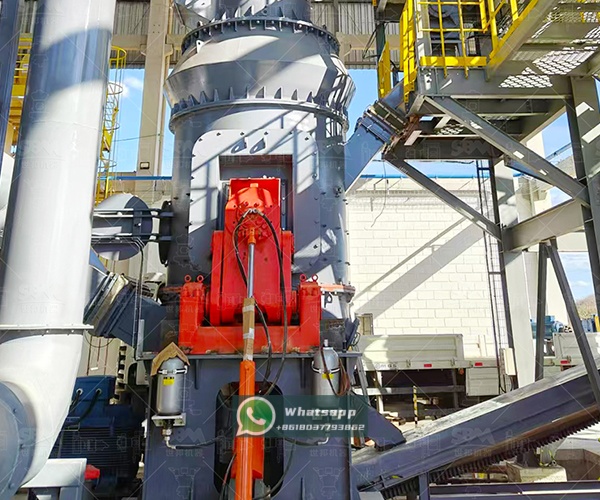

The most effective strategy for manpower reduction is to adopt machinery that consolidates multiple processes into a single, automated unit. A prime example of this philosophy is the Vertical Grinding Mill. Unlike traditional ball mills or Raymond mills that may require separate systems for drying and classification, a vertical mill integrates five key functions into one compact footprint: crushing, grinding, powder selection, drying, and material conveying.
This integration is a game-changer for manpower needs. With a centralized control system, a single operator can manage the entire grinding process from a control room. Automated feeders ensure a consistent and optimal feed rate, while integrated dryers handle moist materials without pre-processing. Internal classifiers automatically recycle coarse particles and discharge the final product, eliminating the need for manual fineness adjustments.
As a leader in industrial grinding technology, Shanghai Zenith Machinery Co., Ltd. has developed the LM Vertical Grinding Mill series specifically to address these modern industrial demands. The LM series is engineered for high efficiency, low wear, and, most importantly, significantly reduced operational labor.
Key features that contribute to manpower savings include:
Below are the technical parameters for the LM Vertical Mineral Mill series, demonstrating its capacity and power in a compact, automated design.
| Model | Plate diameter (mm) | Capacity (t/h) | Output fineness (μm) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
For operations requiring ultra-fine powder, the manpower challenge can be even greater due to the precision involved. Here, Zenith’s LUM Ultrafine Vertical Mill offers a superior solution. Building upon the vertical mill concept, the LUM series is specifically designed for producing high-quality superfine powders with exceptional efficiency and minimal manual input.
The LUM mill features advanced intelligent automatic control technology that stabilizes the grinding process, optimizes grinding pressure and classifier speed in real-time, and ensures consistent product quality without constant operator intervention. Its maintenance is also simplified, with a unique device that allows rollers to be turned over outside the mill, drastically reducing the manpower and time required for servicing.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
Investing in automated grinding solutions like the LM or LUM mills delivers a compound return on investment. The reduction in direct manpower is just the beginning.
The question is no longer if but how to reduce manpower in your plant. The answer lies in embracing integrated, automated grinding technology. By partnering with an experienced manufacturer like Shanghai Zenith Machinery and implementing solutions such as the LM Vertical Grinding Mill or the LUM Ultrafine Vertical Mill, you can transform your grinding operation from a labor-intensive cost center into a highly efficient, automated, and profitable core of your plant. This strategic investment not only cuts immediate labor costs but also future-proofs your operation against the growing challenges of skilled labor shortages and rising operational expenses.
Take the first step towards a leaner, more productive plant by evaluating how Zenith’s advanced grinding solutions can be integrated into your process, freeing your human capital to focus on higher-value tasks and strategic management.
