In recent years, Iraq has been taking significant steps to diversify its industrial base and improve the utilization of its abundant natural resources. Among these, limestone stands out as one of the most widely available mineral resources in the country. Known for its high calcium carbonate content, limestone plays an essential role in industries such as cement, glass, and metallurgy. In particular, the glass manufacturing sector in Iraq is showing increasing demand for high-purity, finely ground limestone powder with a targeted fineness of around 80 mesh. This grade of limestone powder is crucial for improving the quality, clarity, and stability of glass products. To meet these growing industrial needs efficiently, the selection of an appropriate grinding mill becomes vital.
High-quality glass requires raw materials with consistent composition and particle size distribution. Limestone is an important fluxing material used to reduce the melting temperature of silica sand during glass manufacturing. When milled to around 80 mesh fineness, it improves reaction kinetics in the furnace, enhances transparency, and minimizes imperfections such as bubbles or streaks. Without proper grinding, the limestone particles can remain coarse and lead to uneven melting, thereby compromising the final product quality.
Therefore, the selection of a reliable limestone grinding mill not only affects production efficiency but also directly determines the physical and optical qualities of the glass. In the context of Iraq’s emerging glass industry, deploying advanced milling technology is key to achieving both economic and technical competitiveness.
Shanghai Zenith Machinery Co., Ltd. has earned a strong reputation as one of China’s leading manufacturers of industrial ore grinding equipment. With decades of experience in the research, development, and production of powder-making machines, Zenith has consistently delivered innovative and energy-efficient grinding solutions to global customers. The company’s product range includes multiple series such as the MTW Trapezium Grinding Mill, MTM Medium-Speed Grinding Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, and XZM Ultrafine Grinding Mill, among others. These models are designed to handle different levels of fineness and production capacity, making them suitable for diverse applications like glass, cement, metallurgy, and chemical industries.
In Iraq’s glass production sector, limestone needs to be ground to approximately 80 mesh (about 180 microns). The ideal mill should ensure stable operation, low energy consumption, minimal maintenance, and the ability to process large volumes of raw limestone efficiently. Furthermore, it should provide consistent particle distribution and dust-free operation to comply with environmental standards. Since Iraq has a hot and dry climate, the selected equipment should also handle materials with moderate moisture content and support continuous, stable production even under challenging environmental conditions.

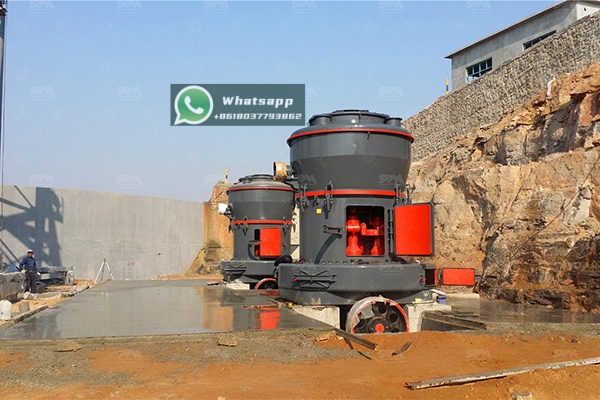

For limestone grinding to 80 mesh for glass making, we recommend the MTW Trapezium Grinding Mill developed by Shanghai Zenith Machinery Co., Ltd. This equipment combines advanced European grinding technology with Zenith’s engineering expertise to deliver outstanding performance. The MTW series is designed with a bevel gear overall drive, internal thin oil lubrication system, and curved air channel, which contribute to smooth transmission, reduced energy loss, and improved powder classification efficiency.
| Model | Max. Feed Size (mm) | Final size (mm) | Capacity (t/h) | Main motor (kW) | Fan motor (kW) |
|---|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 | 110 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 | 200 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 | 315 |
The MTW138Z and MTW175G models are particularly suited for medium to large-scale limestone grinding plants in Iraq, offering high throughput and stable operation. They can efficiently produce limestone powder at 80 mesh to meet glass production specifications.

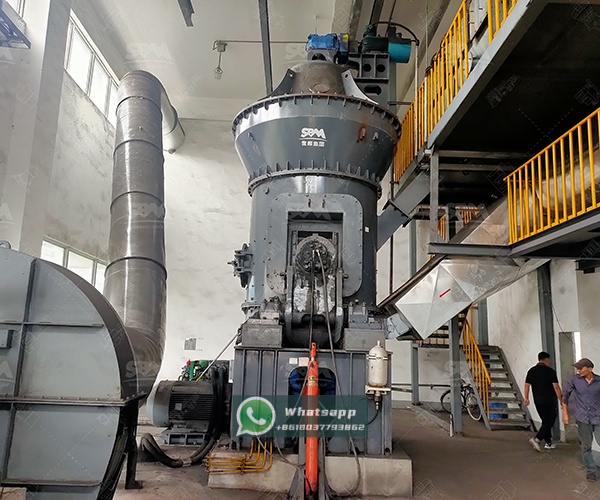

For customers who prefer integrated systems that combine crushing, grinding, drying, and classification in one unit, the LM Vertical Grinding Mill from Zenith is another outstanding option. This model provides high drying capability, which is beneficial for processing limestone with residual moisture. The LM mill also features a simple layout and lower operational cost, making it suitable for plants seeking long-term sustainability and energy savings.
| Model | Plate diameter (mm) | Capacity (t/h) | Output fineness (μm) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170–40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170–40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170–45 | <50 | 1250 |
The LM190K model provides an ideal balance between efficiency and flexibility, meeting a wide range of limestone grinding requirements for glass manufacturing enterprises in Iraq. Its vertical structure minimizes floor area and streamlines material flow, reducing energy loss and maintenance cost.
By implementing the MTW Trapezium Grinding Mill or LM Vertical Grinding Mill in limestone processing plants, glass manufacturers in Iraq can achieve the following key advantages:
As Iraq continues to expand its industrial manufacturing capacity, efficient and reliable limestone grinding technology will play a vital role in supporting the local glass industry. The demand for high-quality, 80 mesh limestone powder can be effectively met by adopting advanced machines like the MTW Trapezium Grinding Mill or the LM Vertical Grinding Mill from Shanghai Zenith Machinery Co., Ltd. These equipment models offer superior performance, easy operation, and sustainable production, ensuring that glass manufacturers in Iraq can remain competitive in both domestic and regional markets. By integrating state-of-the-art grinding solutions, Iraq’s glass producers can expect improved product quality, lower costs, and stronger business growth in the coming years.
Shanghai Zenith Machinery Co., Ltd. continues to serve as a reliable partner to global industries in their journey toward modern, efficient, and environmentally responsible production.
