The vertical mill has become a cornerstone of modern industrial grinding operations, offering superior efficiency and compact design compared to traditional ball mills. At the heart of every vertical mill lies a critical component: the main reducer gearbox. This sophisticated piece of engineering is responsible for transmitting power from the motor to the grinding table, converting high-speed, low-torque input into the low-speed, high-torque output required for effective material comminution. Understanding its design, operation, and maintenance is crucial for optimizing mill performance and ensuring operational reliability.
The main reducer gearbox in a vertical mill serves as the primary power transmission system. Its fundamental purpose is to reduce the rotational speed from the electric motor (typically operating at 980-1500 rpm) to the optimal grinding table speed (usually between 20-60 rpm, depending on the mill size and application). This speed reduction is accompanied by a proportional increase in torque, enabling the grinding rollers to exert tremendous pressure on the material bed.
Modern vertical mill gearboxes typically employ planetary gear systems due to their exceptional power density and torque transmission capabilities. The planetary configuration distributes the load across multiple gear meshes simultaneously, resulting in a more compact design with higher efficiency compared to traditional parallel shaft gear arrangements. The gearbox must withstand not only the continuous grinding forces but also shock loads from irregular feed materials and potential mill vibrations.
Designing a reliable main reducer for vertical mills presents several engineering challenges that must be carefully addressed:
The gearbox must withstand extreme mechanical stresses from grinding operations. Gear teeth are subjected to cyclic loading that can lead to pitting, bending fatigue, and ultimately tooth failure if not properly designed. Modern gear design incorporates advanced calculation methods according to ISO 6336 or AGMA standards, considering factors such as service factor, application factor, and dynamic load capacity.
Power losses within the gearbox generate significant heat that must be effectively dissipated to prevent overheating and lubricant degradation. Large vertical mill gearboxes often incorporate integrated cooling systems, including internal oil passages, external heat exchangers, and sometimes even water-cooling jackets for the gearbox housing.
A reliable lubrication system is vital for gear and bearing longevity. Modern systems typically include main and standby oil pumps, filtration units, temperature and pressure monitoring, and sometimes separate spray lubrication for the girth gear. The lubricant must maintain its properties under high pressure and temperature conditions while providing adequate protection against wear and micropitting.
Proper alignment between the motor, gearbox, and grinding table is critical to prevent premature bearing failure and gear wear. The foundation must provide sufficient stiffness to minimize deflection under load while allowing for thermal expansion during operation.
The performance of the main reducer gearbox is intrinsically linked to the overall grinding system efficiency. Modern vertical mills from leading manufacturers like Shanghai Zenith Machinery Co., Ltd. are designed with integrated systems where the gearbox specifications are carefully matched to the mill’s operational parameters.
Shanghai Zenith Machinery Co., Ltd., as an excellent manufacturer of ore grinding equipment, has made significant achievements in the field of ultra-fine powder grinding. Their extensive research and development in industrial powder grinding equipment has resulted in optimized gearbox designs that enhance overall mill performance.
For operations requiring high-capacity grinding with precise particle size control, Zenith’s LM Vertical Grinding Mill series represents an excellent solution. These mills integrate five functions—crushing, grinding, powder selection, drying, and material conveying—into a single machine while maintaining exceptional reliability through their robust gearbox design.
| Model | Plate diameter (mm) | Capacity (t/h) | Output fineness (μm) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |

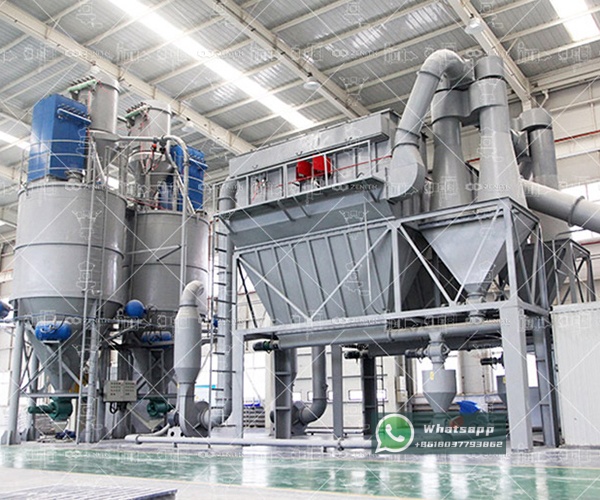

For applications demanding ultra-fine grinding capabilities, Zenith’s LUM Ultrafine Vertical Mill offers advanced performance with intelligent control systems. This mill integrates grinding, drying, classifying, and transportation functions while occupying minimal space, making it ideal for operations with footprint constraints.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
Proper maintenance of the main reducer gearbox is essential for maximizing service life and preventing unexpected downtime. Key maintenance practices include:
Implementing a comprehensive oil analysis program helps detect early signs of component wear, lubricant degradation, or contamination. Regular sampling and laboratory analysis can identify increasing metal particle concentrations, water ingress, or additive depletion before they lead to catastrophic failure.
Continuous vibration monitoring provides valuable insights into the mechanical condition of gears and bearings. Advanced systems can detect developing faults such as tooth pitting, bearing spalling, or misalignment long before they become critical.
Monitoring gearbox temperatures at multiple points (bearing locations, oil sump, cooling system) helps identify developing problems such as inadequate lubrication, overload conditions, or cooling system malfunctions.
Regular alignment verification ensures that the gearbox operates within its design parameters, preventing premature wear and excessive vibration. Laser alignment systems provide the accuracy required for large vertical mill installations.
The evolution of vertical mill gearbox technology continues with several emerging trends:
Integration of IoT sensors and cloud-based analytics enables predictive maintenance strategies, reducing unplanned downtime and optimizing maintenance schedules. Advanced algorithms can process multiple data streams (vibration, temperature, oil quality, performance parameters) to provide early warning of developing issues.
New gear materials with improved fatigue strength and advanced surface treatments such as superfinishing, nitriding, and diamond-like carbon coatings are extending gear life and increasing power density.
Some manufacturers are developing integrated motor-gearbox units that eliminate alignment issues and reduce overall footprint. These designs often incorporate permanent magnet motors for higher efficiency and better controllability.
The main reducer gearbox is undoubtedly the heart of the vertical grinding mill, determining not only the machine’s reliability but also its operational efficiency and economic performance. Proper selection, operation, and maintenance of this critical component are essential for achieving optimal grinding performance and minimizing total cost of ownership.
As grinding technology continues to evolve, gearbox designs will become increasingly sophisticated, incorporating advanced materials, digital monitoring capabilities, and improved efficiency. Manufacturers like Shanghai Zenith Machinery Co., Ltd. continue to lead this evolution with innovative designs that push the boundaries of grinding technology while maintaining the reliability that industrial operations depend on.
When selecting equipment for new projects or upgrades, considering the gearbox design and its integration with the overall grinding system should be a primary focus. The technical parameters and design features of Zenith’s grinding mills demonstrate how proper engineering of this critical component contributes to overall system performance and reliability.
