In today’s competitive industrial landscape, the efficient processing of industrial by-products like slag has become increasingly important for both economic and environmental reasons. Slag, a by-product from steel production, possesses excellent cementitious properties when finely ground, making it a valuable component in cement and concrete production. Establishing a 50-ton-per-hour (TPH) slag grinding facility requires careful planning, robust equipment selection, and comprehensive technical support to ensure optimal performance and return on investment.
Granulated blast furnace slag (GBFS) has emerged as a crucial supplementary cementitious material in the construction industry. When properly ground to appropriate fineness, slag significantly enhances the durability, workability, and long-term strength of concrete while reducing the carbon footprint of cement production. A 50 TPH grinding facility represents a substantial operation capable of processing approximately 360,000 tons of slag annually, assuming 80% operational efficiency. This scale of operation demands equipment that combines high throughput with energy efficiency and reliability.
Designing an efficient slag grinding system requires addressing several critical factors. The abrasive nature of slag demands equipment with exceptional wear resistance, while the requirement for specific surface areas typically between 400-500 m²/kg necessitates precise grinding control. Additionally, moisture content management, dust collection efficiency, and energy consumption optimization are paramount concerns that directly impact operational costs and environmental compliance.
The grinding circuit must be designed to handle variations in feed material characteristics while maintaining consistent product quality. This requires not only the right grinding equipment but also appropriate ancillary systems for material handling, drying, classification, and dust collection. A truly turnkey solution integrates all these components into a cohesive, automated system that minimizes operational complexity while maximizing productivity.

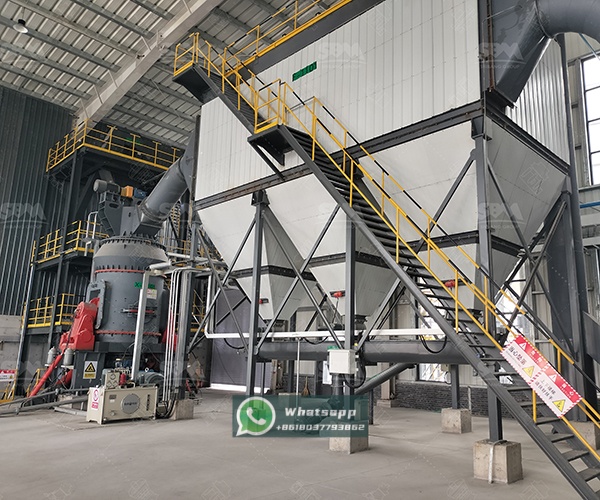

For a 50 TPH slag grinding application, Shanghai Zenith Machinery recommends its LM Vertical Grinding Mill series, specifically the LM Vertical Slag Mill models. These mills represent the pinnacle of grinding technology, specifically engineered for challenging materials like slag. The vertical mill design integrates multiple processes—crushing, grinding, drying, classification, and conveyance—into a single compact unit, offering significant advantages in space utilization and energy efficiency.

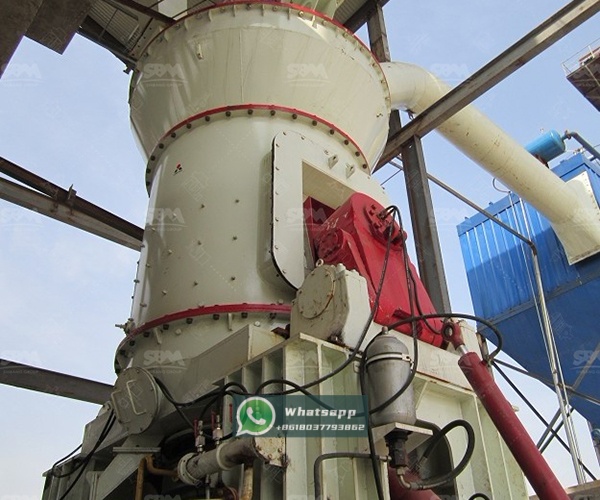

The LM Vertical Grinding Mill operates on the principle of bed comminution, where material is ground between a rotating table and stationary rollers. This mechanism is particularly efficient for slag grinding, as it applies pressure rather than impact, resulting in lower wear rates and more controlled particle size distribution. The integrated drying capability allows the mill to handle materials with moisture content up to 15-20%, eliminating the need for separate drying equipment in many cases.
| Model | Capacity (t/h) | Main Motor (kW) | Specific Surface Area (m²/kg) | Moisture Content of Feed |
|---|---|---|---|---|
| LM130N | 4-6 | 200-250 | 400-450 | ≤15% |
| LM220N | 20-26 | 900-1000 | 400-450 | ≤15% |
| LM370N | 90-110 | 3150-3300 | 400-450 | ≤15% |
For a 50 TPH facility, the LM370N model represents an ideal solution, offering capacity headroom while maintaining energy efficiency. With a main motor power of 3150-3300 kW and the ability to produce slag cement with specific surface areas of 400-450 m²/kg, this mill delivers the performance required for modern slag grinding operations.
For operations requiring slightly lower capacity or those with space constraints, Shanghai Zenith’s MTW Trapezium Grinding Mill presents an excellent alternative. The MTW series incorporates multiple patented technologies that enhance grinding efficiency, reduce energy consumption, and improve operational reliability.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) |
|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 |
For a 50 TPH facility, multiple MTW215G units could be deployed in parallel to achieve the required capacity. This approach offers operational flexibility, as individual mills can be taken offline for maintenance without completely shutting down production. The trapezium grinding mechanism provides excellent particle size distribution control, making it suitable for producing high-quality slag powder for various applications.
A successful 50 TPH slag grinding facility extends beyond the grinding mill itself. Shanghai Zenith provides complete turnkey solutions that encompass the entire production chain, from raw material intake to finished product storage and dispatch. Key system components include:
Modern slag grinding facilities must address both economic and environmental imperatives. The LM Vertical Grinding Mill offers significant advantages in both areas. Compared to traditional ball mills, vertical mills typically reduce energy consumption by 30-50% for the same output, representing substantial operational cost savings. Additionally, the enclosed design minimizes dust emissions, while the ability to utilize waste gases for drying further enhances the environmental profile of the operation.
The grinding system can be designed to utilize various heat sources for drying, including waste heat from adjacent processes, further improving overall energy efficiency. Advanced control systems optimize the grinding process in real-time, adjusting parameters to maintain product quality while minimizing specific energy consumption.
Downtime in a 50 TPH slag grinding facility represents significant lost production and revenue. Shanghai Zenith’s grinding equipment is engineered for reliability, with robust construction and wear-resistant materials in critical components. The design facilitates maintenance access, with features such as hydraulic systems for roller replacement in vertical mills, reducing maintenance time and requirements for specialized equipment.
Preventive maintenance programs, supported by remote monitoring capabilities, help identify potential issues before they lead to unplanned downtime. Comprehensive training and technical support ensure that plant personnel can operate and maintain the equipment effectively, maximizing equipment availability and service life.
Establishing a 50 TPH slag grinding facility represents a significant capital investment, but one with attractive returns when properly executed. The value-added transformation of low-cost slag into high-value cementitious material creates substantial margin opportunities. Key economic considerations include:
As an excellent manufacturer of ore grinding equipment in China, Shanghai Zenith Machinery Co., Ltd. has made great achievements in the field of ultra-fine powder grinding. Our specialization in the research, development, and production of industrial powder grinding equipment positions us uniquely to deliver comprehensive solutions for slag grinding applications. With decades of experience and numerous successful installations worldwide, we bring both technical expertise and practical operational knowledge to every project.
Our commitment extends beyond equipment supply to include comprehensive project management, installation supervision, commissioning support, and ongoing technical service. This holistic approach ensures that each 50 TPH slag grinding facility we deliver meets performance expectations and provides long-term value to our clients.
Establishing a 50 TPH slag grinding facility represents a strategic investment in sustainable construction materials production. By selecting appropriate grinding technology, such as Shanghai Zenith’s LM Vertical Grinding Mill or MTW Trapezium Grinding Mill, and implementing a comprehensive turnkey solution, operators can achieve efficient, reliable, and profitable slag processing. The combination of advanced equipment, integrated system design, and professional support creates a foundation for long-term success in the growing market for supplementary cementitious materials.
As environmental regulations tighten and the construction industry increasingly prioritizes sustainable materials, the demand for high-quality ground slag will continue to grow. Investing in a modern, efficient grinding facility positions operators to capitalize on this trend while contributing to circular economy principles through the valorization of industrial by-products.
