A Vertical Mill For Fly Ash Grinding In The Concrete Industry

A Vertical Mill For Fly Ash Grinding In The Concrete Industry

The concrete industry is perpetually evolving, driven by the dual demands of enhanced performance and environmental sustainability. A key component in this evolution is the utilization of supplementary cementitious materials (SCMs), with fly ash being one of the most prominent. As a by-product of coal combustion in thermal power plants, fly ash offers a way to reduce the clinker factor in concrete, thereby lowering its carbon footprint and improving long-term durability. However, the full potential of fly ash is often unlocked only after it undergoes a process of fine grinding. This is where advanced vertical grinding mill technology becomes indispensable.

The Role of Fly Ash in Modern Concrete

Fly ash, when used in its raw form, can improve the workability and long-term strength of concrete. However, its reactivity is limited by the particle size. Coarse fly ash particles are largely inert and act merely as fine aggregates. Grinding fly ash to a finer consistency dramatically increases its specific surface area, exposing more glassy silicate spheres to the hydration process. This enhanced pozzolanic reaction leads to:

• Higher early and ultimate compressive strengths.
• Reduced permeability, resulting in more durable concrete resistant to chloride ingress and sulfate attack.
• A more homogeneous mixture and reduced water demand.
• The ability to utilize higher percentages of fly ash as a cement replacement without compromising performance.

Why Vertical Mills are Ideal for Fly Ash Grinding

While several grinding technologies exist, the vertical roller mill (VRM) has emerged as the preferred solution for processing fly ash. Its design philosophy aligns perfectly with the requirements of this application. Unlike traditional ball mills, a vertical mill integrates multiple processes—drying, grinding, classification, and material conveyance—into a single, compact unit. This integrated approach offers several distinct advantages for fly ash grinding:

• High Grinding Efficiency: The material is ground between the rollers and the rotating table under external pressure. This direct application of force is far more efficient than the impact and attrition methods of a ball mill, leading to significantly lower energy consumption per ton of product.
• Excellent Drying Capability: Fly ash can sometimes have elevated moisture content. Hot gas can be introduced directly into the mill housing, simultaneously drying and grinding the material, eliminating the need for a separate dryer.
• Precise Particle Size Control: An internal dynamic classifier integrated at the top of the mill allows for instantaneous adjustment of the product fineness by changing the rotor speed. This ensures a consistent and narrowly sized product, which is crucial for optimal concrete performance.
• Small Footprint and Low Noise: The vertical design occupies much less space than a horizontal ball mill plant of equivalent capacity. Its operation is also notably quieter.

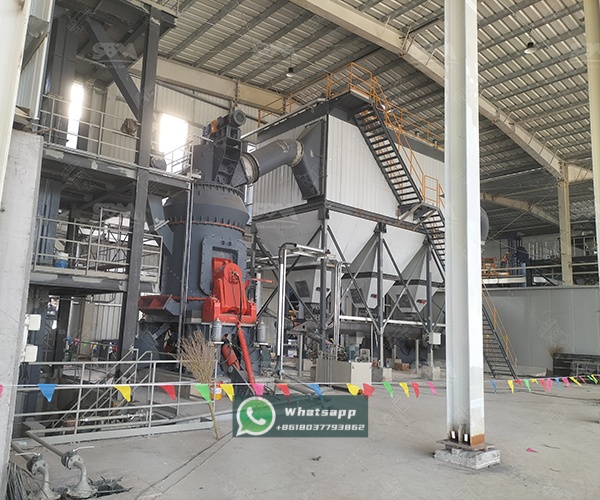

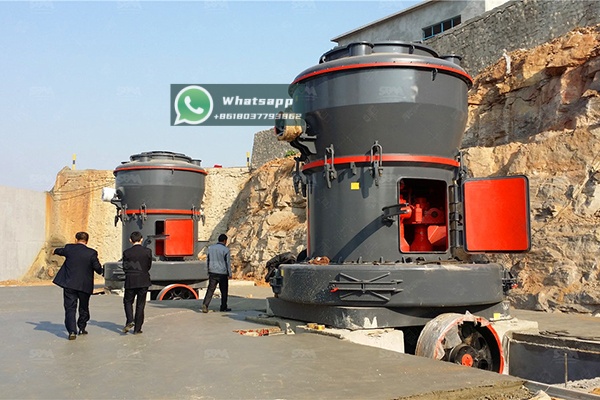

Introducing the Ideal Solution: Zenith’s LM Vertical Grinding Mill

Selecting the right equipment is paramount to achieving the desired product quality and operational economics. Shanghai Zenith Machinery Co., Ltd., an excellent manufacturer of ore and industrial grinding equipment, has made great achievements in the field of ultra-fine powder grinding. Our LM Vertical Grinding Mill series is specifically engineered to meet the rigorous demands of processing materials like fly ash.

The LM Vertical Mill integrates five functions—crushing, grinding, powder selection, drying, and material conveying—into a single machine. For fly ash application, the LM Vertical Slag Mill series is particularly relevant, as slag and fly ash share similar grinding characteristics. A model like the LM220N offers an excellent balance of capacity and efficiency.

Key Technical Parameters for the LM220N (Vertical Slag Mill Series):

• Capacity: 20-26 t/h
• Main Motor Power: 900-1000 kW
• Output Fineness: 4200-4500 cm²/g (Blaine)

This mill is designed to handle the abrasive nature of fly ash efficiently, ensuring high availability and low wear part consumption. Its intelligent control system allows for easy operation and maintenance, ensuring a stable product quality that is essential for concrete batching plants.

Beyond Standard Grinding: The LUM Ultrafine Vertical Mill

For projects requiring even higher levels of fineness to unlock ultra-high performance in specialty concrete mixes, Zenith offers the LUM Ultrafine Vertical Mill. This mill represents the cutting edge of grinding technology, designed to produce products with a high content of end-fines.

Key Technical Parameters for the LUM1632:

• Main Machine Power: 280-315 kW
• Capacity: 2.0-13.5 t/h (varies with fineness)
• Size Distribution: D97 of 5-30 μm (approx. 500-2500 mesh)

The LUM series features advanced grinding roller technology and a highly efficient classifier, making it possible to achieve ultrafine fly ash that can significantly accelerate hydration and create extremely dense concrete matrices.

Operational Benefits and Economic Impact

Investing in a Zenith LM or LUM Vertical Mill for fly ash grinding translates into direct operational and economic benefits for concrete producers:

• Reduced Energy Consumption: Vertical mills can consume 30-50% less energy than traditional ball mills for the same duty, drastically reducing operating costs.
• Increased Concrete Performance: The consistent, high-quality ground fly ash allows for the production of higher-grade, more durable concrete, opening up new market opportunities.
• Waste Utilization and Sustainability: This process transforms an industrial by-product into a valuable resource, contributing to a circular economy and enabling the production of greener concrete with a lower embodied carbon content.
• Lower Total Cost of Ownership: While the initial investment might be comparable, the savings in energy, maintenance, and space lead to a superior return on investment over the equipment’s lifecycle.

Conclusion

The grinding of fly ash is no longer a niche process but a critical step for forward-thinking concrete producers aiming for sustainability, performance, and cost-effectiveness. Vertical roller mill technology, exemplified by Shanghai Zenith’s robust and efficient LM Vertical Grinding Mill and advanced LUM Ultrafine Vertical Mill, provides the ideal technical solution. By ensuring a controlled, fine, and reactive fly ash product, these mills empower the concrete industry to build stronger, more durable, and more environmentally friendly structures for the future.

For more information on how our grinding solutions can optimize your fly ash processing and concrete production, please contact our technical team at Shanghai Zenith Machinery Co., Ltd.
