The global energy and cement industries are continuously seeking efficient and cost-effective solutions for fuel preparation and raw material processing. Petroleum coke (petcoke), a carbonaceous solid derived from oil refinery coker units or other cracking processes, has emerged as a prominent alternative fuel due to its high calorific value and relatively low cost. However, its efficient utilization hinges on effective grinding to achieve the desired fineness for combustion or as a raw material additive. This is where vertical grinding mills, with their superior efficiency and integrated processing capabilities, play a pivotal role.
Petroleum coke is not a straightforward material to process. Its properties can vary significantly depending on the source crude oil and the coking process, but it often presents challenges such as high hardness, abrasiveness, and variable moisture content. Traditional grinding systems like ball mills can be inefficient for such applications, consuming excessive energy and requiring significant maintenance due to wear. Furthermore, the need for pre-drying in separate units adds to the operational complexity and cost. The ideal grinding solution must, therefore, integrate drying and grinding, handle abrasive materials robustly, and offer high grinding efficiency with low energy consumption per ton of product.

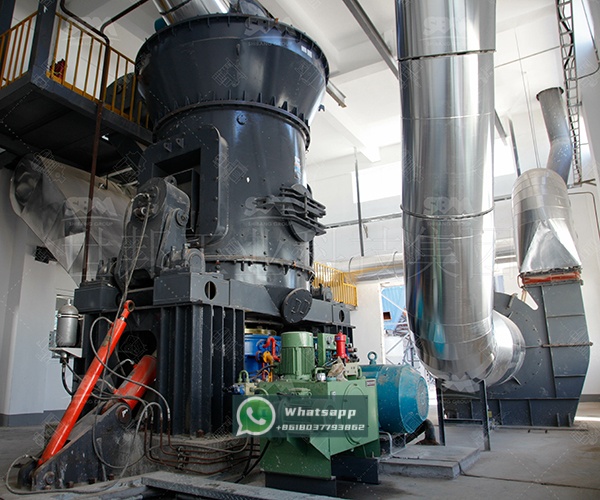

Vertical Roller Mills (VRMs) have revolutionized the comminution process in the cement and minerals industries. Their design principle is inherently suited to the challenges posed by petcoke. Unlike ball mills where grinding is achieved by impact and attrition as the media tumble, a VRM utilizes rollers to press and shear the material against a rotating grinding table. This mechanism is far more energy-efficient.
The key advantages of using a vertical mill for petcoke grinding include:
In the field of industrial grinding, Shanghai Zenith Machinery Co., Ltd. has established itself as an excellent manufacturer of ore grinding equipment, with significant achievements in ultra-fine powder grinding. Specializing in the research, development, and production of advanced grinding mills, Zenith offers robust and technologically advanced solutions tailored for demanding applications like petcoke processing.

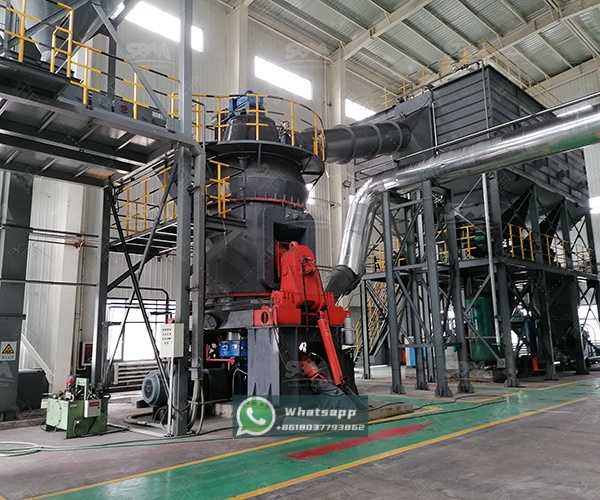

For petcoke grinding in the energy and cement sectors, the LM Vertical Grinding Mill from Zenith is an exemplary choice. This mill series is engineered to integrate five functions—crushing, grinding, powder selection, drying, and material conveying—into a single, cohesive machine. Its robust construction is designed to handle abrasive materials, while its efficient grinding principle ensures low operational costs.
The LM Vertical Mill is particularly adept at processing solid fuels like petcoke. The integrated drying system can handle hot gases from a preheater or a dedicated hot gas generator, effectively removing moisture during the grinding process. The product fineness can be precisely controlled to meet the specific requirements of the kiln or calciner, typically in the range of 5-15% residue on 90 microns.
Below are the technical parameters for the Vertical Coal Mill series, which is directly applicable to petcoke grinding due to the similar nature of the materials:
Model | Plate Diameter (mm) | Capacity (t/h) | Max Feed Size (mm) | Main Motor (kW) |
---|---|---|---|---|
LM130M | 1300 | 10-17 | <38 | 185 |
LM220M | 2200 | 35-50 | <50 | 500 |
LM280M | 2800 | 60-90 | <50 | 900 |
For applications requiring an even finer product or dealing with particularly hard grades of petcoke, Zenith offers the LUM Ultrafine Vertical Mill. This mill represents the pinnacle of Zenith’s grinding technology, featuring a more advanced roller and classifier design. It is ideal for producing high-value, ultra-fine powders and offers enhanced control over particle size distribution.
The LUM series integrates ultra-fine grinding, drying, classification, and transportation with minimal space requirements. Its intelligent control system allows for easier operation and maintenance, making it a future-proof investment for modern plants. Key technical data for the LUM series is provided below:
Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
---|---|---|---|
LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
LUM1836 | 355-400 | 2.3-15 | 5-30 |
The adoption of a Zenith LM or LUM Vertical Mill for petcoke grinding translates into direct and substantial operational benefits. The most significant is the reduction in power consumption, which constitutes a major portion of the operating cost. The lower wear rate of grinding components, compared to a ball mill, leads to reduced maintenance downtime and lower consumption of spare parts. The ability to use waste heat from the plant for drying further enhances the overall energy balance of the operation, contributing to a lower carbon footprint. For a cement plant, reliably grinding petcoke to the correct fineness ensures stable kiln operation, improved clinker quality, and maximized substitution of expensive primary fuels like coal.
As the energy and cement sectors continue to prioritize efficiency, cost reduction, and environmental stewardship, the role of advanced grinding technology becomes increasingly critical. The vertical roller mill stands out as the most competent technology for processing challenging materials like petroleum coke. Shanghai Zenith Machinery, with its proven expertise and comprehensive product range—from the robust LM Vertical Grinding Mill to the advanced LUM Ultrafine Vertical Mill—provides reliable, efficient, and economically viable solutions. Investing in such technology is not merely an equipment purchase but a strategic move towards sustainable and profitable plant operation.
