The utilization of industrial by-products in construction materials has become a cornerstone of sustainable development in the modern building industry. Among these materials, ground granulated blast-furnace slag (GGBFS) stands out as a highly effective supplementary cementitious material (SCM) for producing high-strength and high-performance concrete. The key to unlocking the full potential of slag lies in the efficiency and precision of the grinding process. This article explores the critical role of vertical grinding mills in processing slag for high-strength concrete applications, highlighting the technological advancements that make this possible.
Granulated blast-furnace slag is a glassy granular material formed when molten blast furnace slag is rapidly chilled by quenching in water. In its raw form, slag possesses latent hydraulic properties, meaning it requires activation—typically by Portland cement—to develop cementitious characteristics. When finely ground, GGBFS reacts with the calcium hydroxide produced during cement hydration to form additional calcium silicate hydrate (C-S-H), the primary strength-giving compound in concrete.
The benefits of incorporating GGBFS into concrete mixtures are substantial:
The performance of GGBFS in concrete is highly dependent on its fineness. The grinding process must achieve a specific particle size distribution that optimizes both reactivity and water demand. Traditional ball mills, while capable of grinding slag, are often energy-intensive and offer limited control over particle morphology. This is where advanced vertical grinding technology provides a superior solution.

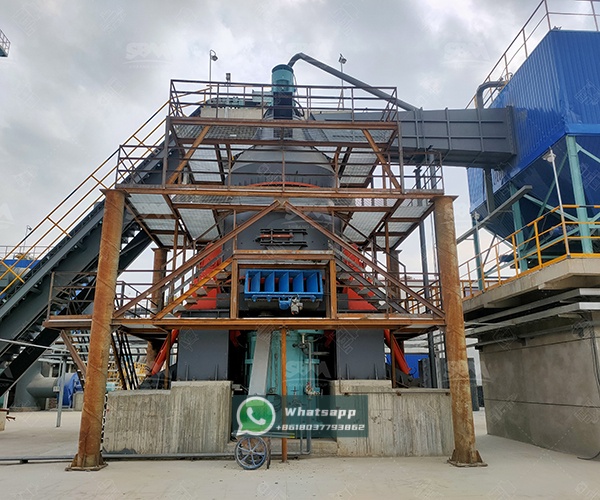

Vertical roller mills (VRMs) are specifically designed for grinding abrasive and hard materials like slag. Their unique grinding principle, which involves a bed of material being compressed between a rotating grinding table and rollers, offers several distinct advantages for slag processing.
Vertical mills have revolutionized the grinding of cementitious materials. For slag applications, their benefits are particularly pronounced:
Shanghai Zenith Machinery Co., Ltd., with its extensive experience in industrial powder grinding equipment, has developed the LM Vertical Grinding Mill series specifically to meet the demanding requirements of slag processing. The LM Vertical Mill integrates five functions—crushing, grinding, powder selection, drying, and material conveying—into a single, highly efficient unit.
For slag grinding applications, Zenith offers specialized models within the LM series that feature enhanced wear protection, optimized grinding geometry, and sophisticated classification systems. The LM Vertical Slag Mill Series is particularly noteworthy for its robust construction and high grinding efficiency.
The following table presents the technical parameters of Zenith’s Vertical Slag Mill series, demonstrating its capacity range for various production needs:
| Model | Capacity (t/h) | Main Motor (kW) |
|---|---|---|
| LM130N | 4-6 | 200-250 |
| LM220N | 20-26 | 900-1000 |
| LM370N | 90-110 | 3150-3300 |
These mills are designed with several proprietary features that make them ideal for slag grinding:
The relationship between slag fineness and concrete performance is not linear. While finer grinding increases reactivity, it also increases water demand and may lead to higher shrinkage. Therefore, the grinding process must be optimized to achieve the ideal balance. Zenith’s LM Vertical Mills offer the flexibility to precisely control key parameters:
For high-strength concrete applications, the target fineness for GGBFS typically ranges from 400 to 600 m²/kg (Blaine). At this fineness, the slag provides an excellent balance between early-age reactivity and long-term strength development. The narrow particle size distribution achieved by vertical mills further enhances the packing density of the cementitious system, contributing to the low permeability that characterizes high-performance concrete.

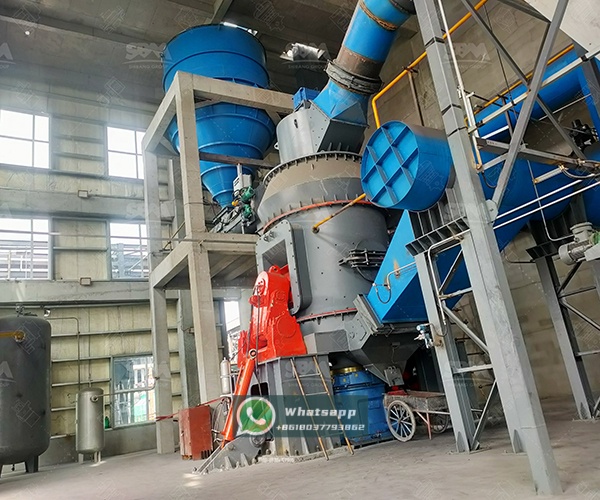

A recent installation of an LM220N Vertical Slag Mill at a steel plant’s slag processing facility demonstrates the practical benefits of this technology. The mill processes granulated slag with approximately 10% moisture content, producing GGBFS with a consistent Blaine fineness of 450 m²/kg. Key performance metrics include:
The GGBFS produced by this mill is used in ready-mix concrete for high-rise buildings and infrastructure projects, where its contribution to durability and sustainability is highly valued.
While the LM Vertical Mill series is particularly well-suited for slag grinding, Shanghai Zenith offers a comprehensive portfolio of grinding equipment to meet diverse operational requirements. For applications requiring even finer products or specialized material characteristics, the LUM Ultrafine Vertical Mill presents an advanced solution.
The LUM series represents the cutting edge of vertical grinding technology, featuring innovative roller design and classification systems capable of producing products with D97 fineness as fine as 5 microns. This mill is ideal for producing ultra-fine slag powders for specialized applications where maximum reactivity is required.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The production of high-quality ground granulated blast-furnace slag is essential for meeting the growing demand for sustainable, high-performance concrete. Vertical roller mills have emerged as the technology of choice for this application, offering unparalleled energy efficiency, product quality control, and operational reliability.
Shanghai Zenith Machinery’s LM Vertical Grinding Mill series, particularly the specialized slag mill models, embodies the technological advancements necessary to optimize slag grinding for concrete applications. With their robust design, intelligent control systems, and proven performance in industrial applications, these mills represent a sound investment for producers seeking to enhance their product quality while reducing operational costs and environmental impact.
As the construction industry continues to prioritize sustainability and performance, the role of efficiently processed slag will only grow in importance. Partnering with experienced equipment manufacturers like Shanghai Zenith ensures access to the grinding technology needed to succeed in this evolving market.
