Algeria is expanding its industrial base, and the rubber manufacturing sector is one of the most dynamic industries in the country. Products such as tires, hoses, conveyor belts, seals, and various molded rubber components require high-quality fillers to reinforce the polymer matrix and reduce material costs. Basalt, a hard and abundant volcanic rock found in several regions of Algeria, is gaining attention as a functional mineral filler. When processed to 600 mesh, basalt powder offers excellent hardness, chemical stability, and thermal resistance, making it suitable for demanding rubber applications. To achieve this fine and consistent powder, an efficient basalt grinding mill is essential.
Producing 600-mesh basalt powder requires much more than simple crushing. The target particle size is approximately 23 microns, and a narrow particle size distribution is essential for uniform dispersion in rubber compounds. Basalt is abrasive because of its high content of hard minerals such as pyroxene and plagioclase. This abrasiveness can cause rapid wear in conventional mills, leading to contamination and unscheduled downtime. Therefore, the grinding system must combine high grinding force, wear-resistant materials, precise classification, and advanced process control. Zenith has developed a family of grinding mills that meet these demands while maintaining high energy efficiency and low operating costs.
Basalt powder is valued in rubber formulation because it can enhance mechanical properties such as abrasion resistance, tear strength, and dimensional stability. Unlike carbon black, basalt filler has a natural light color, which allows manufacturers to produce colored rubber products. Its high hardness and low thermal expansion reduce deformation and improve the service life of rubber parts. In addition, basalt is chemically inert, so it does not react with rubber additives or degrade under harsh environmental conditions. When ground to 600 mesh, the powder has a high surface area and can form a strong physical bond with the rubber polymer, contributing to better reinforcement.
Basalt grinding to 600 mesh presents several technical challenges. The first is energy consumption. Reducing hard basalt to fine particles requires a significant amount of energy, and inefficient machines can make the operation uneconomical. The second challenge is wear. The mineral components of basalt are highly abrasive, so the grinding rollers, table, and classifier must be made of high-chrome or composite wear-resistant materials. The third challenge is classification. To meet rubber filler specifications, the final product must not contain oversize particles. Dynamic classifiers with variable-speed drives are necessary to produce a consistent 600-mesh product with a controlled D97 value. Finally, environmental regulations in Algeria require low dust emission and noise levels, which means the mill must include a well-designed air circulation and dust collection system.
Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. The company specializes in the research, development, and production of industrial powder grinding equipment and related devices. The main product range includes the MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. With continuous innovation and extensive application experience, Zenith offers reliable solutions for grinding hard minerals such as basalt in Algeria and around the world.

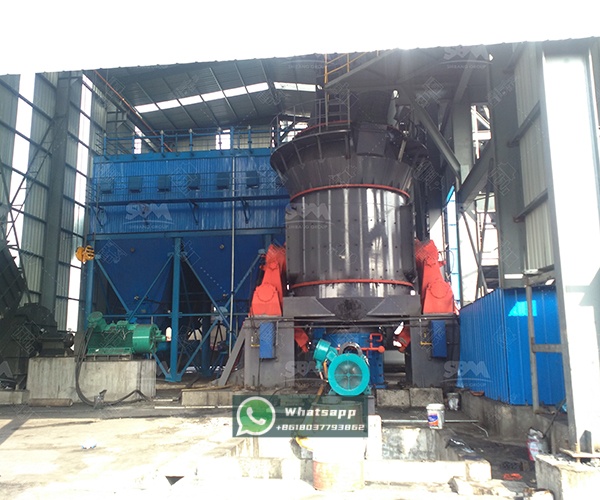

For a 600-mesh basalt grinding project in the rubber filler industry, the Zenith LM Vertical Fine-powder Mill Series is a highly suitable choice. This series integrates five functions: crushing, grinding, powder selection, drying, and material conveying. It is designed to produce fine powders in the range of 325 to 600 mesh, which matches the requirement for rubber fillers. The vertical mill has a compact layout, occupies less floor space, and consumes less energy than a conventional grinding system. It also uses a highly efficient dynamic classifier, ensuring stable fineness and sharp particle size distribution. The following table lists the main technical parameters of the recommended models.
| Model | Plate Diameter (mm) | Output Fineness (D97) | Capacity (t/h) | Main Motor Power (kW) |
|---|---|---|---|---|
| LM130X-GX | 1300 | 325-600 mesh | 4-12 | 220 |
| LM220X-GX | 2200 | 325-600 mesh | 15-30 | 560 |
The LM130X-GX is ideal for small and medium-sized production lines, offering a capacity of 4 to 12 tons per hour. For larger operations, the LM220X-GX can produce 15 to 30 tons per hour, making it suitable for industrial-scale rubber filler plants. Both models are equipped with wear-resistant grinding components and a PLC-based control system for easy operation and monitoring. In the context of Algeria, these machines can handle the abrasive nature of local basalt while delivering a stable 600-mesh product.
Another excellent option for rubber filler producers is the Zenith XZM Ultrafine Grinding Mill. This mill is widely used for superfine powder production and can achieve a final product size from 325 to 2500 mesh. It has a maximum feed size of 20 mm and is designed for soft to medium-hard materials; with suitable configuration and proper maintenance, it can also process basalt. The XZM series features a compact structure, low energy consumption, and easy fineness adjustment. It is particularly attractive for projects where the same machine must produce multiple filler grades for different applications. The following table gives the technical parameters of the XZM series.
| Model | Working Diameter (mm) | Max Feed Size (mm) | Final Size (mesh) | Output (kg/h) | Main Motor Power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 | 315 |
The XZM221 can produce from 500 to 4500 kilograms per hour, which is suitable for a pilot or small commercial plant. The larger XZM268 has an output of 5000 to 25000 kilograms per hour, meeting the needs of a large-scale rubber filler plant. The ultrafine classifier in XZM ensures that the basalt powder is consistently below the target size, minimizing oversize particles and maximizing product quality.
In a typical basalt grinding plant in Algeria, the process starts with a primary jaw crusher that reduces run-of-mine basalt to a size below 30 mm. The crushed basalt is then conveyed to the mill feed bin. A vibrating feeder controls the feed rate into the grinding mill. Inside the LM Vertical Fine-powder Mill, the material is ground between rollers and a rotating grinding table. Hot air or ambient air uplifts the ground powder to the dynamic classifier. Coarse particles return to the grinding table, while fine particles pass through the classifier and are collected by a bag filter. The collected 600-mesh basalt powder is then transported to a silo and packed for dispatch to rubber manufacturers. This integrated process reduces material handling, minimizes dust emissions, and ensures a stable final product.
High production efficiency: The LM vertical mill and XZM ultrafine mill are designed for continuous operation with high availability, ensuring that manufacturers can meet growing demand.
Energy savings: The vertical grinding principle is more energy efficient than ball milling, reducing the cost per ton of finished powder.
Eco-friendly operation: The enclosed grinding system and bag filter prevent dust leakage, helping plants comply with Algerian environmental standards.
Easy maintenance: Quick access to wear parts and centralized lubrication reduce downtime and maintenance costs.
Local resource utilization: Using Algerian basalt for rubber filler reduces the need for imported fillers and strengthens the national economy.
Choosing the right basalt grinding mill is critical for producing high-quality 600-mesh rubber filler in Algeria. Zenith’s LM Vertical Fine-powder Mill Series and XZM Ultrafine Grinding Mill provide advanced grinding solutions with stable fineness, high capacity, and low operating costs. With years of expertise in ore grinding equipment and ultra-fine powder technology, Shanghai Zenith Machinery Co., Ltd. is well positioned to support Algerian manufacturers. The availability of local basalt resources combined with reliable Zenith equipment offers a powerful opportunity for the country to develop a self-sufficient rubber filler industry and deliver premium products to domestic and international markets.
