The United Arab Emirates (UAE) has witnessed rapid growth in its construction and ceramics sectors over the past decade. With increasing demand for high-quality ceramic tiles, local producers have been investing in advanced material processing technologies. Among the key raw materials for ceramic and tile production is zeolite—a naturally occurring aluminosilicate mineral known for its porous structure and absorption properties. To ensure optimal quality of ceramic tiles, the zeolite must be ground into fine powder with uniform particle size distribution. This is where a reliable zeolite grinding mill becomes essential.
Shanghai Zenith Machinery Co., Ltd., a leading manufacturer of industrial grinding equipment based in China, offers tailored solutions for zeolite processing and tile production. The company’s advanced grinding mills have been successfully applied in various mineral industries and are known for their high efficiency, energy savings, and durability. In the context of UAE tile manufacturing with a target production capacity of 10–20 tons per hour (tph), Zenith’s grinding mills—such as the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill—stand out as highly efficient choices.
In modern ceramic and tile production, zeolite is used as both a structural and functional additive. It enhances the physical strength of tiles, reduces firing temperature, and improves surface gloss. The fine grinding of zeolite ensures its particles are evenly distributed throughout the tile matrix, which directly impacts structural integrity and aesthetics. The typical target fineness for zeolite powder used in ceramic applications ranges from 45 to 325 mesh, depending on the product grade and production process.
To achieve this specific fineness efficiently while maintaining stable production of 10–20 tph, a high-performance grinding machine is necessary. This requires equipment that combines consistent output, precise control, energy efficiency, and low operational costs—qualities embedded in Zenith’s product line.
When choosing a grinding mill for zeolite processing, manufacturers must evaluate several factors such as production capacity, feed size, product fineness, energy consumption, and environmental impact. In UAE’s climate and industrial environment, the following factors are particularly important:
Based on production requirements of 10–20 tph and desired fineness for tile-grade zeolite, Shanghai Zenith Machinery Co., Ltd. recommends the following equipment options:

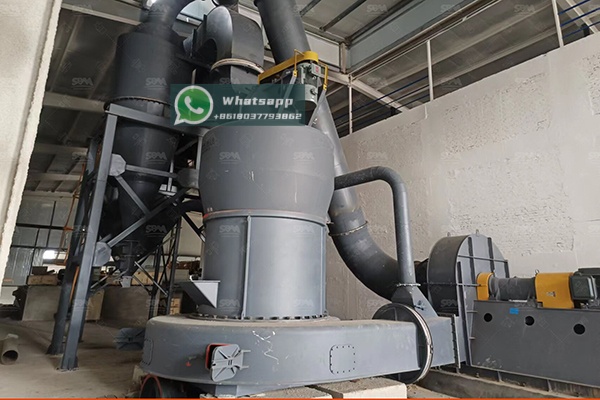

The MTW Trapezium Grinding Mill is ideal for medium to large-scale zeolite grinding applications. It features advanced technology, a unique trapezoidal roller and ring design, and an efficient internal air circulation system. This ensures even particle size distribution and high output rates suitable for ceramic industry applications in the UAE.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW110Z | <30 | 1.6–0.045 | 3–10 | 55 | 55 |
| MTW138Z | <35 | 1.6–0.045 | 6–17 | 90 | 110 |
| MTW175G | <40 | 1.6–0.045 | 9.5–25 | 160 | 200 |
The MTW Trapezium series offers a suitable range that can easily meet 10–20 tph throughput. Its integrated dust collector and low-noise design make it suitable for installation in environmentally regulated regions such as the UAE. Additionally, the optimized bevel gear design enhances transmission efficiency, reducing maintenance frequency and operational costs.
For projects requiring integrated grinding and drying functions, the LM Vertical Grinding Mill is another ideal solution. This model combines crushing, grinding, powder selection, drying, and conveying in one unit, reducing plant footprint and simplifying production lines. The LM Vertical Mill operates efficiently under varied material conditions, guaranteeing stable product quality.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10–28 | 170–40 | <38 | 200 |
| LM190K | 1900 | 23–68 | 170–40 | <45 | 500 |
The LM130K model fits perfectly within the target 10–20 tph production capacity for tile-grade zeolite. Its integrated system reduces dust emissions and overall energy consumption, making it aligned with the sustainability standards in UAE’s industrial sector. The vertical structure also minimizes material handling time, thus improving productivity per square meter of plant area.
Both the MTW and LM series grinding mills provide stable output and uniform particle sizes, which are crucial for consistent tile quality. Field data and case studies have shown that when producing zeolite powder for tile manufacturing:
These features align with the local industry’s push towards energy-efficient and automated solutions. In addition, both models can be equipped with automatic lubrication systems and intelligent control panels for continuous monitoring.

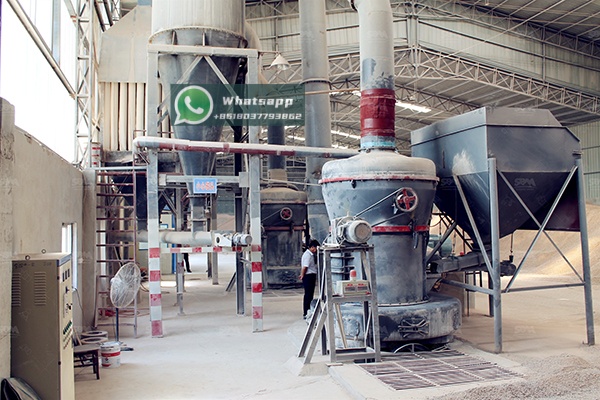

When setting up a 10–20 tph zeolite grinding line in the UAE, plant designers can integrate Zenith’s grinding systems within broader tile manufacturing processes. A typical process includes zeolite crushing, grinding, classification, storage, and dosing into the ceramic batch. By using the LM Vertical Mill or MTW Trapezium Mill, producers can reduce equipment costs by eliminating external classifiers and dryers.
Zenith’s engineering team provides end-to-end project services—from feasibility study and plant design to onsite installation and commissioning. Combined with local after-sales support and remote monitoring solutions, these grinding mills ensure reliable 24/7 operation even in demanding industrial conditions.
The demand for high-quality ceramic and porcelain tiles in the UAE continues to rise, and with it, the need for efficient raw material processing technologies. Zeolite, as a critical material in tile formulation, requires precision grinding and classification to ensure product consistency and durability. Shanghai Zenith Machinery Co., Ltd. provides fully integrated, energy-efficient grinding solutions tailored to the UAE’s industrial environment. The MTW Trapezium Grinding Mill and LM Vertical Grinding Mill both offer the ideal performance range for 10–20 tph tile production lines.
Whether upgrading an existing plant or setting up a new production facility, adopting Zenith’s advanced grinding technology ensures higher production efficiency, reduced operational costs, and enhanced product quality—helping UAE tile manufacturers maintain competitiveness and align with the country’s sustainability vision.
Shanghai Zenith Machinery Co., Ltd.—Your trusted partner in grinding technology for the ceramics and construction industries.
