In the construction materials industry, basalt has become a crucial raw material due to its excellent durability, chemical stability, and compression strength. In Syria, the tile industry has increasingly adopted basalt as a key material for manufacturing high-quality floor and wall tiles. However, to achieve superior texture and smoothness in final tile products, basalt must be ground to an ultrafine powder — often as fine as 1000 mesh. This requires advanced grinding equipment with high precision, stability, and efficiency. Shanghai Zenith Machinery Co., Ltd., an industry-leading manufacturer of grinding mills in China, offers reliable solutions to meet this exact requirement.
Shanghai Zenith Machinery Co., Ltd. is an internationally recognized enterprise specializing in research, development, and production of industrial powder grinding equipment. With decades of experience, Zenith has played a leading role in the field of ultra-fine grinding, offering advanced solutions for materials such as basalt, limestone, clay, and other mineral ores. The company’s product line includes a wide range of mills: MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill, among others.
Basalt possesses excellent hardness and toughness, characteristics that make it resistant to wear but also difficult to grind. When used as a raw material for tile manufacturing, basalt must be processed into powder fine enough to ensure uniform distribution, improved bonding with clay materials, and smoother sintering at high temperatures. Typically, the target fineness for tile-grade basalt powder is between 800 and 1000 mesh. Achieving such fineness requires not only precision grinding but also high mechanical durability and efficient air classification to minimize energy consumption.
Furthermore, Syria’s growing tile production industry demands cost-effective, stable equipment that can operate under varying environmental conditions. This is where Shanghai Zenith’s advanced grinding mills, such as the XZM Ultrafine Grinding Mill and LUM Ultrafine Vertical Mill, offer unparalleled advantages.
After analyzing production needs for 1000 mesh basalt powder in tile applications, we recommend two of Shanghai Zenith’s top-performing solutions: the XZM Ultrafine Grinding Mill and the LUM Ultrafine Vertical Mill. Both are designed for producing superfine powder with exceptional uniformity and energy efficiency, but each suits different operational preferences.

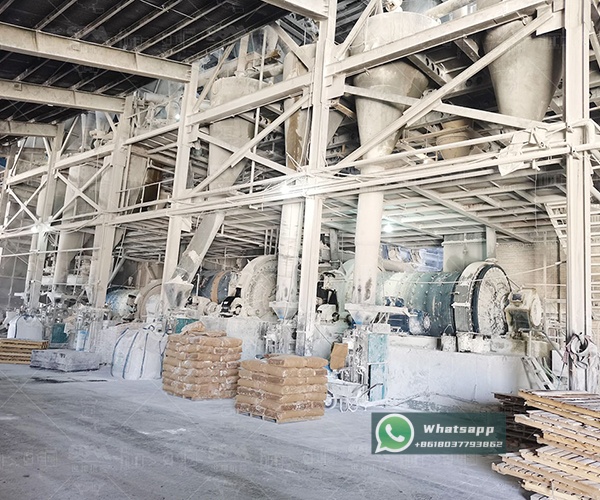

The XZM Ultrafine Grinding Mill is engineered for processing materials into superfine powders ranging from 325 to 2500 mesh. It is particularly suitable for medium-hard materials like basalt. The mill’s multi-ring rollers apply strong centrifugal force, allowing the materials to be ground to sub-micron fineness while minimizing over-grinding. An integrated classifier ensures the final powders meet precise size distribution targets—an essential factor for high-quality tile glaze and body formulation.
| Model | Working Diameter (mm) | Max Feed Size (mm) | Final Size (mesh) | Output (kg/h) | Main Motor Power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325–2500 | 500–4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325–2500 | 5000–25000 | 315 |
For a 1000-mesh basalt powder production line in Syria, the XZM268 model is highly suitable, offering efficient throughput while maintaining excellent particle uniformity. The lower vibration and smart control design reduce maintenance costs and ensure smooth operation even in dusty environments.
For manufacturers seeking a high-end integrated grinding solution, the LUM Ultrafine Vertical Mill stands out as an ideal choice. It combines grinding, drying, classifying, and conveying in one compact structure, reducing both floor space and energy consumption. The unique roller grinding principle ensures minimal metallic pollution and stable particle formation, which is vital in producing aesthetic and durable ceramic tiles.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220–250 | 1.6–11.5 | 5–30 |
| LUM1632 | 280–315 | 2.0–13.5 | 5–30 |
| LUM1836 | 355–400 | 2.3–15 | 5–30 |
The LUM1836 model is particularly well-suited for high-end tile production lines requiring continuous operation and consistent product fineness. Its intelligent control system automatically adjusts grinding pressure and airflow to ensure steady output quality, reducing manual intervention and human error.

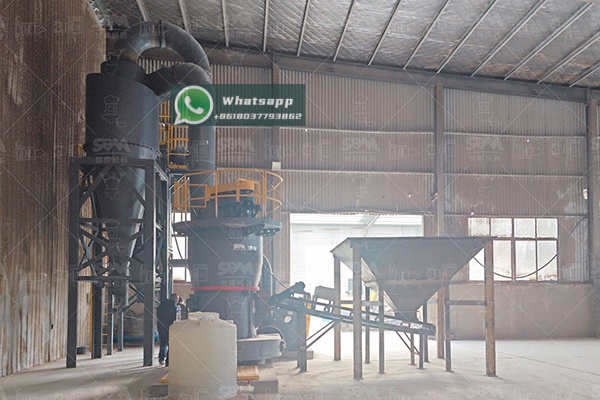

The process begins with coarse basalt crushing using a jaw crusher or impact crusher to reduce particle size below 25 mm. The pre-crushed material is then conveyed to a storage hopper and fed uniformly into the grinding mill. Inside the mill, grinding rollers apply pressure on the rotating table, and a dynamic classifier ensures that only particles under the target sieve pass into the cyclone collector. Oversized particles are automatically recirculated for further grinding.
For producing 1000-mesh basalt powder, humidity must be strictly controlled under 6% to achieve stable air separation efficiency. Both XZM and LUM systems allow integrated hot air drying, which is particularly useful in Syria’s coastal areas where raw basalt may contain residual moisture from storage. The resulting powder is collected via pulse-dust filters, guaranteeing precise dust control and environmental compliance with industrial safety regulations.
In recent years, Syria’s reconstruction and infrastructure development have greatly increased demand for locally sourced building materials, including tiles. By investing in a basalt ultrafine grinding plant, Syrian manufacturers can reduce dependence on imported ceramic base materials while enhancing local employment opportunities. Using cost-efficient and high-performing mills like those from Shanghai Zenith ensures both quality and productivity—cornerstones of sustainable industrial growth.
Basalt grinding to 1000 mesh for tile production is a technically demanding process that requires robust and precise equipment. Shanghai Zenith Machinery Co., Ltd. provides the expertise, advanced technology, and equipment reliability needed to support this growing sector in Syria. Whether through the versatile XZM Ultrafine Grinding Mill for flexible powder grades or the intelligent LUM Ultrafine Vertical Mill for integrated continuous operations, Zenith stands as a trusted partner for the region’s tile manufacturers.
For more details or to design a customized production line for basalt-based tile powder in Syria, please contact Shanghai Zenith Machinery Co., Ltd. Our engineering team will assist in developing optimized solutions aligned with local production conditions and technical requirements.
