Bentonite is an essential clay mineral widely utilized in casting sand applications for the foundry industry. In Thailand, the demand for high-quality casting sand continues to grow alongside the country’s expanding automotive and machinery manufacturing sectors. Among the critical steps in producing qualified casting sand, the grinding process of bentonite into fine powders—particularly 325 mesh—is of utmost importance. The performance of casting sand in mold preparation, metal quality, and surface finishing largely depends on the quality of this finely ground bentonite powder.
Shanghai Zenith Machinery Co., Ltd., a leading manufacturer of industrial grinding equipment in China, has been at the forefront of technology in ultra-fine and precision grinding. With a wide range of products—from vertical roller mills to trapezium mills and ultrafine grinders—Zenith provides comprehensive solutions for bentonite grinding projects around the world, including Thailand.
Bentonite plays a double role in the molding sand system—it acts both as a binding agent and as a permeability controller. When mixed with silica sand, bentonite imparts plasticity, cohesiveness, and wet strength to the mixture, making it easier to shape into molds. The finer the bentonite powder, the better its distribution and coating ability over sand particles, which leads to improved mold quality and better metal surface finishing.
For Thai foundries focusing on steel, iron, or aluminum castings, achieving uniform bentonite particle size at around 325 mesh ensures high performance in terms of sand strength, collapsibility, and reusability. Therefore, efficient grinding mill technology becomes a fundamental factor in improving casting production efficiency and reducing process costs.
Natural bentonite deposits vary in composition, with the main components being montmorillonite, quartz, feldspar, and trace minerals. Montmorillonite, the active component, determines the swelling and bonding capabilities of the bentonite. However, raw bentonite mineral is relatively coarse and requires fine grinding to unleash its full binding potential.
For industrial casting applications, the typical target fineness ranges between 200 and 400 mesh. A 325-mesh specification represents the ideal balance between active clay exposure and process efficiency. To reach this fineness economically, mills with stable operational efficiency, precise control of particle distribution, and high wear resistance are required. Shanghai Zenith’s vertical and trapezium grinding series are designed to meet these exact needs.
Based on our experience in Thailand’s mineral processing and powder applications, two models stand out for bentonite grinding—LUM Ultrafine Vertical Mill and MTW Trapezium Grinding Mill. Both are mature technologies that integrate fine powder generation, classification, drying, and conveying within a single system. Below we elaborate on their features and performance in bentonite processing.
The LUM series ultrafine vertical mill from Shanghai Zenith is a high-end grinding solution for achieving ultra-fine products with precision. The LUM mill integrates advanced separator technology, ensuring efficient particle classification and narrow size distribution. For bentonite grinding to 325 mesh, the LUM mill achieves stable performance with low energy consumption, precise moisture control, and minimal metal contamination.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
For bentonite casting sand, the LUM1632 model provides an optimal production range suitable for medium to large Thai foundries. Its integrated grinding and classification systems maintain consistent powder quality, critical for maintaining mold stability and metal surface smoothness.

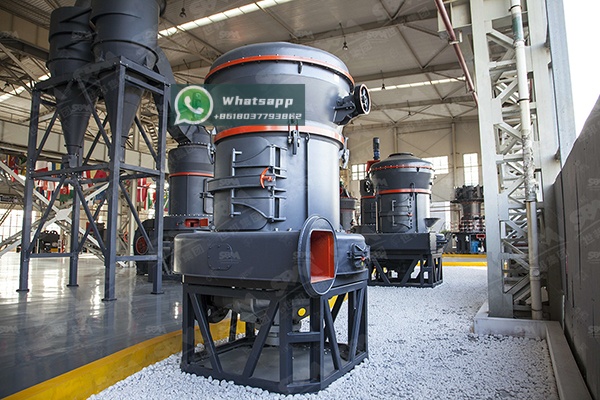

The MTW Trapezium Mill represents Zenith’s dedication to energy efficiency, structural durability, and user-friendly operation. Designed with European-style trapezium working surfaces and curved blade technology, it reduces air resistance and enhances grinding precision, making it ideal for producing 325-mesh bentonite powder efficiently.
| Model | Max Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW110Z | <30 | 1.6-0.045 | 3-10 | 55 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 | 110 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 | 200 |
For mid-scale bentonite plants in Thailand, the MTW138Z model offers a flexible capacity range and high precision output. The maintenance cycles are extended due to improved wear resistance, while the environmentally friendly dust collection design meets Thai environmental regulations related to industrial emissions.
To maximize efficiency, Shanghai Zenith offers full-process solutions from raw bentonite feeding to 325-mesh finished product packaging. The system integration includes a jaw crusher or hammer crusher for pre-crushing, followed by elevator feeding into the grinding mill. The hot air from the vertical mill’s system provides in-situ drying for moisture control. The finished powder is classified automatically and collected through a pulse dust collector system to ensure zero environmental release.
For bentonite applications in casting sand, special attention is paid to powder consistency. A controlled moisture content of 8–10% and narrow fineness distribution ensure proper green sand bonding behavior and dimensional stability during metal pouring. Both the MTW and LUM systems allow real-time adjustments through PLC controls, ensuring predictable output consistency for high-quality casting molds.
Shanghai Zenith Machinery Co., Ltd. has a long history of cooperation with Thai customers in the mining and materials processing industries. For bentonite grinding for casting sand, Zenith provides turnkey project planning, plant layout design, equipment installation supervision, and after-sales technical support. Experienced local partners ensure that spare parts and service networks remain accessible, minimizing downtime and ensuring operations continue smoothly.
The casting sand industry in Thailand stands to benefit significantly from the adoption of modern bentonite grinding technology. With increasing demand for precision casting in automotive and engineering sectors, achieving stable 325-mesh bentonite powder at a competitive cost is essential. Shanghai Zenith’s LUM Ultrafine Vertical Mill and MTW Trapezium Grinding Mill represent reliable, efficient, and modern solutions for this application. Backed by global experience and local Thai support, Zenith ensures long-term productivity and consistent casting quality for every foundry operation.
